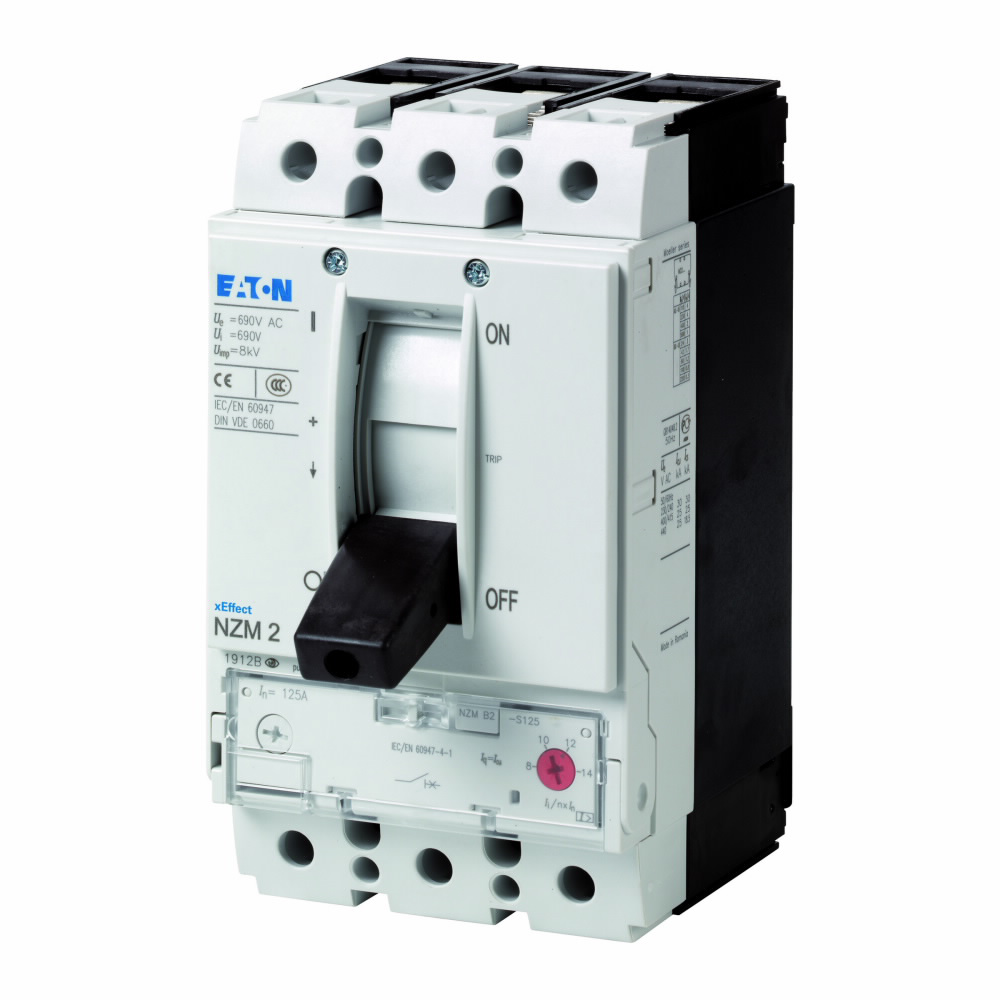

Eaton 107658

Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Eaton 107658 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
General
- Certifications
- CSA (File No. 22086)
- Compliances
- RoHS conform
- EAN
- 4015081073245
- Model Code
- NZMB2-S33-BT-CNA
- Product Height
- 195 mm
- Product Length/Depth
- 149 mm
- Product Weight
- 2.345 kg
- Product Width
- 105 mm
Specifications
- 10.10 Temperature rise
- The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
- 10.11 Short-circuit rating
- Is the panel builder's responsibility. The specifications for the switchgear must be observed.
- 10.12 Electromagnetic compatibility
- Is the panel builder's responsibility. The specifications for the switchgear must be observed.
- 10.13 Mechanical function
- The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
- 10.2.2 Corrosion resistance
- Meets the product standard's requirements.
- 10.2.3.1 Verification of thermal stability of enclosures
- Meets the product standard's requirements.
- 10.2.3.2 Verification of resistance of insulating materials to normal heat
- Meets the product standard's requirements.
- 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
- Meets the product standard's requirements.
- 10.2.4 Resistance to ultra-violet (UV) radiation
- Meets the product standard's requirements.
- 10.2.5 Lifting
- Does not apply, since the entire switchgear needs to be evaluated.
- 10.2.6 Mechanical impact
- Does not apply, since the entire switchgear needs to be evaluated.
- 10.2.7 Inscriptions
- Meets the product standard's requirements.
- 10.3 Degree of protection of assemblies
- Does not apply, since the entire switchgear needs to be evaluated.
- 10.4 Clearances and creepage distances
- Meets the product standard's requirements.
- 10.5 Protection against electric shock
- Does not apply, since the entire switchgear needs to be evaluated.
- 10.6 Incorporation of switching devices and components
- Does not apply, since the entire switchgear needs to be evaluated.
- 10.7 Internal electrical circuits and connections
- Is the panel builder's responsibility.
- 10.8 Connections for external conductors
- Is the panel builder's responsibility.
- 10.9.2 Power-frequency electric strength
- Is the panel builder's responsibility.
- 10.9.3 Impulse withstand voltage
- Is the panel builder's responsibility.
- 10.9.4 Testing of enclosures made of insulating material
- Is the panel builder's responsibility.
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Ambient storage temperature - max
- 70 °C
- Ambient storage temperature - min
- 40 °C
- Amperage Rating
- 33 A
- Application
- Branch circuits, feeder circuits
- Climatic proofing
- Damp heat, cyclic, to IEC 60068-2-30
- Degree of protection
- IP20
- Degree of protection (IP), front side
- IP66 (with door coupling rotary handle)
- Degree of protection (terminations)
- IP00 (terminations, phase isolator and strip terminal)
- Direction of incoming supply
- As required
- Electrical connection type of main circuit
- Frame clamp
- Equipment heat dissipation, current-dependent
- 2.55 W
- Features
- Motor drive optional
- Functions
- Short-circuit protection
- Handle type
- Rocker lever
- Instantaneous current setting (Ii) - max
- 14 A
- Instantaneous current setting (Ii) - min
- 8 A
- Isolation
- 500 V AC (between auxiliary contacts and main contacts)
- Lifespan, electrical
- 6500 operations at 415 V AC-3
- Lifespan, mechanical
- 20000 operations
- Mounting Method
- Fixed
- Number of auxiliary contacts (change-over contacts)
- 0
- Number of auxiliary contacts (normally closed contacts)
- 0
- Number of auxiliary contacts (normally open contacts)
- 0
- Number of operations per hour - max
- 120
- Number of poles
- Three-pole
- Overload current setting (Ir) - max
- 0 A
- Overload current setting (Ir) - min
- 0 A
- Overvoltage category
- III
- Pollution degree
- 3
- Position of connection for main current circuit
- Front side
- Protection against direct contact
- Finger and back-of-hand proof to DIN EN 50274/VDE 0106 part 110
- Rated impulse withstand voltage (Uimp) at auxiliary contacts
- 6000 V
- Rated impulse withstand voltage (Uimp) at main contacts
- 8000 V
- Rated insulation voltage (Ui)
- 690 V
- Rated operating voltage Ue (UL) - max
- 600Y/347 V, 480 V
- Rated operational current for specified heat dissipation (In)
- 33 A
- Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 400/415 V, 50/60 Hz
- 25 kA
- Release system
- Thermomagnetic release
- Shock resistance
- 20 g (half-sinusoidal shock 20 ms)
- Short-circuit release non-delayed setting - max
- 462 A
- Short-circuit release non-delayed setting - min
- 264 A
- Short-circuit total breaktime
- < 10 ms
- Short delay current setting (Isd) - max
- 0 A
- Short delay current setting (Isd) - min
- 0 A
- Special features
- Rated current = rated uninterrupted current: 33 A This circuit-breaker is only allowed to be used for UL/CSA applications. Motor protection in conjunction with contactor and overload relay With short-circuit release Without overload release Ir
- Standard terminals
- Box terminal
- Terminal capacity (aluminum solid conductor/cable)
- 16 mm² (1x) at tunnel terminal
- Terminal capacity (control cable)
- 14 mm² - 18 mm² (1x)
- Terminal capacity (copper busbar)
- Min. 16 mm x 5 mm direct at switch rear-side connection
- Terminal capacity (copper solid conductor/cable)
- 16 mm² (1x) at tunnel terminal
- Terminal capacity (copper stranded conductor/cable)
- 4 mm² - 350 mm² (1x) at tunnel terminal
- Terminal capacity (copper strip)
- Max. 10 segments of 16 mm x 0.8 mm at box terminal
- Type
- Circuit breaker
- Utilization category
- A (IEC/EN 60947-2)
- Voltage rating
- 440 V - 440 V
