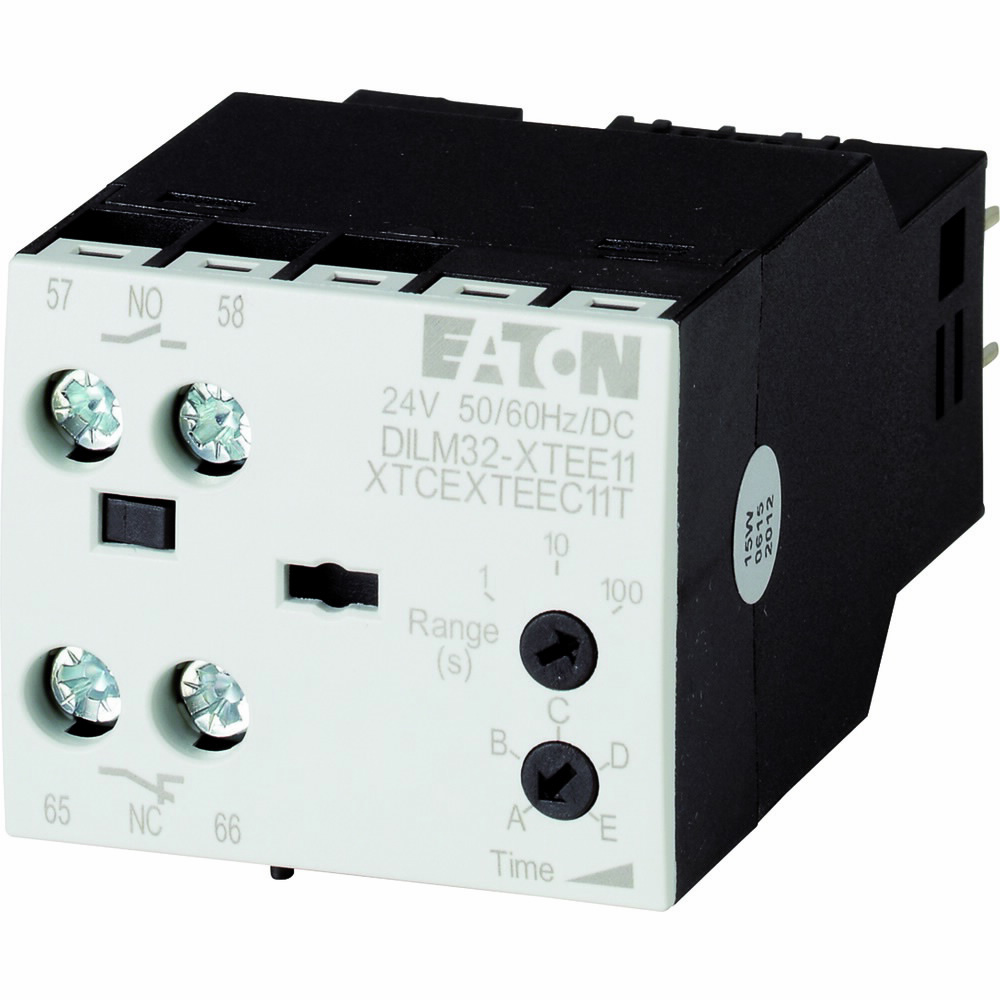

Eaton 104945

General

• Catalog Notes
  • Cannot be combined with top mounting auxiliary contacts
• Certifications
  • VDE 0660
• EAN
  • 4015081048038
• Model Code
  • DILM32-XTED11-10(RAC240)
• Product Height
  • 38 mm
• Product Length/Depth
  • 86 mm
• Product Weight
  • .073 kg
• Product Width
  • 45 mm

Specifications

• 10.10 Temperature rise
  • The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
• 10.11 Short-circuit rating
  • Is the panel builder's responsibility. The specifications for the switchgear must be observed.
• 10.12 Electromagnetic compatibility
  • Is the panel builder's responsibility. The specifications for the switchgear must be observed.
• 10.13 Mechanical function
  • The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
• 10.2.2 Corrosion resistance
  • Meets the product standard's requirements.
• 10.2.3.2 Verification of resistance of insulating materials to normal heat
  • Meets the product standard's requirements.
• 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
  • Meets the product standard's requirements.
• 10.2.4 Resistance to ultra-violet (UV) radiation
  • Meets the product standard's requirements.
• 10.2.5 Lifting
  • Does not apply, since the entire switchgear needs to be evaluated.
• 10.2.6 Mechanical impact
  • Does not apply, since the entire switchgear needs to be evaluated.
• 10.2.7 Inscriptions
  • Meets the product standard's requirements.
• 10.3 Degree of protection of assemblies
  • Does not apply, since the entire switchgear needs to be evaluated.
• 10.4 Clearances and creepage distances
  • Meets the product standard's requirements.
• 10.5 Protection against electric shock
  • Does not apply, since the entire switchgear needs to be evaluated.
• 10.6 Incorporation of switching devices and components
  • Does not apply, since the entire switchgear needs to be evaluated.
• 10.7 Internal electrical circuits and connections
  • Is the panel builder's responsibility.
• 10.8 Connections for external conductors
  • Is the panel builder's responsibility.
• 10.9.2 Power-frequency electric strength
  • Is the panel builder's responsibility.
• 10.9.3 Impulse withstand voltage
  • Is the panel builder's responsibility.
• Ambient operating temperature (enclosed) - max
  • 40 °C
• Ambient operating temperature (enclosed) - min
  • 25 °C
• Ambient operating temperature - max
  • 60 °C
• Ambient operating temperature - min
  • -25 °C
• Ambient storage temperature - max
  • 80 °C
• Ambient storage temperature - min
  • 40 °C
• Climatic proofing
  • Damp heat, cyclic, to IEC 60068-2-30
• Contact changeover time
  • 50 ms
• Conventional thermal current ith of auxiliary contacts (1-pole, open)
  • 4 A
• Degree of protection
  • IP20
• Delay time
  • 50 ms, On-delayed
• Duty factor
  • 100 %
• Equipment heat dissipation, current-dependent Pvid
  • 0 W
• Fitted with:
  • Suppressor circuits
• Heat dissipation capacity Pdiss
  • 0 W
• Heat dissipation per pole, current-dependent Pvid
  • 0 W
• Lifespan, mechanical
  • 3,000,000 Operations (DC operated)
• Mounting position
  • As required (except suspended)
• Number of contacts (change-over contacts)
  • 0
• Number of contacts (normally closed contacts)
  • 1
• Number of contacts (normally open contacts)
  • 1
• Operating frequency
  • 360 mechanical Operations/h
• Operating mode
  • Electronic
• Overvoltage category
  • III
• Pick-up voltage
  • 0.7 - 1.2 V DC x Uc
• Pollution degree
  • 3
• Power consumption, sealing, 50 Hz
  • 2 VA, Coil in a cold state and 1.0 x Us
• Power consumption, sealing, 60 Hz
  • 2 VA, Coil in a cold state and 1.0 x Us
• Power consumption (sealing) at DC
  • 1.8 W
• Product category
  • Accessories
• Protection
  • Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)
• Rated control supply voltage (Us) at AC, 50 Hz - max
  • 240 V
• Rated control supply voltage (Us) at AC, 50 Hz - min
  • 200 V
• Rated control supply voltage (Us) at AC, 60 Hz - max
  • 240 V
• Rated control supply voltage (Us) at AC, 60 Hz - min
  • 200 V
• Rated impulse withstand voltage (Uimp)
  • 4000 V AC
• Rated insulation voltage (Ui)
  • 250 V
• Rated operational current for specified heat dissipation (In)
  • 0 A
• Rated operational current (Ie)
  • 0.1 A at 220 V, DC-13 L/R - 300 ms (with 1 contact in series)
• Rated operational voltage (Ue) - max
  • 250 V
• Recovery time
  • 70 ms (after 100 % time delay)
• Repetition accuracy
  • < 5 % (deviation)
• Safe isolation
  • 250 V AC, Between auxiliary contacts, According to EN 61140
• Screwdriver size
  • 2, Terminal screw, Pozidriv screwdriver
• Screw size
  • M3.5, Terminal screw, Control circuit cables
• Setting time - max
  • 10 s
• Setting time - min
  • .5 s
• Shock resistance
  • 6 g, N/O auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms
• Short-circuit current rating (basic rating)
  • 125 A, max. Fuse, SCCR (UL/CSA)
• Short-circuit current rating (high fault at 480 V)
  • 10/65 kA, CB, SCCR (UL/CSA)
• Short-circuit current rating (high fault at 600 V)
  • 10/100 kA, Fuse, SCCR (UL/CSA)
• Short-circuit protection rating
  • Max. 4 A gG/gL, fuse, Without welding, Auxiliary and control circuits
• Static heat dissipation, non-current-dependent Pvs
  • 1.8 W
• Switch function type
  • Time-delay dropped out
• Switching capacity (auxiliary contacts, general use)
  • 5 A, 24 V DC, (UL/CSA)
• Switching capacity (auxiliary contacts, pilot duty)
  • B300, AC operated (UL/CSA)
• Terminal capacity (flexible with ferrule)
  • 1 x (0.75 - 1.5) mm²
• Terminal capacity (solid)
  • 2 x (0.75 - 1.5) mm²
• Terminal capacity (solid/stranded AWG)
  • 18 - 14
• Used with
  • DILMP20
