Eaton 10316H2188
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

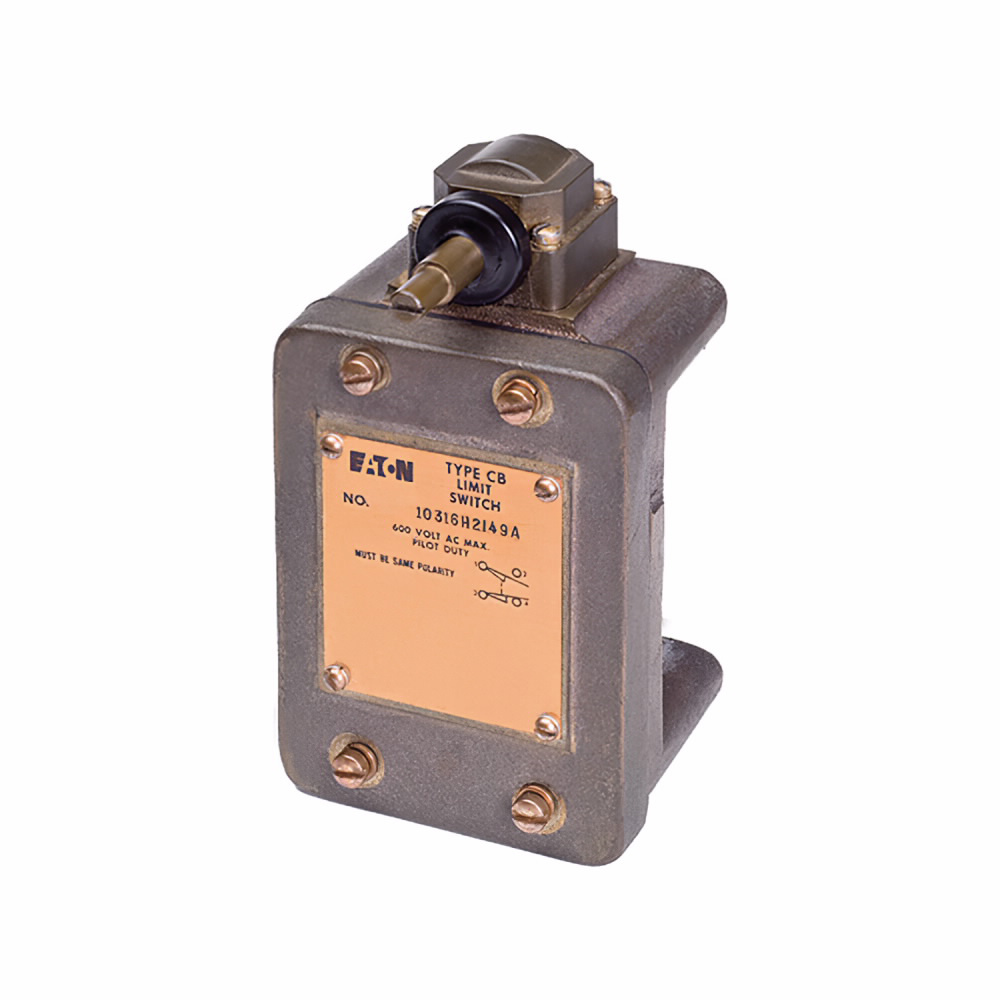

Eaton 10316 hazardous location limit switch, Die Cast Aluminum enclosure, 10A max AC, 0.2A max DC, 1NO-1NC, 10A at 600Vac, 0.2A at 125Vdc, Screw Terminals, Top Pushbutton
Eaton 10316H2188 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
General
- Catalog Notes
- 1N.O.-1N.C. contacts must be same polarity when both circuits are used - 1N.O.-1N.C. contacts have isolated poles and may be used on opposite polarity. Contact factory for availability of CSA & CE approval status.
- Certifications
- UL Listed
- Compliances
- CE Marked
- Product Height
- 5.76 in
- Product Length/Depth
- 3 in
- Product Weight
- 1.6813 lb
- Product Width
- 2.54 in
- UPC
- 782113452180
- Warranty
- 1 year
Specifications
- Connection
- Screw terminal
- Contact configuration
- 1 NO-1 NC
- Contact Rating
- 10A at 600Vac, 0.2A at 125Vdc
- Enclosure material
- Die cast aluminum
- Environmental rating
- NEMA 7 Division I Class I BCD, NEMA 9 Division I Class II EFG, NEMA 1, NEMA 4, NEMA 13
- Maximum AC current
- 10 A
- Maximum DC current
- 0.2 A
- Operating temperature - max
- 200 °F
- Operating temperature - min
- -20 °F
- Switch type
- Top pushbutton
