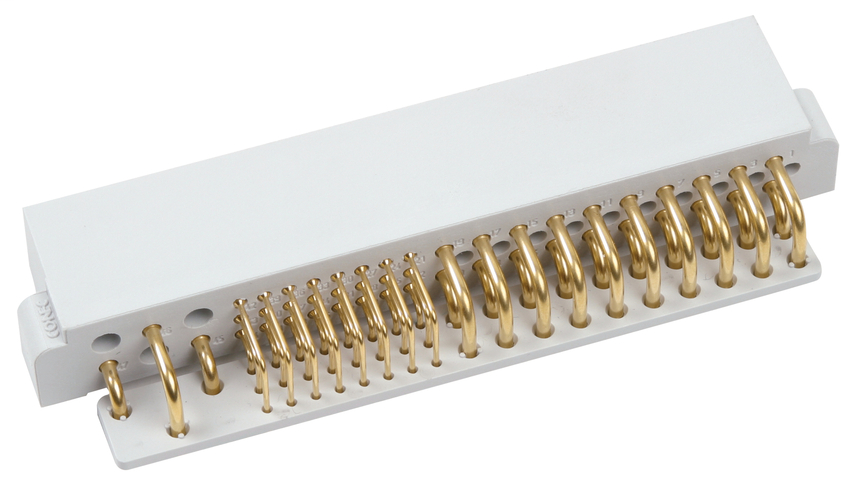

CONEC CPH47W23MARASK9X
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
CompactPCI, Male Connector, 24x Signal+23x Power
CONEC CPH47W23MARASK9X is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Material Data
- Insulator color
- Grey
- Insulator material
- PBT GF UL 94 V-0
- Material power contact
- Copper alloy
- Plating power contact (mating area)
- Gold over nickel
- Plating power contact (termination area)
- Gold over nickel
- Plating signal contact (mating area)
- Gold over nickel
- Plating signal contact (termination area)
- Gold over nickel
- Signal contact material
- Copper alloy
Specifications
- Contact type
- Male Connector
- Size/Number of positions
- 24x Signal+23x Power
- Standard dielectric voltage
- IEC 512-2 Test 3a Methode A
- Termination power contact
- Lötpin gewinkelt gedreht
- Termination signal [e.g. clamp, crimp, solder, SMT]
- Solder pin angled
Technical Data
- Contact resistance standard
- 0,004 Ohm
- Current rating power pos. 1-20
- 28 A
- Current rating power pos. 45-47
- 40 A
- Current rating signal
- 3 A
- Dielectric with standing voltage power pos.1-20
- 1500 V r.m.s.
- Dielectric with standing voltage power pos.45-47
- 3000 V r.m.s.
- Dielectric with standing voltage signal
- 1000 V r.m.s.
- Insulation resistance
- 5 GOhm
- IP rating
- IP 20
- Mating cycles
- 50
- max. working temperature
- +125° C
- min. working temperature
- -55° C
- Power resistance standard
- 0,0007 Ohm
- Quality class
- Quality class 3
- Working voltage power 1-20
- 500 V r.m.s.
- Working voltage power 45-47
- 1000 V r.m.s.
- Working voltage signal
- 48V
