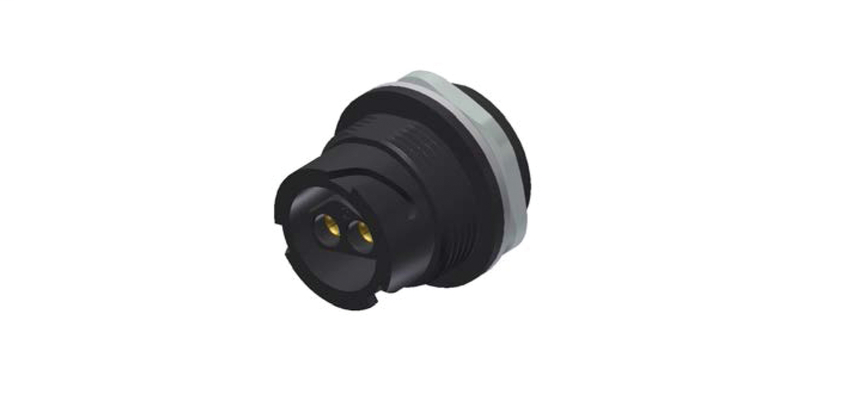

CONEC 17-400133
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
IP67 Power Bayonet, Panel mounted receptacle, Socket, 2-pos., Crimp straight
CONEC 17-400133 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certificates
- Product UL approved [UL File]
- UL-File: E318363
Material Data
- Cable fitting
- Brass
- Coupling ring material
- Metal
- Housing color
- Black
- Housing material
- PBT GF UL 94 V-0
- Insulator color
- Black
- Insulator material
- PA GF, UL 94 V-0
- Material power contact
- Copper alloy
- Plating of coupling ring
- Black
- Plating of housing
- Nickel
- Plating power contact (mating area)
- Gold over nickel
- Plating power contact (termination area)
- Tin plated
Specifications
- Contact type
- Socket
- Locking type
- Bayonet
- Mounting options [e.g. front/back panel mounting etc.]
- Front- or Back panel mounting
- Mounting style
- Through hole
- Product type
- IP67 Power Bayonet
- Size/Number of positions
- 2-pos.
- Special version
- IP67/IP67
- Standard current rating
- IEC 60603-7
- Standard dielectric voltage
- IEC 60603-7
- Standard working voltage
- IEC 60603-7
- Style
- Panel mounted receptacle
- Termination power contact
- Crimp straight
Technical Data
- Current rating power
- 30 A
- IP rating
- IP67 in connected condition
- Mating cycles
- 50
- max. working temperature
- +100° C
- min. working temperature
- -40° C
- Power contact cross section
- AWG 10- 12
- Power resistance standard
- 1 mOhm
- Quality class
- Quality class 3
- Sealing material
- Silikon
- Working voltage power
- 48 V AC/DC
