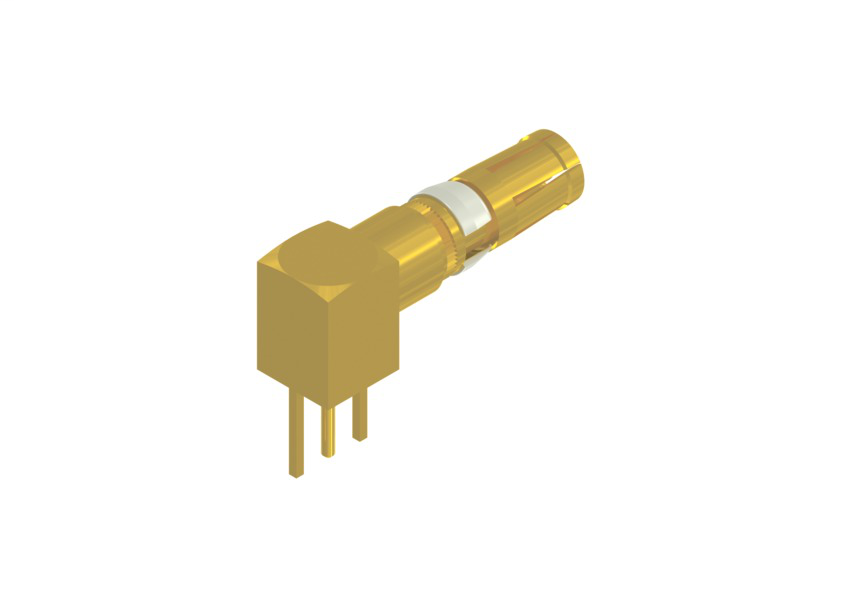

CONEC 132A25019X
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Combination D-SUB, Socket
CONEC 132A25019X is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certificates
- Product CSA approved
- CSA File: LR 115000-1
- Product UL approved [UL File]
- UL-File: E228329
Material Data
- Coaxial contact inner conductor plating mating area
- Gold over nickel
- Coaxial contact material conductor
- Copper Alloy
- Coaxial contact material insulator
- PTFE
- Coaxial contact outer conductor plating mating area
- Gold over nickel
- Coaxial contact outer conductor termiation area
- Gold over nickel
- Plating coaxial contact inner conductor
- Gold over nickel
Specifications
- Contact type
- Socket
- Product type
- Combination D-SUB
- Standard current rating
- IEC 60807-2
- Standard dielectric voltage
- IEC 60807-2
- Standard insertion / extraction force
- IEC 60807-2
- Standard IP rating
- IEC 60807-2
- Standard mating cycles
- IEC 60807-2
- Standard working voltage
- IEC 60807-2
- Termination coax contact
- Solder pin angled 3pin shell size 1-4
Technical Data
- Coaxial resistance standard
- 2,7 mOhm
- Dielectric with standing voltage coaxial
- 750 V
- Extraction force
- 7 N
- Frequency range
- 0- 2 Ghz
- Impedance coax
- 50 Ohm
- Insertion force
- 7 N
- IP rating
- IP 20
- Mating cycles
- 50
- min. working temperature
- -55° C
- Quality class
- Quality class 3
- Working voltage coaxial
- 250 V
