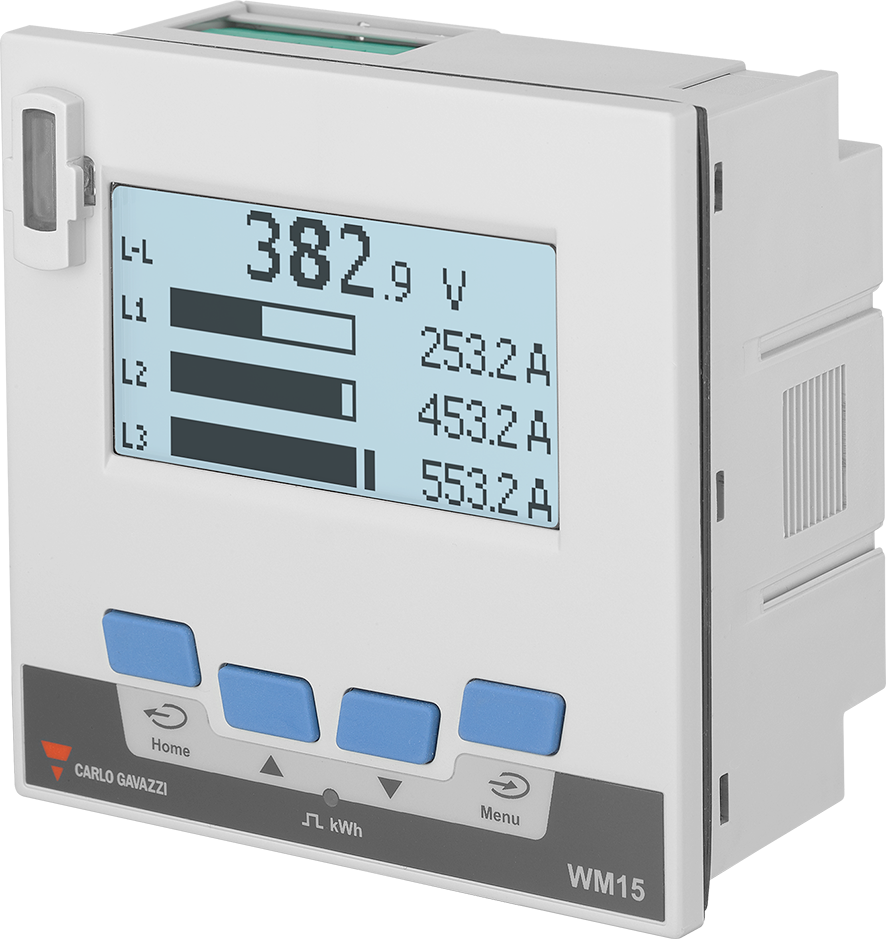

Carlo Gavazzi WM1596AV53XOXX

Specifications

• Approvals, marks, declarations
  • CE (Europe) | cULus (North America)
• Calibrated
  • Yes
• Configuration software
  • UCS desktop (PC) | UCS Mobile (Android APP)
• Current inputs
  • 5 A current transformers A
• Degree of protection (IP)
  • IP51
• Energy accuracy class
  • Class 1 (IEC 62053-21)
• Energy metering
  • Consumption and generation
• Energy type
  • Effective power and blind power
• Frequency
  • Min.50-Max.60
• Main Filter
  • 1-Phase | 2-Phase | 3-Phase | 3-Phase wild-leg
• Max. current (Imax)
  • 6
• Measuring type load profile
  • No
• Model
  • Measurement transformer
• Mounting method
  • Front mounting
• Nominal current (In)
  • 5
• Nominal voltage (Un) L-L
  • Min.208-Max.415
• Nominal voltage (Un) N-L
  • Min.120-Max.240
• Number of positions total (counter)
  • 10
• Pole type
  • Three conductor/four conductor
• Power supply
  • Self power supply
• Product Depth
  • 59
• Product Height
  • 96
• Product Main Family
  • Energy meters and analysers
• Product Main Family Group
  • Panel Mount
• Product Width
  • 96
• Pulse output
  • Electrical
• Pulse rate
  • Min.0.1-Max.1000
• Pulse type
  • S0
• Rail mounting possible
  • No
• Static output
  • Alarm | Pulse | Remote control
• Suitable for
  • Purchase/supply
• Type of indication
  • Digital
• Type of meter
  • Electronic
• Voltage inputs
  • 2-wire, 120 V L-N | 2-wire, 220 V L-N | 2-wire, 230 V L-N | 2-wire, 240 V L-N | 3-wire, 120/240 V | 3-wire, 220/440 V | 3-wire, 240/480 V | 4-wire, 120/208 V | 4-wire, 127/220 V | 4-wire, 220/380 V | 4-wire, 230/400 V | 4-wire, 240/415 V | 3-wire, 240 V L-L | 3-wire, 380 V L-L | 3-wire, 400 V L-L | 3-wire, 415 V L-L | 4-wire delta 120(208) / 240 V
• Wall mounting/direct mounting
  • Yes
• With approval according to UL
  • Yes
• With lock code
  • Yes
