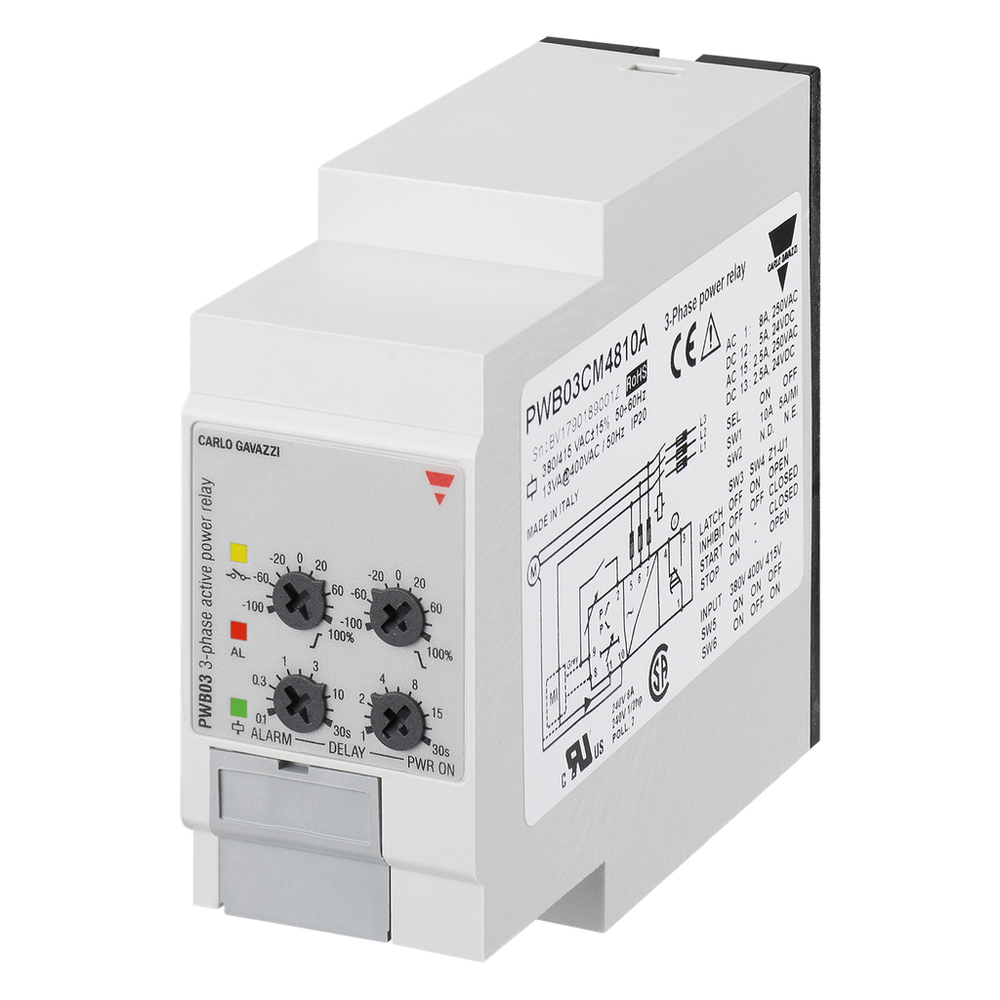

Carlo Gavazzi PWB03CM4810A
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
3-Phase Active Power Direction Monitor Relay - 3-Phase Delta True RMS Active Power Direction Monitoring Relay, Symmetry Load, Direction and Current, 1 SPDT Relay Output, IP20, PLUG-IN mounting, Measuring Range -100 to 100% Active Power, Power Supply 380 to 415Vac, 36x80x94mm housing
Carlo Gavazzi PWB03CM4810A is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- 3-phase voltage range
- 380-480 Vac
- Active power
- Yes
- Depth
- 94
- Height
- 80
- Housing
- Plug-In
- Item Code 1
- MI100 | MI20 | MI5 | MI500
- Mains voltage
- 380-480 V AC
- Max. permitted delay-on energization time
- 30
- Max. permitted off-delay time
- 30
- Measurement current
- Min.0.5-Max.10
- Min. adjustable delay-on energization time
- 1
- Min. adjustable off-delay time
- 1
- Mounting
- Plug-in
- Number of contacts as change-over contact
- 1
- Number of phases
- 3
- Output
- 1 x SPDT change-over contact
- Power factor (cos phi)
- No
- Power function
- Active power | Power direction
- Product Main Family
- Monitoring relays
- Product Main Family Group
- Power
- Rail mounting possible
- No
- Rated control supply voltage Us at AC 50HZ
- Min.323-Max.477.25
- Rated control supply voltage Us at AC 60HZ
- Min.323-Max.477.25
- Rated operation frequency
- Min.45-Max.65
- Rated voltage
- Min.323-Max.477.25
- Setting method through NFC (Near Field Communication)
- No
- Time delay
- Delay on alarm
- Transistor output
- No
- Type of electric connection
- Plug-in connection
- Voltage type for actuating
- AC
- Wall mounting/direct mounting
- No
- Width
- 36
- With approval according to UL
- Yes
- With detachable clamps
- No
