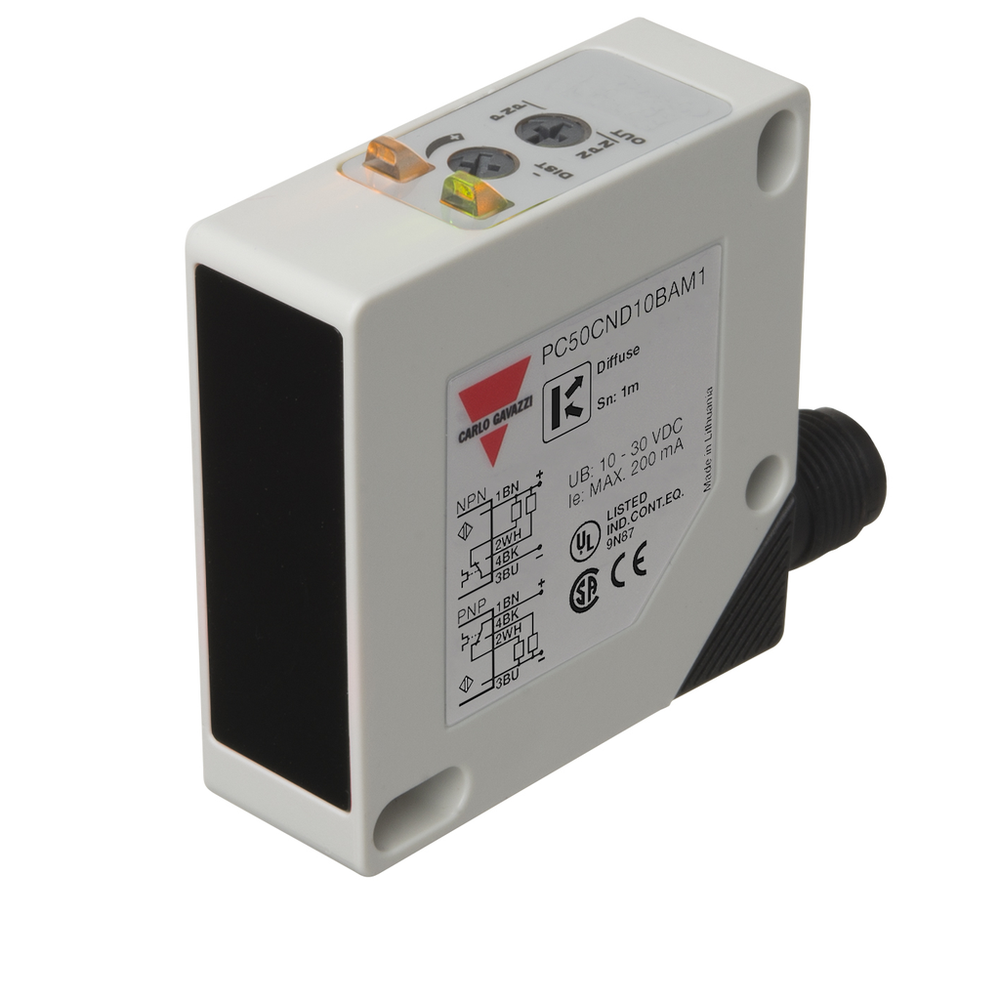

Carlo Gavazzi PC50CNR10BAM1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Retro-reflective Photoelectric Sensor - Retro-reflective Photoelectric Sensor, Range 10000mm, Infrared modulated light 880nm, Power Supply 10-30VDC, PNP/NPN Output, NO and NC, Light and Dark Switching, M12 Plug
Carlo Gavazzi PC50CNR10BAM1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Ambient temperature
- Min.-20-Max.60
- Analogue output 0 mA ... 20 mA
- No
- Analogue output 0 V ... 10 V
- No
- Analogue output -10 V ... +10 V
- No
- Analogue output 4 mA ... 20 mA
- No
- Connection Type
- Connector M12
- Degree of protection
- IP67
- Degree of protection (IP)
- IP67
- Degree of protection (NEMA)
- 1
- ECOLAB approved
- No
- Height
- 50
- Housing Material
- Plastic
- Housing material, specific
- Plastic
- Housing style
- Rectangular
- IO-Link
- No
- Item Code 1
- APC50-1
- Item Code 3
- ERT25 | ERT50 | ER1 | ER100 | ER390 | ER4 | ER4060 | ER420 | ER42182 | ER423 | ER460 | ER483 | ER5060 | ER5080 | ER530 | ER640 | ER665 | ER681 | ER686 | ER689 | ER692 | ER8 | ER840
- Length
- 50
- Light dot size
- 34500
- Material of optical surface
- Plastic
- Min. reflector distance
- 200
- Number of protected semiconductor outputs
- 2
- Number of semiconductor outputs with signalling function
- 2
- Operation agent-safety class
- Safety class 0
- Output current, maximum
- 200
- Output current, maximum at protected output
- 200
- Output function
- Complementary (NO+NC)
- Output type
- PNP/NPN
- Predictive maintenance
- No
- Product Main Family
- Sensors
- Product Main Family Group
- Photoelectric sensors
- Rail mounting possible
- No
- Rated Operetional voltage UB at DC
- Min.10-Max.30
- Rated switching distance
- 10000
- Sensing mode
- Light-/dark switching
- Sensing range, maximum
- 10000
- Setting procedure
- Manual adjustment
- Suitable for safety functions
- No
- Switching frequency
- 500
- Switching voltage of OSSD at state "high"
- 30
- Target included
- No
- Time Delays
- No
- Time of reaction
- 1
- Type of interface for safety communication
- Other
- Type of light
- Infrared light
- Type of safety acc. IEC 61496-1
- 1
- Voltage type
- DC
- Wall mounting/direct mounting
- No
- Wavelength of the sensor
- 880
- Width
- 17
- With approval according to UL
- Yes
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- With monitoring function downstream switching devices
- No
- With other analogue output
- No
- With restart blockage
- No
