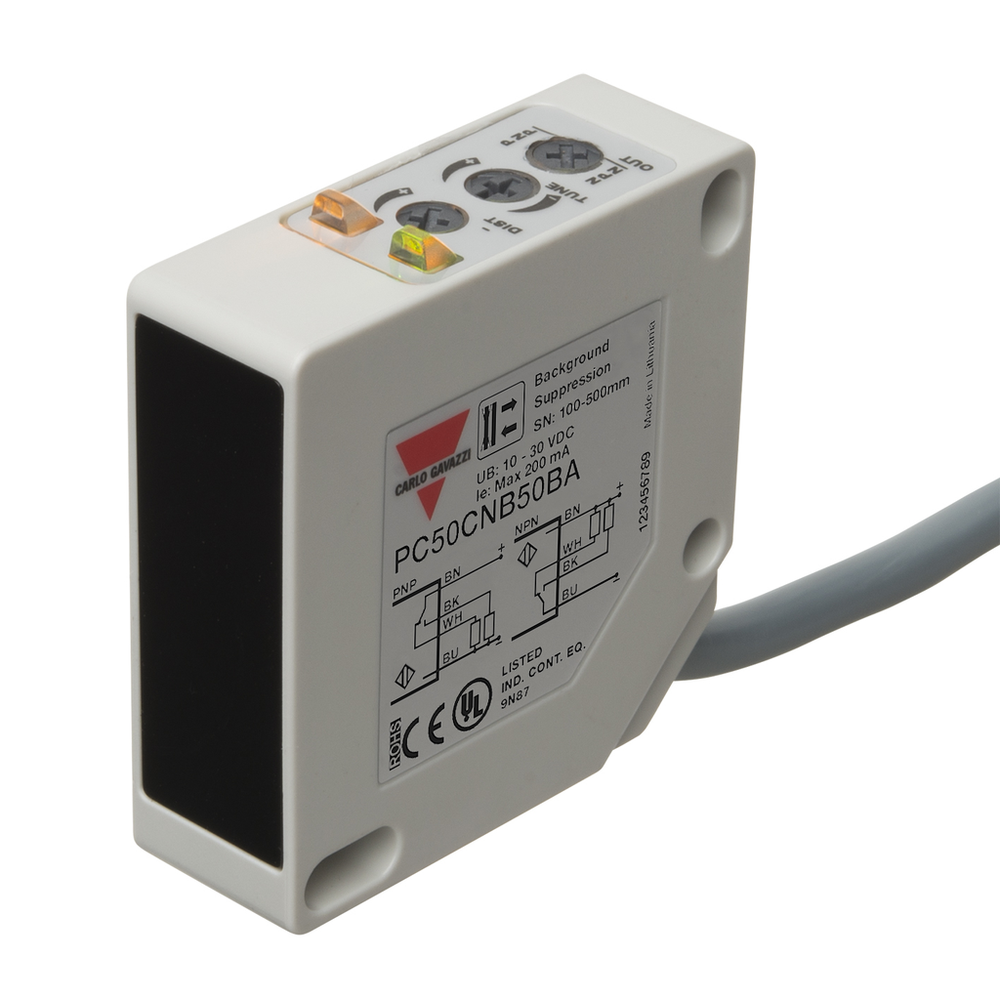

Carlo Gavazzi PC50CNB50BA
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Photoelectric Sensor, Diffuse-reflective, Background Suppression - Diffuse-reflective Photoelectric Sensor with Adjustable Background Suppression, Range: 0-500mm, infrared light 850nm, Power Supply 10-30VDC, PNP/NPN Output, N.O. and N.C., light and dark switching, Cable connection, 17x50x50mm housing, IP67
Carlo Gavazzi PC50CNB50BA is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Adjustable distance
- Min.120-Max.500
- Ambient temperature
- Min.-20-Max.60
- Analogue output 0 mA ... 20 mA
- No
- Analogue output 0 V ... 10 V
- No
- Analogue output -10 V ... +10 V
- No
- Analogue output 4 mA ... 20 mA
- No
- AWG-number
- 22
- Blindzone
- 120
- Cable material
- Polyvinyl chloride (PVC)
- Connection Type
- Cable
- Degree of protection
- IP67
- Degree of protection (IP)
- IP67
- ECOLAB approved
- No
- Height
- 50
- Housing Material
- Plastic
- Housing material, specific
- Plastic
- Housing style
- Rectangular
- IO-Link
- No
- Item Code 1
- APC50-1
- Length
- 50
- Light dot size
- 240
- Material of optical surface
- Plastic
- Number of protected semiconductor outputs
- 2
- Number of semiconductor outputs with signalling function
- 2
- Output current, maximum
- 200
- Output current, maximum at protected output
- 200
- Output function
- Change-over contact (NO/NC)
- Output type
- PNP/NPN
- Product Main Family
- Sensors
- Product Main Family Group
- Photoelectric sensors
- Rail mounting possible
- No
- Rated operating distance
- Min.120-Max.500
- Rated Operetional voltage UB at DC
- Min.10-Max.30
- Rated switching distance
- 500
- Sensing mode
- Light-/dark switching
- Sensing range maximum
- 500
- Setting procedure
- Manual adjustment
- Switching frequency
- 250
- Target included
- No
- Time of reaction
- 2
- Triangulation
- Background fade-out
- Type of light
- Infrared light
- Voltage type
- DC
- Wall mounting/direct mounting
- Yes
- Wavelength of the sensor
- 850
- Width
- 17
- With approval according to UL
- Yes
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- With other analogue output
- No
