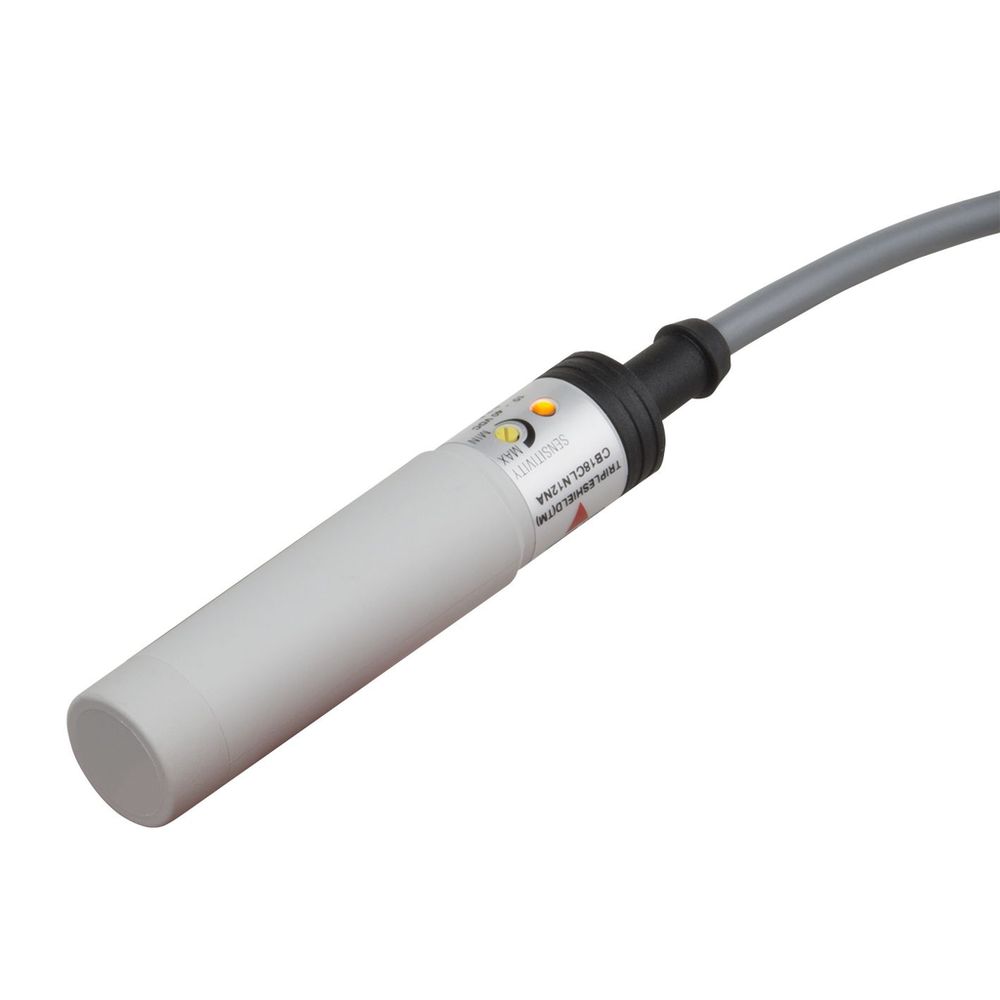

Carlo Gavazzi CB18CLN12TOFTAX
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Carlo Gavazzi CB18CLN12TOFTAX is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Approval according to UL
- Yes
- Approved according to CSA
- Yes
- Cascadable
- No
- Category according to EN 954-1
- B
- Coating housing
- Other
- Compression-resistant
- No
- Connection Type
- Cable
- Degree of protection (IP)
- IP67
- Degree of protection (NEMA)
- 1, 3, 4, 6, 13
- Diameter
- 18
- Explosion safety category for dust
- ATEX dust-ex-protection, Cat. 3D
- Housing material
- Plastic
- Housing material, specific
- Plastic
- Housing Style
- Cylindrical, smooth barrel
- Installation Type
- Non-Flush
- IO-Link
- No
- Length
- 86
- Max. output current at protected output
- 500
- No load current
- 10
- Number of protected semiconductor outputs
- 1
- Output function
- Normally Open (NO)
- Output Type
- Two-wire
- Product Main Family
- Sensors
- Product Main Family Group
- Capacitive sensors
- Rail mounting possible
- No
- Rated control supply voltage Us at AC 50HZ
- Min.20-Max.250
- Rated control supply voltage Us at AC 60HZ
- Min.20-Max.250
- Setting procedure
- Manual adjustment
- Suitable for safety functions
- No
- Supply voltage
- Min.20-Max.250
- Switching distance
- 12
- Type of actuation
- Other
- Voltage type
- AC
- Wall mounting/direct mounting
- No
- With monitoring function downstream switching devices
- No
- With status indication
- Yes
