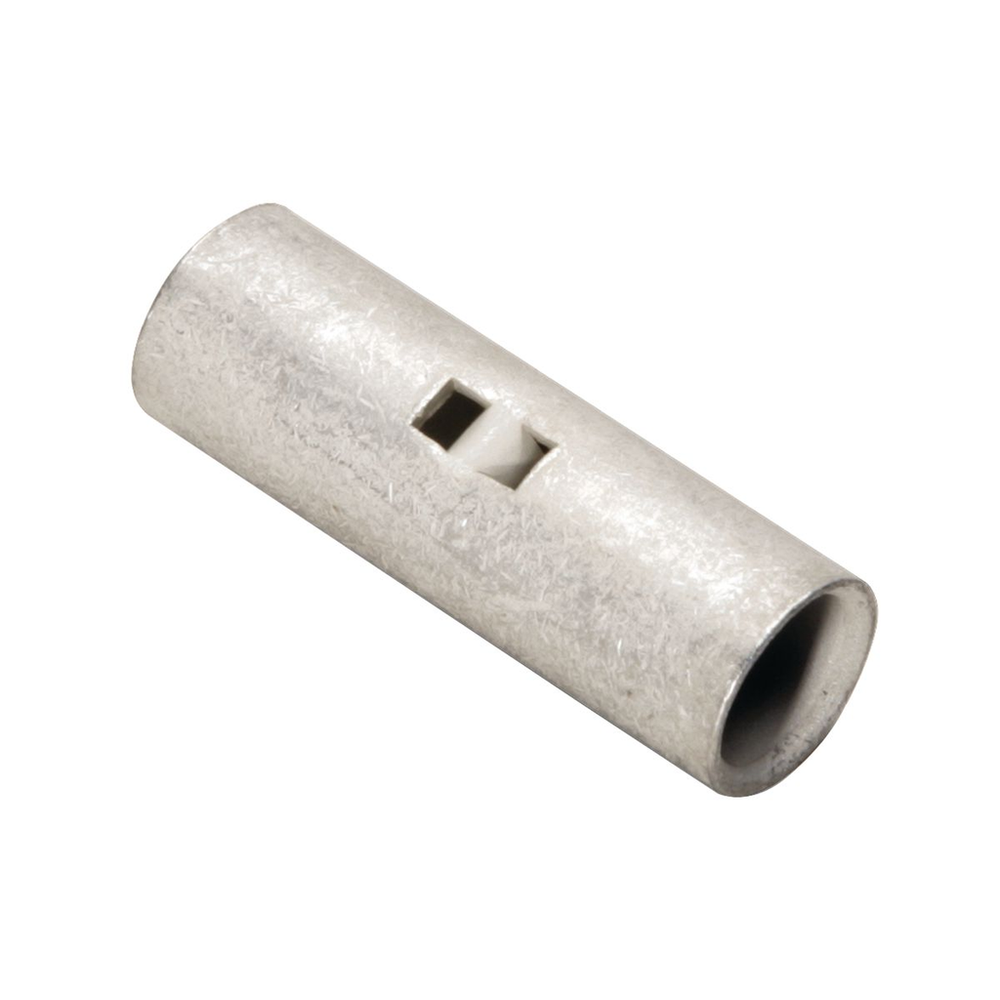

Burndy YSV1CL
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Uninsulated Splice For 1 AWG.Uninsulated Splice For 1 AWG
Burndy YSV1CL is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Aircraft, Light Duty Industrial And General Purpose Applications
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 5.125x8.438x4.063 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 7.800 lb.
- Carton - Number of Sub Packs
- 200
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810543917
- Carton - Total Units
- 200
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810543918
- Certification Agency
- Proposition 65
- Class Code
- B57
- Conductor - Copper Solid Size
- 1
- Conductor - Copper Str Aircraft Size
- AN 1
- Conductor - Copper Str Size
- 1
- Conductor Size
- 1 AWG
- Conductor Type
- CU C Str-Size;CU C Solid-Size;CU C Str Aircraft-Size
- Connector Type
- Seamless Butt Splice
- Country of Origin
- US
- Description - Invoice
- 1 AWG HVYDTY BUTT SPLICE,1.46 IN L
- Die Index
- 42
- Dimension - B Length fraction
- 5/8 in
- Dimension - B Length inch
- 0.62 in
- Dimension - Length Overall inch
- 1.46 in
- Dimension - L Length Overall mm
- 37 mm
- Dimension - Outside Diameter inch
- 0.51 in
- Dimension - Strip Length inch
- 5/8 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.513 in
- Feature - Barrel Style
- Chamfered
- Freight Class Code
- 16027000
- Harmonization Code
- 8536904000
- Image Actual Or Representative
- A
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 7.8 lb.
- Package - GTIN - Package
- 30781810543918
- Package Height
- 4.5 in
- Package Length
- 8.13 in
- Package - Number of Sub Packs
- 200
- Package - Pack Description
- Package
- Package Quantity
- 200 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810543917
- Package - Total Units
- 200 EA
- Package Weight
- 7.8 lb.
- Package Width
- 3.75 in
- Pallet - GTIN - Package
- 70781810543916
- Pallet Height
- 46.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1956.000 lb.
- Pallet Width
- 40.000 in
- Plated
- Y
- Plating Type
- Tin
- Product Type
- SPLICE
- Special Features
- Features: HYLINK Type YSV-L Seamless Splice Connector Is Used To Splice Type AN Aircraft Cables Plus Commercial Stranded And Solid AWG Conductors, Suitable For Aircraft, Light Duty Industrial And General Purpose Applications, Tools, Die Nest Catalog Number, Die Indentor Catalog Number: HYPRESS: H35, Y35BH, Y39, Y39BH Tool, UV1L Die Nest, Y34PLA Die Indentor, Y35P3 Indentor Adaptor, Conductor Type: Commercial/Aircraft Stranded Copper, Wire Strip Length: 5/8 IN, Insulation Support: No, Installation Tool: HYTOOL: Type AH, Aircraft, Cable - MY28 Tool, All Others: MY29-3, MY29-11 Tool, 1 Crimp
- Standard Package Quantity
- 200
- Standards - Industry Standards Met
- UL486
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- N - Non-stock
- Sub Brand
- HYLINK
- Sub Class Code
- B57BKFF
- Trade Name
- HYLINK™
- Type
- Splice
- UL Listed
- Yes
- Voltage - Maximum
- 600 V
- Width
- 0.513 in
