Burndy YSV1418
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

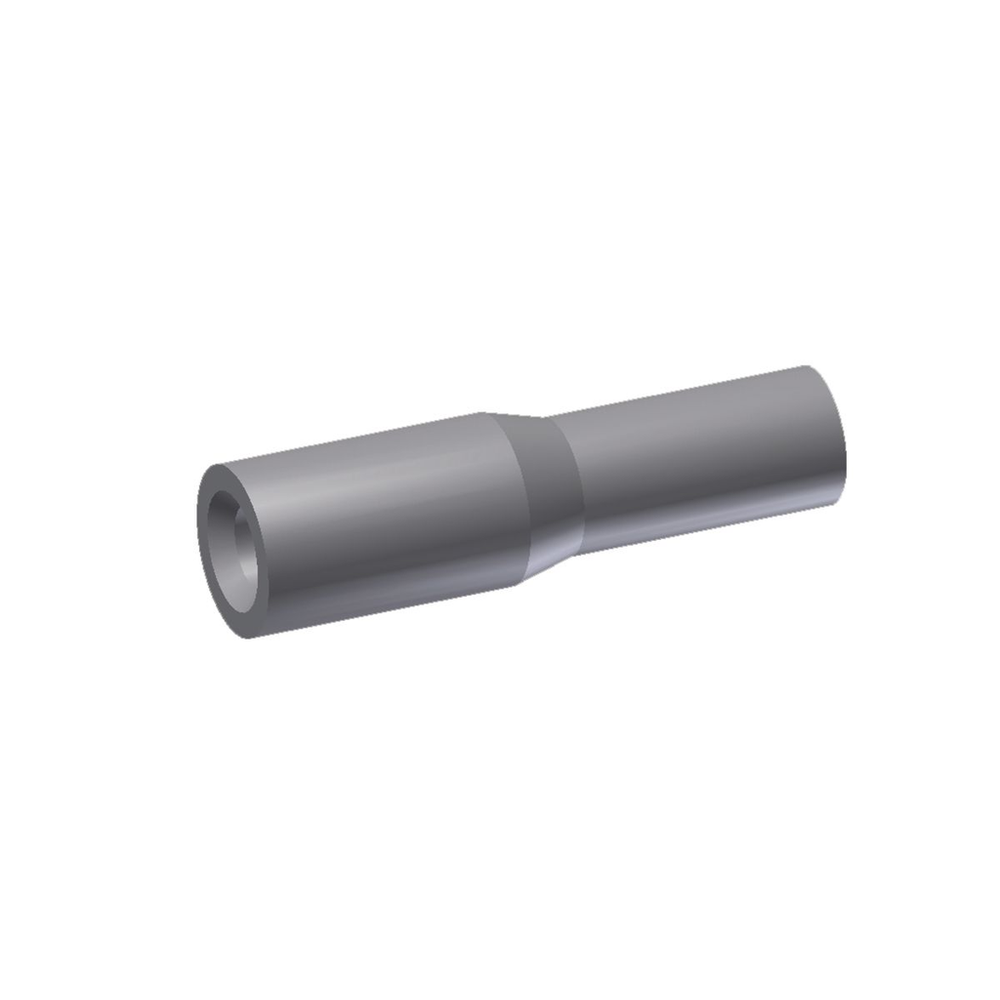

Uninsulated Reducing Splice For 20 - 14 AWG and 22 - 18 AWG.Uninsulated Reducing Splice For 20 - 14 AWG and 22 - 18 AWG
Burndy YSV1418 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Splicing Two Different Size Wires
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 3.250x2.440x2.940 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 2.000 lb.
- Carton - Number of Sub Packs
- 1000
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810026397
- Carton - Total Units
- 1000
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810026398
- Class Code
- B57
- Conductor - Copper Str Size
- 20;18;16;14
- Conductor Size
- 22 - 18 AWG
- Conductor Type
- CU C Str-Size;CU C Solid-Size;CU C Str Aircraft-Size
- Connector Type
- Reducer
- Country of Origin
- US
- Description - Invoice
- 22-14 SOL/STR/FX BUTT SP
- Dimension - A Outside Diameter inch
- 0.15 in
- Dimension - B Length fraction
- 1/4 in
- Dimension - B Length inch
- 0.27 in
- Dimension - B Outside Diameter inch
- 0.12 in
- Dimension - Length BB inch
- 0.27 in
- Dimension - Length Overall inch
- 0.64 in
- Dimension - L Length Overall mm
- 15 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.156 in
- Feature - Barrel Style
- Chamfered
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- No
- Order Multiple
- 1000 EA
- Package - Gross Weight per Pack
- 2 lb.
- Package - GTIN - Package
- 30781810026398
- Package Height
- 3.13 in
- Package Length
- 2.88 in
- Package - Number of Sub Packs
- 1000
- Package - Pack Description
- Package
- Package Quantity
- 1000 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810026397
- Package - Total Units
- 1000 EA
- Package Weight
- 2 lb.
- Package Width
- 2.38 in
- Plated
- Y
- Plating Type
- Tin
- Product Type
- SPLICE REDUCER
- Special Features
- Features: The HYREDUCER Is A Connector For Splicing Two Different Size Wires, The Larger Conductor Is Inserted First And Butts Against The Center Of The Connector Where The Smaller Barrel Begins, Constructed Of Pure Electrolytic Copper Tubing For Maximum Conductivity, Tin Plated To Resist Corrosion, The HYREDUCER Accommodates A Wide Range Of Cable Sizes, Wire Strip Length: Side A And B: 0.27 IN, Tools, Die Set Catalog Number, And (number Of Crimps): Side A And B: Y8MRB-1, MR20, MR8G98, MR8-9Q Tool
- Standard Package Quantity
- 1000
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- N - Non-stock
- Sub Brand
- HYREDUCER
- Sub Class Code
- B57BKFF
- Trade Name
- HYREDUCER™
- Type
- Splice
- UL Listed
- No
- Voltage - Maximum
- 35000 V
- Width
- 0.156 in
