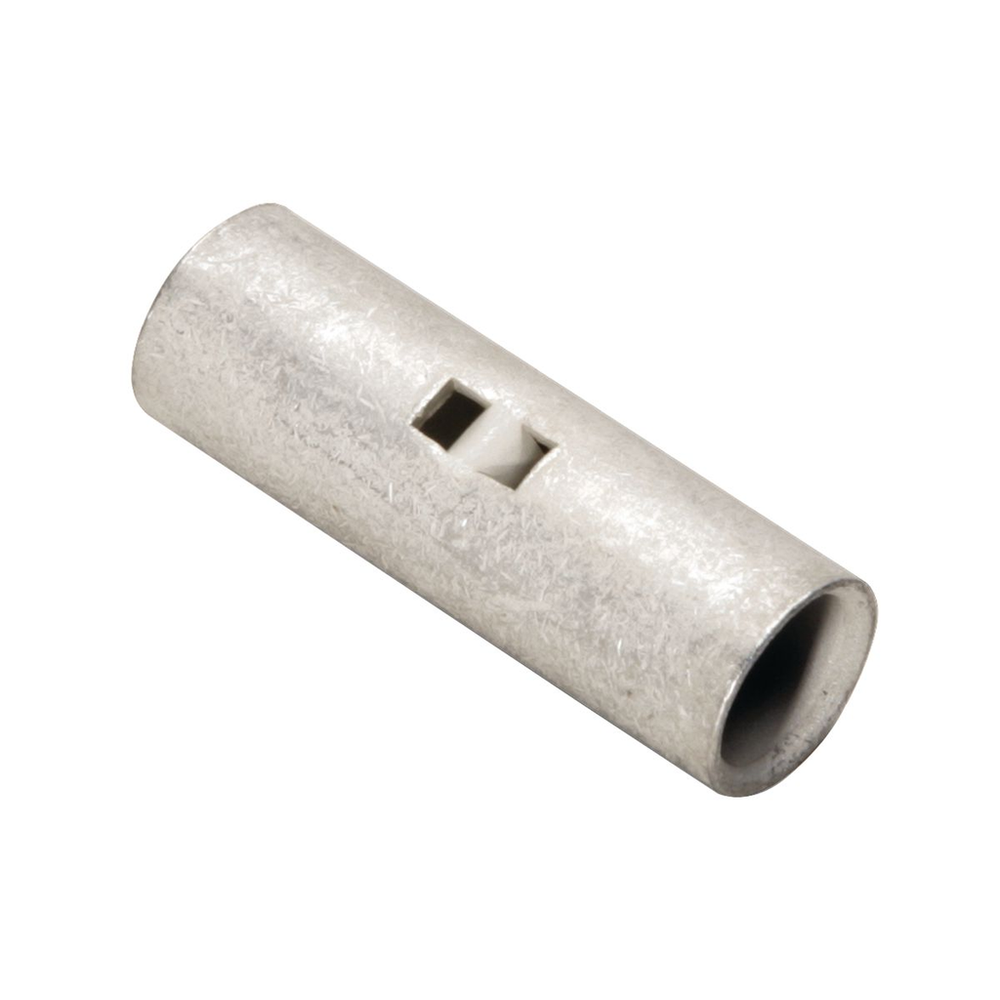

Burndy YSV14
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Copper Compression Splice, AN 20-14, 0.64" Splice Length, Short Barrel, Tin Plated.Copper Compression Splice, AN 20-14, 0.64" Splice Length, Short Barrel, Tin Plated
Burndy YSV14 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For All Heavy Duty Industrial And General Purpose Applications
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 0.000x0.000x0.000 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 3.000 lb.
- Carton - Number of Sub Packs
- 1000
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810806067
- Carton - Total Units
- 1000
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810806068
- Class Code
- B57
- Conductor - Copper Solid Size
- 12
- Conductor - Copper Solid Size Range
- 12
- Conductor - Copper Str Aircraft Size
- AN 20;AN 18;AN 16;AN 14
- Conductor - Copper Str Aircraft Size Range
- AN 20-AN 14
- Conductor - Copper Str Navy Size
- 2 1/2 (1);2 1/2 (19);2 1/2 (26);3 (7);4 (1);4 (7);4 (19);4 (41)
- Conductor - Copper Str Navy Size Range
- 2 1/2 (1)-4 (41)
- Conductor - Copper Str Size
- 20;18;16;14
- Conductor - Copper Str Size Range
- 20 AWG - 14 AWG
- Conductor Size
- 16 - 14 AWG
- Conductor Type
- CU C Str-Size;CU C Solid-Size;CU C Str Aircraft-Size
- Connector Type
- Seamless Butt Splice
- Country of Origin
- US
- Description - Invoice
- 20-14 SOL/STR/FX BUTT SP
- Die Index
- 36
- Dimension - B Length fraction
- 1/4 in
- Dimension - B Length inch
- 0.25 in
- Dimension - Inside Diameter inch
- 0.09 in
- Dimension - Length Overall inch
- 0.64 in
- Dimension - L Length Overall mm
- 16 mm
- Dimension - Outside Diameter inch
- 0.16 in
- Dimension - Strip Length inch
- 1/4
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.166 in
- Feature - Barrel Style
- Chamfered;Shrouded
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- No
- Order Multiple
- 1000 EA
- Package - Gross Weight per Pack
- 3 lb.
- Package - GTIN - Package
- 30781810806068
- Package Height
- 2.43 in
- Package Length
- 4.13 in
- Package - Number of Sub Packs
- 1000
- Package - Pack Description
- Package
- Package Quantity
- 1000 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810806067
- Package - Total Units
- 1000 EA
- Package Weight
- 3 lb.
- Package Width
- 3.25 in
- Plated
- Y
- Plating Type
- Tin
- Product Type
- SPLICE
- Special Features
- Features: HYLINK Type YSV Seamless Splice Connector Is Used To Splice Stranded And Solid Copper Conductors In Virtually All Heavy Duty Industrial And General Purpose Applications, Manufactured From Seamless Tubing: A High Quality Design With No Seams To Split, Electrolytic Copper: Provides Maximum Conductivity, Low Resistance And Ductility For Excellent Crimp Forming Properties, Electro-Tin Plated: Provides Durable Long Lasting Resistance To Corrosion, Positive Center Wire Stops: Provides Proper Depth Of Wire Insertion, Marked With Wire Size: Provides Easy Wire Size Identification, The HYLINK Splice Connectors Have Inspection Holes: Provides Easy Visual Inspection ForProper Wire Insertion, Installation Tool: HYTOOL: Non-Ratchet: Y10D, Y10-22 Tool, Ratchet: Y8MRB-1, MR20, MR8G98, MR8-9Q Tool, Wire Strip Length: 1/4 IN, Insulation Support: No, Conductor Type: Solid Conductor
- Standard Package Quantity
- 1000
- Standards - Industry Standards Met
- UL486
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- N - Non-stock
- Sub Brand
- HYLINK
- Sub Class Code
- B57BKFF
- Temperature Rating
- 90
- Trade Name
- HYLINK™
- Type
- Splice
- UL Listed
- Yes
- Voltage - Maximum
- 35000 V
- Width
- 0.166 in
