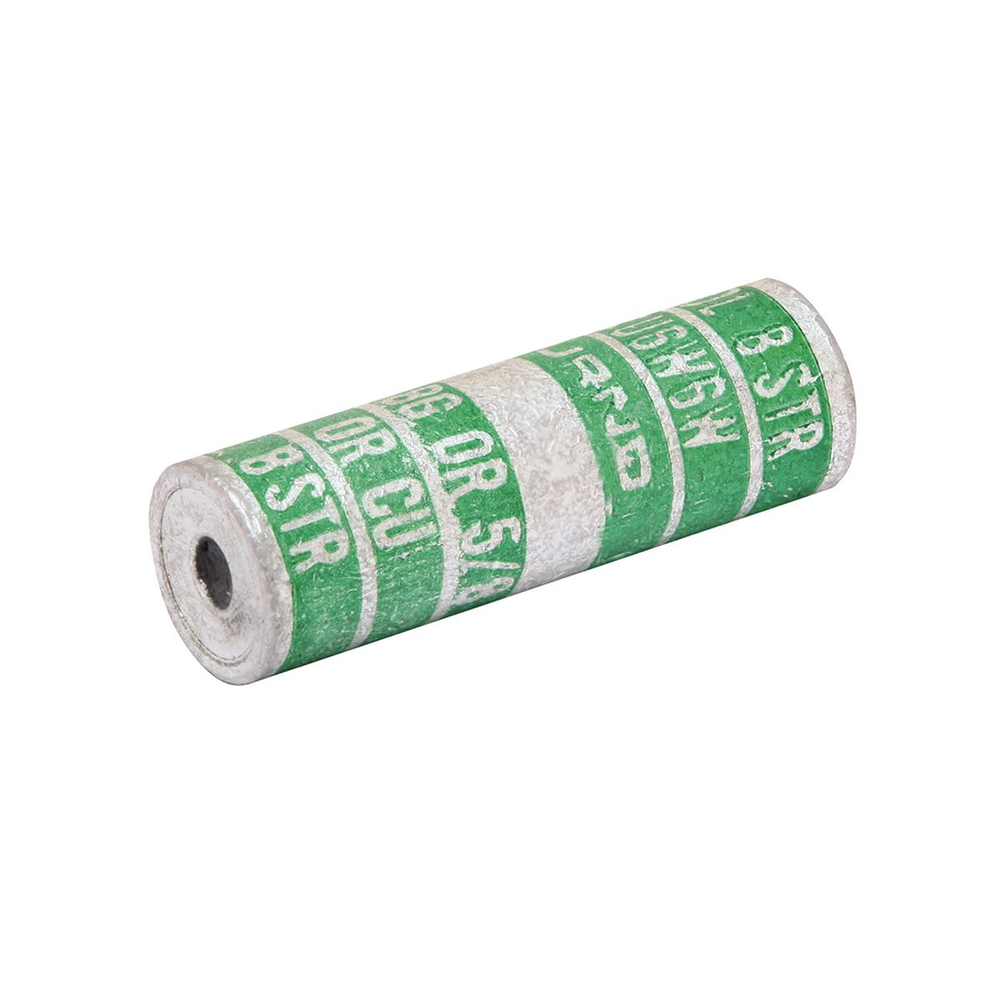

Burndy YSU2R2W
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Heavy-walled AL tubing with solid barrier minimizes galvanic corrosion, Color Code:Red (Side A), Orange (Side B).Heavy-walled AL tubing with solid barrier minimizes galvanic corrosion, Color Code:Red (Side A), Orange (Side B)
Burndy YSU2R2W is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Combinations Of Copper, Aluminum, ACSR, 6201, 5005 and Compressed Conductors
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 5.125x7.373x6.438 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 5.000 lb.
- Carton - Number of Sub Packs
- 100
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810141236
- Carton - Total Units
- 100
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810141237
- Certification Agency
- Proposition 65
- Class Code
- B30
- Color Code - Side A
- Red
- Color Code - Side B
- Orange
- Conductor - ACSR Str Size A
- 2 (6/1) Sparrow AWG;2 (7/1) Sparate AWG
- Conductor - ACSR Str Size A Range
- 2 (6/1) Sparrow AWG-2 (7/1) Sparate AWG
- Conductor - ACSR Str Size B
- 4 (6/1) Swan AWG;4 (7/1) Swanate AWG
- Conductor - ACSR Str Size B Range
- 4 (6/1) Swan AWG-4 (7/1) Swanate AWG
- Conductor - AL Str Size A
- 2 AWG;1 AWG
- Conductor - AL Str Size A Range
- 2 AWG-1 AWG
- Conductor - AL Str Size B
- 3 AWG, 4 AWG
- Conductor - AL Str Size B Range
- 3 AWG- 4 AWG
- Conductor - Copper Solid Size B
- 2 AWG
- Conductor - Copper Str Size A
- 1 AWG, 2 AWG, 3 Awg
- Conductor - Copper Str Size A Range
- 1 AWG-3 AWG
- Conductor - Copper Str Size B
- 3 AWG, 4 AWG
- Conductor - Copper Str Size B Range
- 3 AWG- 4 AWG
- Country of Origin
- US
- Description - Invoice
- 2 TO 4 AL/CU/ACSR SE CON
- Die Index
- 243;BG or 5/8
- Dimension - B Length inch
- 0.87 in
- Dimension - Length Overall inch
- 2 in
- Dimension - L Length Overall mm
- 51 mm
- Dimension - Outside Diameter inch
- 0.65 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.65 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Lead Time
- 12 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- MSDS Flag
- No
- Order Multiple
- 100 EA
- Package - Gross Weight per Pack
- 5 lb.
- Package - GTIN - Package
- 30781810141237
- Package Height
- 4.50 in
- Package Length
- 7.06 in
- Package - Number of Sub Packs
- 100
- Package - Pack Description
- Package
- Package Quantity
- 100 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810141236
- Package - Total Units
- 100 EA
- Package Weight
- 5 lb.
- Package Width
- 6.13 in
- Pallet - GTIN - Package
- 70781810141235
- Pallet Height
- 46.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1525.000 lb.
- Pallet Width
- 40.000 in
- Plated
- Y
- Plating Type
- Tin - Hot Dipped
- Prefilled Oxide Inhibitor
- Y
- Product Type
- Compression
- Special Features
- Features: Heavy-Walled Aluminum Tubing With Solid Barrier Minimizes Galvanic Corrosion Of Conductors, Accommodates Neutral Strands Of Type SE Service Entrance Conductor As Well As Other Conductors, Installed With Standard Tooling, Color Coded, Pre-Filled With PENE TROX Joint Compound And Stripsealed, Conductor Type: Side A And Side B: ACSR, Aluminum, Copper, Die Index: BG Element A, Color Code: Red (Side A), Orange (Side B), Tools, Die Set Catalog Number, And (number Of Crimps): HYTOOL: OH25 Tool, (1), MD6, MD7 Tool, (3), MD6, MD7 Tool, W-BG Die, (1), OUR840 Tool, X-NBG Die, (1), HYPRESS: Y35 Tool, U-BG Die, (1), Y35L, Y750 Tool
- Standard Package Quantity
- 100
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- LINKIT
- Sub Class Code
- B30B3VF
- Trade Name
- LINKIT™
- Type
- Service Entrance, Uninsulated, Center Stop
- UL Listed
- No
- Width
- 0.65 in
