Burndy YST3434
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

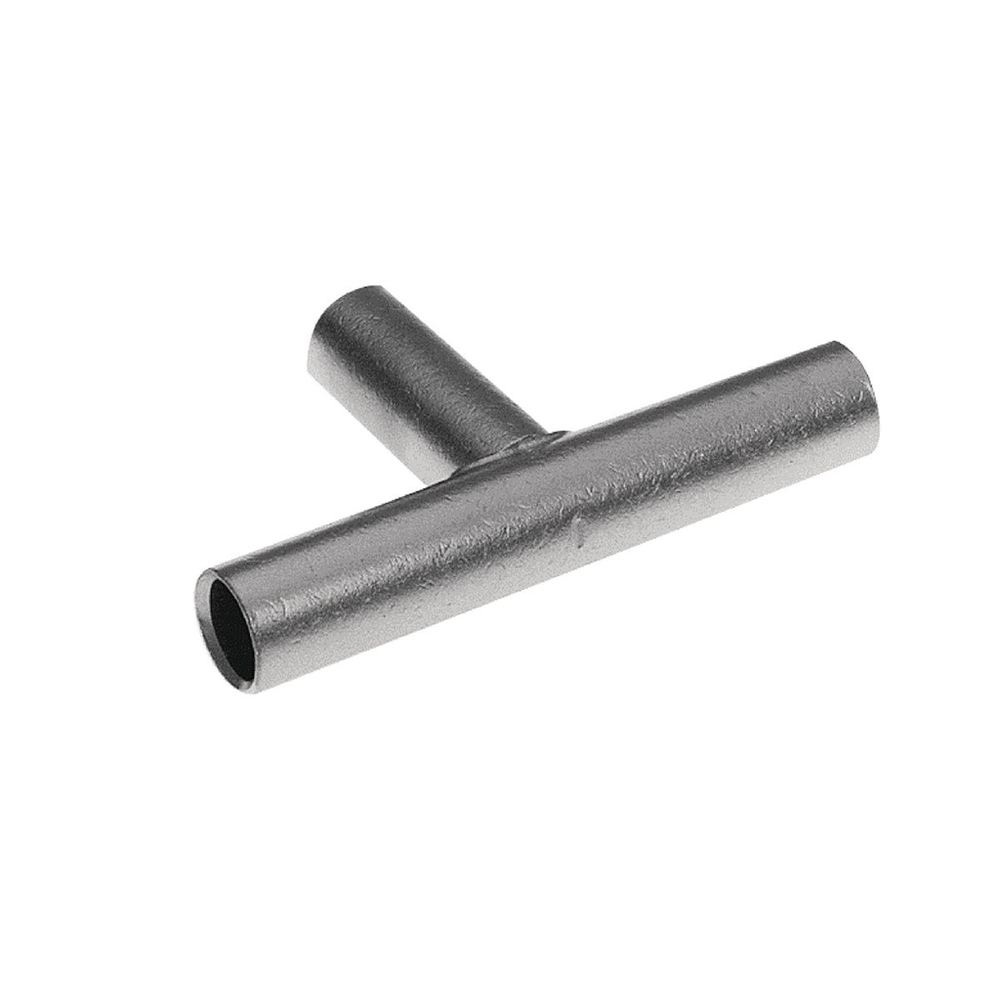

Cu compression T-Coupler, 500Kcmil(Run),500Kcmil(Tap), Brown(Run&Tap), 20(Run&Tap) Index.Cu compression T-Coupler, 500Kcmil(Run), 500Kcmil(Tap), Brown(Run&Tap), 20(Run&Tap) Index
Burndy YST3434 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- T-Connector
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 4.875x9.313x6.443 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 9.900 lb.
- Carton - Number of Sub Packs
- 10
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810502075
- Carton - Total Units
- 10
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810502076
- Certification Agency
- Proposition 65
- Class Code
- B55
- Color Code
- Brown
- Color Code - Side A
- Brown
- Color Code - Side B
- Brown
- Conductor - Copper Str Run
- 500 KCMIL
- Conductor - Copper Str Run Range
- 500 kcmil
- Conductor - Copper Str Tap
- 500 KCMIL
- Conductor - Copper Str Tap Range
- 500 kcmil
- Conductor - Material
- COPPER
- Conductor Size
- 500 KCMIL-500 KCMIL
- Conductor Type
- CODE
- Connector Type
- T-COUPLER
- Country of Origin
- US
- Description - Invoice
- 500R 500T CU TEE
- Description - Slang
- CU HYTEE COMPR YST,YYT
- Die Index
- 20/20
- Die Index Run Side
- 20
- Die Index Tap Side
- 20
- Dimension - A Outside Diameter inch
- 1.06 in
- Dimension - B Length fraction
- 2-1/4 in
- Dimension - B Length inch
- 2.25 in
- Dimension - B Outside Diameter inch
- 1.06 in
- Dimension - Height inch
- 3.76 in
- Dimension - Length BB inch
- 2.70 in
- Dimension - Length Overall inch
- 6.19 in
- Dimension - L Length Overall mm
- 157 mm
- Dimension - Width inch
- 2.60 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1.06 in
- Feature - Barrel Style
- Chamfered
- Feature - Barrel Type
- Long
- Finish
- Tin-Plated
- Finish Type
- Tin-Plated
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL 486A-486B
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- COPPER
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 9.9 lb.
- Package - GTIN - Package
- 30781810502076
- Package Height
- 4.25 in
- Package Length
- 9.00 in
- Package - Number of Sub Packs
- 10
- Package - Pack Description
- Package
- Package Quantity
- 10 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810502075
- Package - Total Units
- 10 EA
- Package Weight
- 9.9 lb.
- Package Width
- 6.13 in
- Pallet - GTIN - Package
- 70781810502074
- Pallet Height
- 44.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 2421.000 lb.
- Pallet Width
- 40.000 in
- Plated
- Y
- Plating Type
- Tin - Electro Plated
- Product Type
- RUN/TAP
- Special Features
- Features: Manufactured from seamless high conductivity electrolytic copper, Electro-tin plated
- Standard
- UL 486A-486B
- Standard Package Quantity
- 10
- Standards - Industry Standards Met
- UL 486A-486B
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- HYTEE
- Sub Class Code
- B55BIJF
- Temperature Rating
- 194
- Trade Name
- HYTEE™
- Type
- YST, Uninsulated T
- UL Listed
- Yes
- Voltage - Maximum
- 35000
- Voltage Rating
- 35 kV
- Width
- 1.06 in
