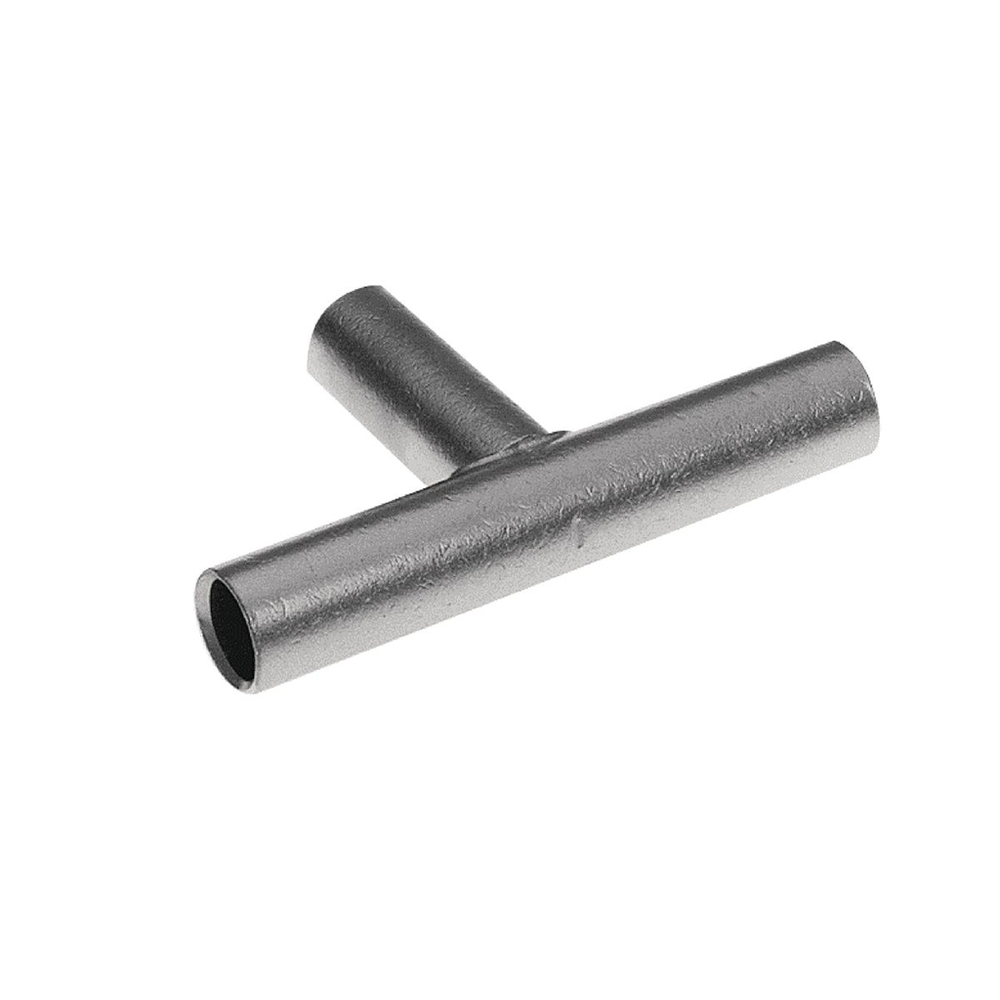

Burndy YST282C
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
UNINSULATED HIGH VOLTAGE COPPER COMPRESSION SPLICE STANDARD BARREL-TAPERED ENDS.Cu Coupler T Connector, 600 V-35 kV, Compression, 4/0 AWG STR (Run), #2 AWG STR (Tap), Purple(Run), Brown (Tap), 15 Index (Run), 10 Index (Tap)
Burndy YST282C is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- UL Recognized
- No
Specifications
- Application
- T-Connector
- Base Unit of Measure
- EA
- BOX SIZE
- 5.125x7.373x6.438 (in)
- Carton - Gross Weight per Pack
- 5.250 lb.
- Carton - Number of Sub Packs
- 25
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810502013
- Carton - Total Units
- 25
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810502014
- Certification Agency
- Proposition 65
- Class Code
- B55
- Color Code - Side A
- Purple
- Color Code - Side B
- Brown
- Conductor - Copper Str Run
- 4/0 AWG
- Conductor - Copper Str Run Range
- 4/0 AWG
- Conductor - Copper Str Tap
- 2 AWG
- Conductor - Copper Str Tap Range
- 2 AWG
- Conductor - Material
- COPPER
- Conductor Size
- 4/0 AWG-2 AWG
- Conductor Type
- CODE
- Connector Type
- T-COUPLER
- Country of Origin
- US
- Description - Slang
- CU HYTEE COMPR YST,YYT
- Die Index
- 15/10
- Die Index Run Side
- 15
- Die Index Tap Side
- 10
- Dimension - A Outside Diameter inch
- 0.69 in
- Dimension - B Length fraction
- 1-5/8 in
- Dimension - B Length inch
- 1.62 in
- Dimension - B Outside Diameter inch
- 0.42 in
- Dimension - Height inch
- 2.12 in
- Dimension - Length BB inch
- 1.50 in
- Dimension - Length Overall inch
- 3.94 in
- Dimension - L Length Overall mm
- 100 mm
- Dimension - Width inch
- 1.50 in
- Feature - Barrel Style
- Chamfered
- Feature - Barrel Type
- Long
- Finish Type
- Tin-Plated
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL 486A-486B
- Lead Time
- 12 wk
- Material
- COPPER
- Package - GTIN - Package
- 30781810502014
- Package Quantity
- 25 EA
- Package - Total Units
- 25 EA
- Package Weight
- 0.000 lb.
- Pallet - GTIN - Package
- 70781810502012
- Pallet Height
- 46.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1599.000 lb.
- Pallet Width
- 40.000 in
- Plated
- Y
- Plating Type
- Tin - Electro Plated
- Product Type
- RUN/TAP
- Standard Package Quantity
- 25
- Standards - Industry Standards Met
- UL 486A-486B
- Standards - RoHS Compliance Status
- CM
- Sub Class Code
- B55BIJF
- Temperature Rating
- 194
- Trade Name
- HYTEE™
- UL Listed
- Yes
- Voltage - Maximum
- 35000
- Voltage Rating
- 35 kV
