Burndy YST2828
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

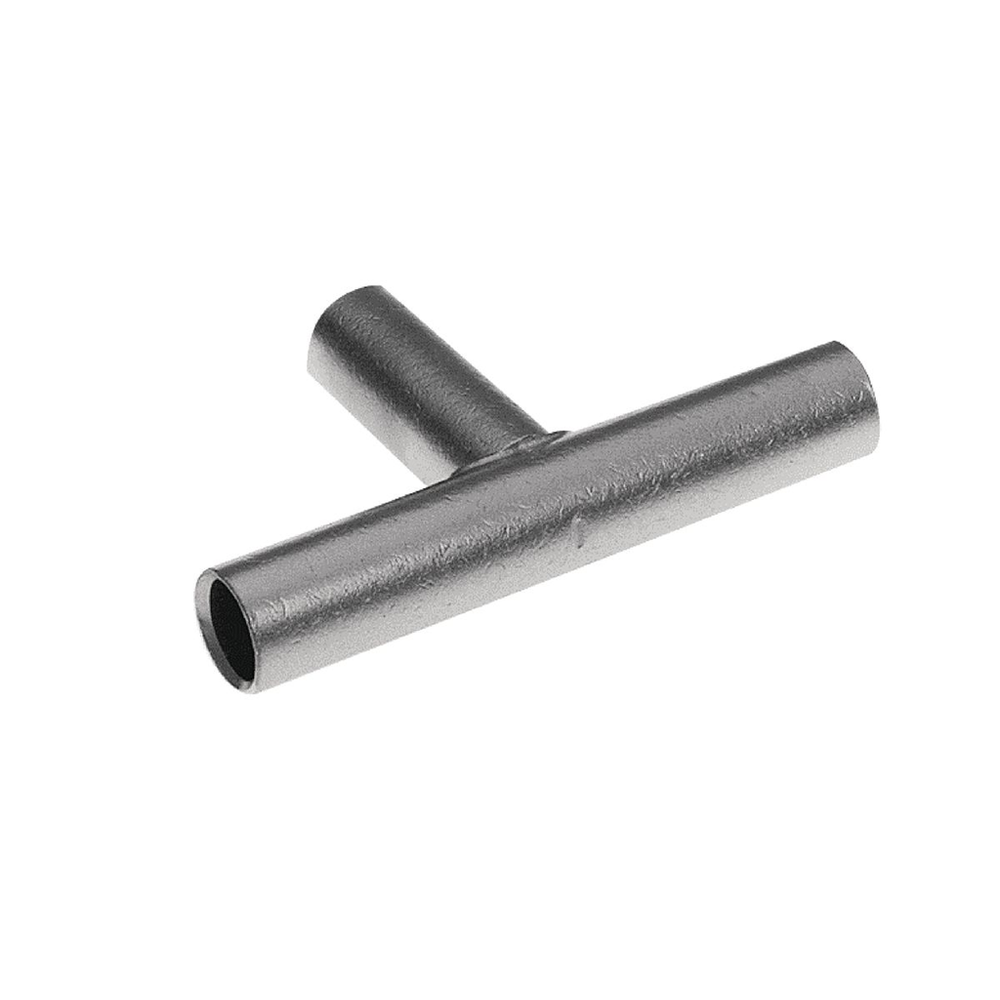

Copper Compression Tee, 4 AWG (Str) (Run & Tap), Tin Plated.Copper Compression Tee, 4 AWG (Str) (Run & Tap), Tin Plated
Burndy YST2828 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- T-Connector
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 5.125x7.373x6.438 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 6.750 lb.
- Carton - Number of Sub Packs
- 25
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810510001
- Carton - Total Units
- 25
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810510002
- Certification Agency
- Proposition 65
- Class Code
- B55
- Color Code
- Purple
- Color Code - Side A
- Purple
- Color Code - Side B
- Purple
- Conductor - Copper Str Run
- 4/0 AWG
- Conductor - Copper Str Run Range
- 4/0 AWG
- Conductor - Copper Str Tap
- 4/0 AWG
- Conductor - Copper Str Tap Range
- 4/0 AWG
- Conductor - Material
- COPPER
- Conductor Size
- 4/0 AWG-4/0AWG
- Conductor Type
- CODE
- Connector Type
- T-COUPLER
- Country of Origin
- US
- Description - Invoice
- 4/0R 4/0T CU TEE
- Description - Slang
- CU HYTEE COMPR YST,YYT
- Die Index
- 15/15
- Die Index Run Side
- 15
- Die Index Tap Side
- 15
- Dimension - A Outside Diameter inch
- 0.69 in
- Dimension - B Length fraction
- 1-5/8 in
- Dimension - B Length inch
- 1.62 in
- Dimension - B Outside Diameter inch
- 0.69 in
- Dimension - Height inch
- 2.44 in
- Dimension - Length BB inch
- 1.75 in
- Dimension - Length Overall inch
- 4.19 in
- Dimension - L Length Overall mm
- 106 mm
- Dimension - Width inch
- 1.75 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.69 in
- Feature - Barrel Style
- Chamfered
- Feature - Barrel Type
- Long
- Finish
- Tin-Plated
- Finish Type
- Tin-Plated
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL 486A-486B
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- COPPER
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 6.75 lb.
- Package - GTIN - Package
- 30781810510002
- Package Height
- 4.5 in
- Package Length
- 7.06 in
- Package - Number of Sub Packs
- 25
- Package - Pack Description
- Package
- Package Quantity
- 25 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810510001
- Package - Total Units
- 25 EA
- Package Weight
- 6.75 lb.
- Package Width
- 6.13 in
- Pallet - GTIN - Package
- 70781810510000
- Pallet Height
- 46.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 2043.000 lb.
- Pallet Width
- 40.000 in
- Plated
- Y
- Plating Type
- Tin - Electro Plated
- Product Type
- RUN/TAP
- Special Features
- Features: Manufactured From Seamless High Conductivity Electrolytic Copper Tubing With Heavy Duty Wall Thickness, Long Barrel Design On All Three Legs, Long Barrel Permits The Use Of The Y-R Reducers, Electro-Tin Plated, Barrel Diameter Closely Matches Commercial (Code) Cable And Navy Cable Diameters, Color Code: Purple For Run, Purple For Tap, Tools, Die Set Catalog Number, And (number Of Crimps): Run And Tap: Y35, Y39, Y750 Tool, U28RT Die, (2), Y46 Tool, U28RT Die With PUADP-1 Adapter, (2), Die Index: 15, Dieless Tools (number Of Crimps): Mechanical HYTOOL: MY29-3, MY29-11 Tool, (2), MD6, MD7 Tool, (4), Hydraulic HYPRESS: Y644HS Tool, (1), Wire Strip Length: 1-11/16 IN Run And Tap
- Standard
- UL 486A-486B
- Standard Package Quantity
- 25
- Standards - Industry Standards Met
- UL 486A-486B
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- HYTEE
- Sub Class Code
- B55BIJF
- Temperature Rating
- 194
- Trade Name
- HYTEE™
- Type
- YST, Uninsulated T
- UL Listed
- Yes
- Voltage - Maximum
- 35000
- Voltage Rating
- 35 kV
- Width
- 0.69 in
