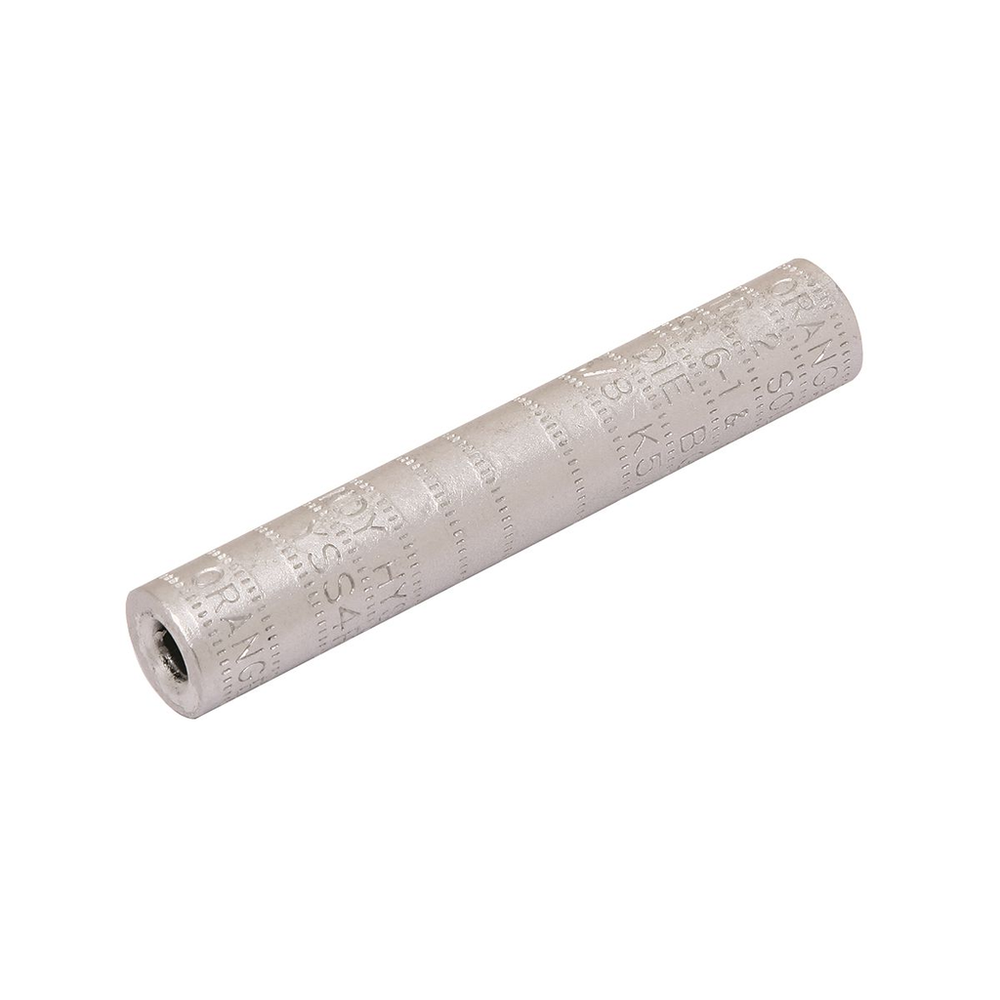

Burndy YSS2R
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Single aluminum sleeve designed for service drop or short span overhead distribution lines,Die index:BG or 5/8.Single aluminum sleeve designed for service drop or short span overhead distribution lines, Die index:BG or 5/8
Burndy YSS2R is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Aluminum, ACSR, 6201, 5005 And Compressed Conductors And Service Drop Or Short Span Overhead Distribution Lines
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 5.125x7.373x6.438 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 5.500 lb.
- Carton - Number of Sub Packs
- 50
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810169551
- Carton - Total Units
- 50
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810169552
- Certification Agency
- Proposition 65
- Class Code
- B30
- Color Code
- Red
- Conductor - ACSR Str Size
- 2 (6/1) Sparrow AWG;2 (7/1) Sparate AWG
- Conductor - ACSR Str Size Range
- 2 (6/1) Sparrow AWG-2 (7/1) Sparate AWG
- Conductor - AL Str Size
- 2 AWG
- Connector Type
- Splice
- Country of Origin
- US
- Description - Invoice
- 2 AL/ACSR SPLICE
- Die Index
- BG or 5/8
- Dimension - B Length fraction
- 1-39/50 in
- Dimension - B Length inch
- 1.78 in
- Dimension - Length Overall inch
- 3.78 in
- Dimension - L Length Overall mm
- 96 mm
- Dimension - Outside Diameter inch
- 0.65 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.65 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Lead Time
- 10 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 5.5 lb.
- Package - GTIN - Package
- 30781810169552
- Package Height
- 4.5 in
- Package Length
- 7.06 in
- Package - Number of Sub Packs
- 50
- Package - Pack Description
- Package
- Package Quantity
- 50 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810169551
- Package - Total Units
- 50 EA
- Package Weight
- 5.5 lb.
- Package Width
- 6.13 in
- Pallet - GTIN - Package
- 70781810169550
- Pallet Height
- 46.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1673.000 lb.
- Pallet Width
- 40.000 in
- Plated
- N
- Plating Type
- Unplated
- Prefilled Oxide Inhibitor
- Y
- Product Type
- Compression
- Special Features
- Features: Single Aluminum Sleeve Designed For Service Drop Or Short Span Overhead Distribution Lines, Installed With OH25 One-Hand Tool, And Other Standard Tooling, Pre-Filled With PENETROX Joint Compound And Color Coded Capped, Oh25 Application: Conductor, (indentd Per End): ACSR: 2 AWG (6-1), (7-1), (3), Aluminium: 2 AWG (7), (3), Holding Strength: ACSR: 1600 LB, Aluminum: 1200 LB, Die Index: BG Element A, Color Code: Red, Conductor Type: ACSR, Aluminum, Tools, Die Set Catalog Number, And (number Of Crimps): MD6, MD7 Tool, W-BG Die, (3), BG Die, (6), Y35, Y750 Tool, U-BG Die, (3), Y45 Tool, U-BG Die With PT-6515 Adapter, (3), Y46 Tool, U-BG Die With PUADP-1 Adapter, (3)
- Standard Package Quantity
- 50
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- HYSPLICE
- Sub Class Code
- B30B44F
- Trade Name
- HYSPLICE™
- Type
- YSS
- UL Listed
- No
- Width
- 0.65 in
