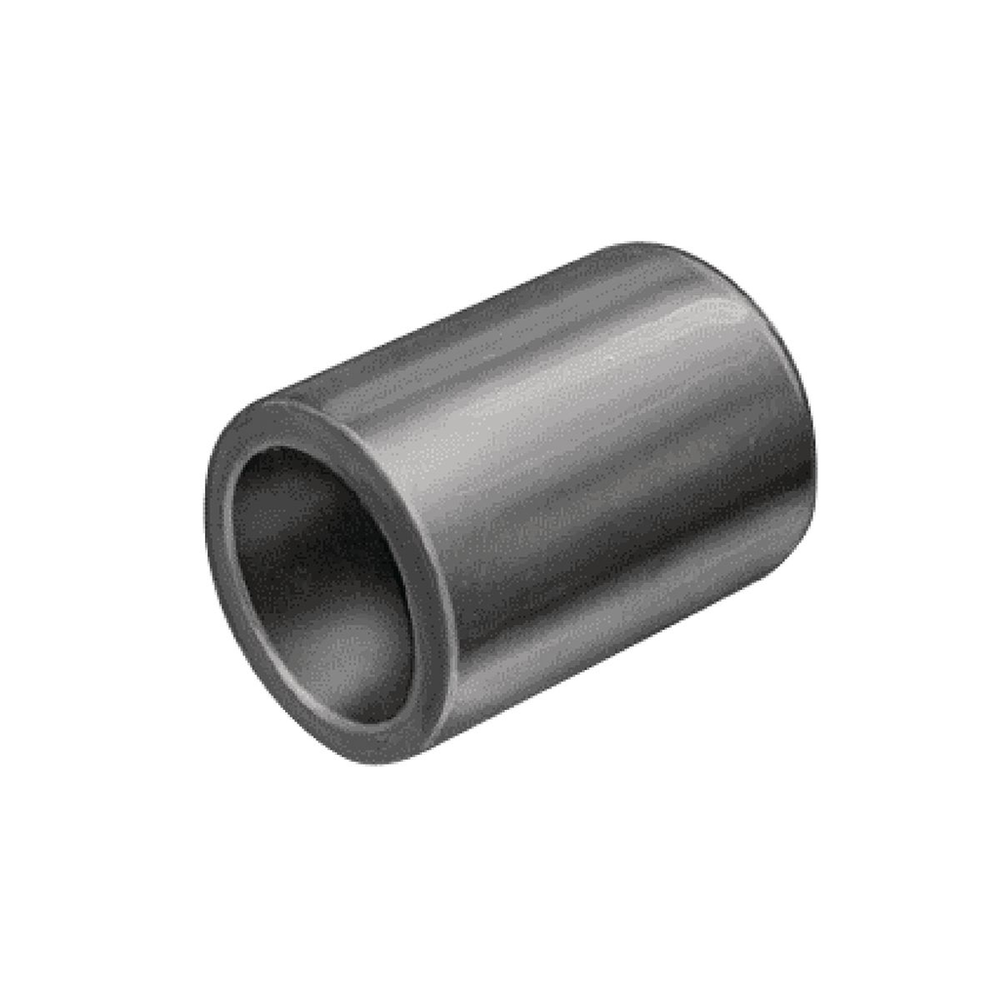

Burndy YSM6C
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Copper Compression Parallel Splice, 10380-26813 Circular Mil, 0.44" Splice Length, Short Barrel, Tin Plated.Copper Compression Parallel Splice, 10380-26813 Circular Mil, 0.44" Splice Length, Short Barrel, Tin Plated
Burndy YSM6C is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- HYLINK Type YSM seamless parallel splice connector permits wires to be laid parallel inside the connector and spliced together with the BURNDY family of HYTOOL installation tooling
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 2.745x2.685x1.935 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 1.000 lb.
- Carton - Number of Sub Packs
- 200
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810805787
- Carton - Total Units
- 200
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810805788
- Class Code
- B57
- Conductor - Copper Solid Size
- 14 AWG;13 AWG;12 AWG
- Conductor - Copper Solid Size Range
- 14 AWG-12 AWG
- Conductor - Copper Str Size
- 14 AWG;12 AWG
- Conductor - Copper Str Size Range
- 14 AWG-12 AWG
- Conductor Size
- 10,380 - 26,813 cmils
- Conductor Type
- CU C Solid-Size;CU C Str-Size
- Connector Type
- Parallel Splice
- Country of Origin
- US
- Description - Invoice
- 6 AWG PARALLEL SPLICE
- Dimension - Length Overall inch
- 0.44 in
- Dimension - Outside Diameter inch
- 0.31 in
- Dimension - Strip Length inch
- 1/2
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.312 in
- Feature - Barrel Style
- Chamfered
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Lead Time
- 12 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- No
- Order Multiple
- 200 EA
- Package - Gross Weight per Pack
- 1 lb.
- Package - GTIN - Package
- 30781810805788
- Package Height
- 2.625 in
- Package Length
- 2.625 in
- Package - Number of Sub Packs
- 200
- Package - Pack Description
- Package
- Package Quantity
- 200 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810805787
- Package - Total Units
- 200 EA
- Package Weight
- 1 lb.
- Package Width
- 1.875 in
- Plated
- Y
- Plating Type
- Tin
- Product Type
- SPLICE
- Special Features
- Features: HYLINK Type YSM Seamless Parallel Splice Connector Permits Wires To Be Laid Parallel Inside The Connector And Spliced Together With BURNDYs Compression HYTOOL, Each YSM Connector Accommodates A Wide Combination Of Round, Square, And Rectangular Copper Conductors That Have A Total Combined Circular Mil Area, The Conductors To Be Spliced Must Physically Fit Within Title Splice Without Being Forced, Wire Strip Length: 1/2 IN, Tools, Die Nest Catalog Number, Die Indentor Catalog Number: HYPRESS: Y35BH, Y39BH Tool, UV6L Die Nest, Y35P Indentor Adapter, Installation Tool: Ratchet: MR4CQ, Y1MRTC Tool, Mechanical, HYTOOL: MY29-11 or MY28 Tool, (1)
- Standard Package Quantity
- 200
- Standards - Industry Standards Met
- UL486
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- HYLINK
- Sub Class Code
- B57BK2F
- Temperature Rating
- 90
- Trade Name
- HYLINK™
- Type
- YSM
- UL Listed
- Yes
- Width
- 0.312 in
