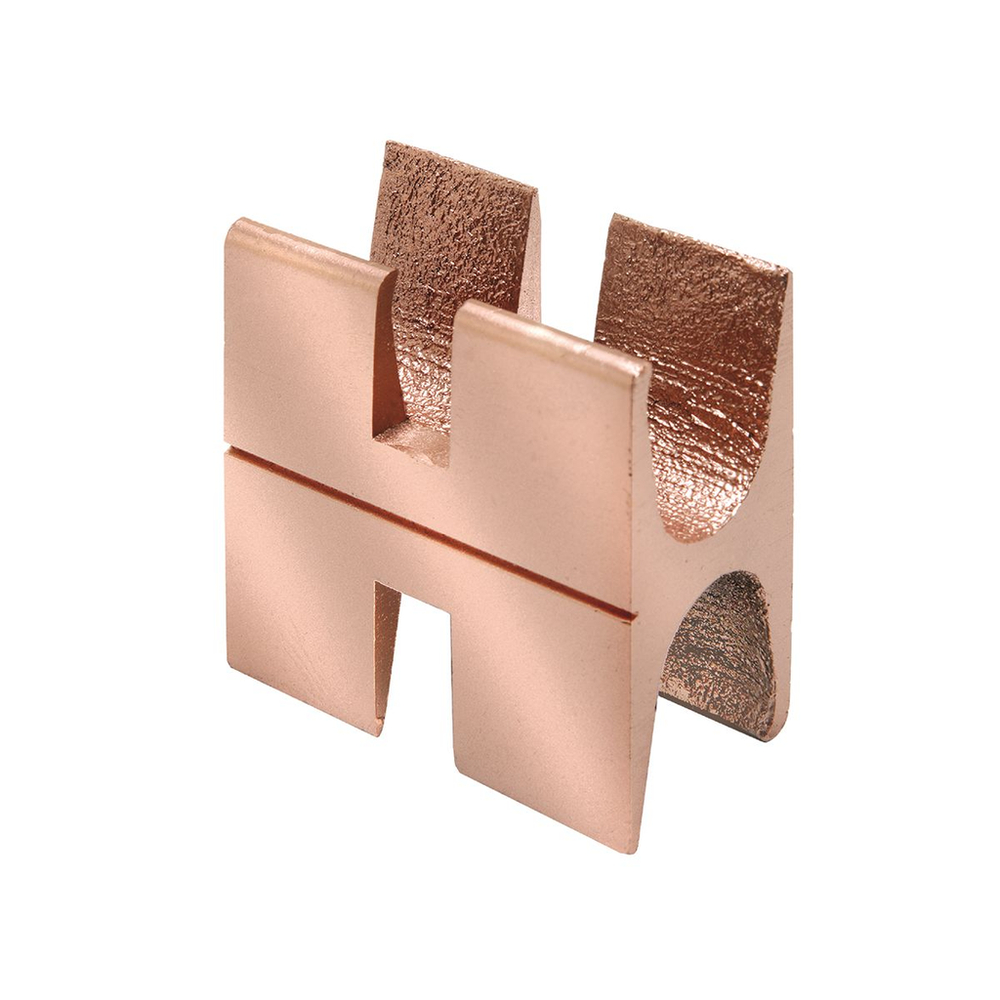

Burndy YSH2929

Certifications

• CSA Approved
  • No
• cULus
  • No
• ETL
  • No
• EU RoHS Indicator
  • Yes
• UL Recognized
  • No

Specifications

• Application
  • For High Voltage (15 KV) Power Cables With Copper Conductors
• ARRA Compliant
  • Yes
• Base Unit of Measure
  • EA
• BOX SIZE
  • 6.750x9.688x7.753 (in)
• Buy American Compliant
  • Yes
• Carton - Gross Weight per Pack
  • 11.800 lb.
• Carton - Number of Sub Packs
  • 20
• Carton - Pack Description
  • Carton
• Carton - SCC-14 Next Lower Level Sub Pack
  • 00781810036969
• Carton - Total Units
  • 20
• Case - SCC-14 Next Lower Level Sub Pack
  • 30781810036960
• Certification Agency
  • Proposition 65
• Class Code
  • B42
• Color Code
  • Purple
• Conductor - Copper Flex G Run
  • 2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
• Conductor - Copper Flex G Run Range
  • 2 AWG-250 kcmil
• Conductor - Copper Flex G Tap
  • 2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
• Conductor - Copper Flex G Tap Range
  • 2 AWG-250 kcmil
• Conductor - Copper Flex H Run
  • 2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
• Conductor - Copper Flex H Run Range
  • 2 AWG-250 kcmil
• Conductor - Copper Flex H Tap
  • 2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
• Conductor - Copper Flex H Tap Range
  • 2 AWG-250 kcmil
• Conductor - Copper Str Run
  • 2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
• Conductor - Copper Str Run Range
  • 2 AWG-250 kcmil
• Conductor - Copper Str Tap
  • 2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
• Conductor - Copper Str Tap Range
  • 2 AWG-250 kcmil
• Connector Type
  • H-Tap
• Country of Origin
  • US
• Description - Invoice
  • 250-2 CU DOUBLE H-TAP
• Die Index
  • 654
• Dimension - Height inch
  • 1.85 in
• Dimension - Length Overall inch
  • 3.00 in
• Dimension - Strip Length inch
  • 1 1/2
• Dimension - Width inch
  • 0.90 in
• Dimension - Width mm
  • 23 mm
• Each - Number of Sub Packs
  • 1
• Each - Pack Description
  • Each
• Each - Width
  • 0.9 in
• Freight Class Code
  • 16027000
• Harmonization Code
  • 8535908040
• Image Actual Or Representative
  • A
• Lead Time
  • 11 wk
• Lowest Level UOM
  • Each
• Material
  • Copper
• MSDS Flag
  • No
• Order Multiple
  • 1 EA
• Package - Gross Weight per Pack
  • 11.8 lb.
• Package - GTIN - Package
  • 30781810036960
• Package Height
  • 6.13 in
• Package Length
  • 9.38 in
• Package - Number of Sub Packs
  • 20
• Package - Pack Description
  • Package
• Package Quantity
  • 20 EA
• Package - SCC-14 Next Lower Level Sub Pack
  • 00781810036969
• Package - Total Units
  • 20 EA
• Package Weight
  • 11.8 lb.
• Package Width
  • 7.44 in
• Pallet - GTIN - Package
  • 70781810036968
• Pallet Height
  • 46.250 in
• Pallet Length
  • 48.000 in
• Pallet Weight
  • 1744.200 lb.
• Pallet Width
  • 40.000 in
• Physical Attribute - Number of Crimps Required
  • 2
• Plated
  • Y
• Plating Type
  • Tin
• Product Type
  • Compression
• Special Features
  • Features: Accommodates A Wide Range Of Run/Tap Copper Cable Combinations Including Both Flexible And Code Combinations. All (B/B, B/I, I/B, I/I) Combinations Acceptable: Each Connector Has Many Copper Cable Combination Applications Allowing Maximum Flexibility For The Design And Installation Of A System, Tap Grooves Function Independently From Each Other, Use Of One Tap Is Required, Balance May Be Used Or Left Empty: Provides Maximum Design And Installation Flexibility, Color Code On The Connector Matches Installation Die: Provides Matched System For Fast And Easy Installation, Die Index Embossed On Connector After Completion Of Crimp: Permanent Inspectability Of Installed Connectors To Ensure Consistently Reliable And Dependable Connections, Insulation Is Not Provided, Insulation Can Be Obtained From Raychem (800-272- 9243) Type HVSY Splice Kits For 15 KV Installations: A Complete IEEE 404 15 KV Installation Is Provided, Use PUADP-1 Adaptor With U Dies In Y46, The Y46 And P Dies Result In A Smooth Crimp Surface And Is Recommended For Voltages Above 600 V, Tools, Die Set Catalog Number, And (number Of Crimps): Y750 Tool, U654 Die, (4), Y46 Tool, U654 Die With PUADP-1 Adapter, (4), P654 Die, (2), Die Index: 654 Element A, Color Code: Purple, Wire Strip Length: 1-1/2 IN, Wire Entry: Double, Conductor Type: Run: Copper, Flex, Tap1: Copper Wire, Shape: H, Conductor Size (run - Range): Commercial Cable: 2 AWG - 250 KCMIL, Flex: 2 - 4/0 AWG, Conductor Size (tap Range): Tap1: Commercial Cable: 2 AWG - 250 KCMIL, Flex: 2 - 4/0 AWG
• Standard Package Quantity
  • 20
• Standards - RoHS Compliance Status
  • CM
• Stock Indicator
  • S - Shelf Stock
• Sub Brand
  • CRIMPIT
• Sub Class Code
  • B42BI3F
• Trade Name
  • CRIMPIT™
• Type
  • Taps
• UL Listed
  • No
• Width
  • 0.9 in
