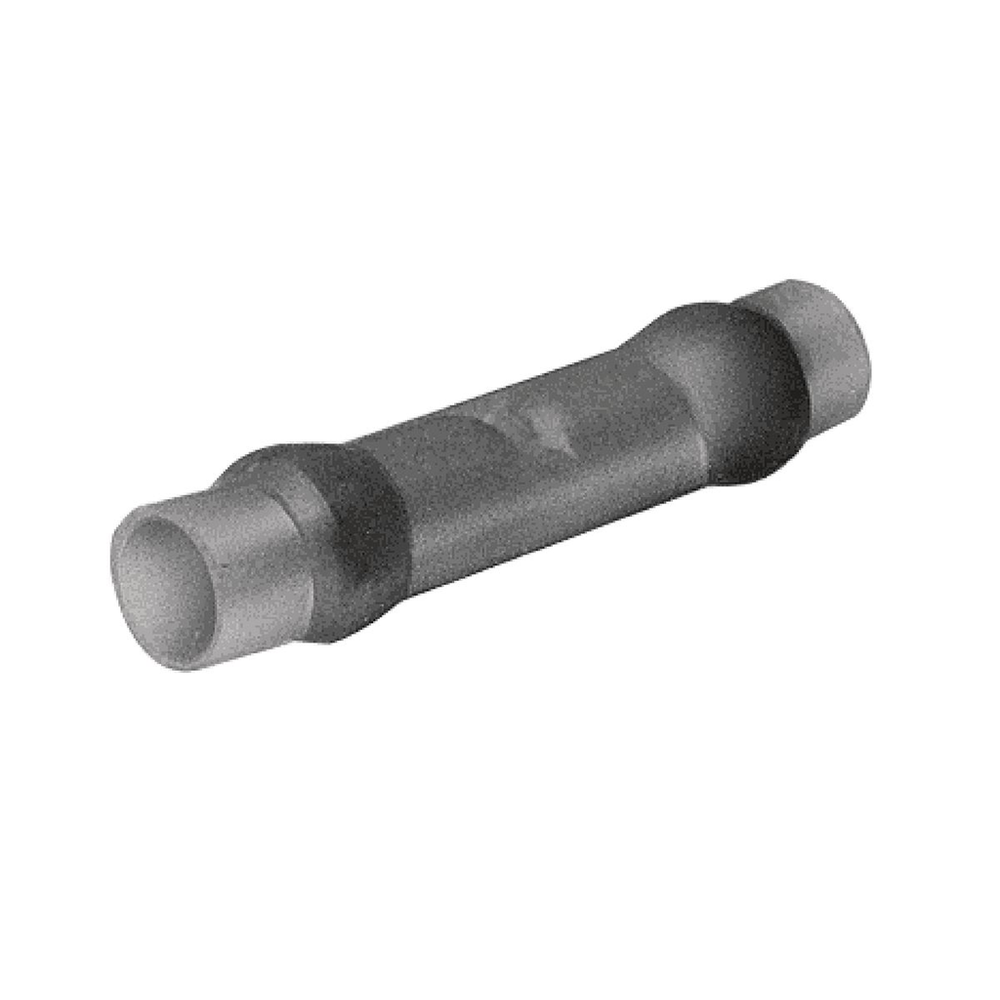

Burndy YSE14HBOX
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Nylon Splice For 16 - 14 AWG.Nylon Splice For 16 - 14 AWG
Burndy YSE14HBOX is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Splicing Aircraft And Commercial Flexible Cables
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 0.000x0.000x0.000 (in)
- Buy American Compliant
- Yes
- Cable Insulation Diameter Maximum
- 0.150 in
- Carton - Gross Weight per Pack
- 0.000 lb.
- Carton - Number of Sub Packs
- 600
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810566503
- Carton - Total Units
- 600 EA
- Case - Number of Sub Packs
- 12
- Case - Pack Description
- Case (ISO code = 'CA' for HEP)
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810566504
- Case - Total Units
- 600 EA
- Certification Agency
- Proposition 65
- Class Code
- B57
- Color Code
- Blue
- Conductor - Copper Str Aircraft Size
- AN 16;AN 14
- Conductor - Copper Str Aircraft Size Range
- AN 16-AN 14
- Conductor - Copper Str Size
- 16;14
- Conductor - Copper Str Size Range
- 16-14
- Conductor Size
- 16 - 14 AWG
- Conductor Type
- CU C Str-Size
- Connector Type
- Seamless Butt Splice
- Country of Origin
- US
- Description - Invoice
- SPLICE-16-14 AWG-NYLON
- Dimension - B Length fraction
- 3/13 in
- Dimension - B Length inch
- 0.23 in
- Dimension - Diameter Max Size inch
- 0.15 in
- Dimension - Length Overall inch
- 1.36 in
- Dimension - L Length Overall mm
- 35 mm
- Dimension - Outside Diameter inch
- 0.15 in
- Dimension - Strip Length inch
- 11/32 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.15 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8536904000
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL486
- Insulation
- Y
- Insulation Type
- Nylon
- Lead Time
- 12 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- No
- Order Multiple
- 50 EA
- Package - Gross Weight per Pack
- 0.25 lb.
- Package - GTIN - Package
- 30781810566504
- Package Height
- 4.25 in
- Package Length
- 2.06 in
- Package - Number of Sub Packs
- 50
- Package - Pack Description
- Package
- Package Quantity
- 50 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810566503
- Package - Total Units
- 50 EA
- Package Weight
- 0.25 lb.
- Package Width
- 2.06 in
- Pallet - GTIN - Package
- 70781810566502
- Pallet Height
- 44.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 763.800 lb.
- Pallet Width
- 40.000 in
- Plated
- Y
- Plating Type
- Tin
- Product Type
- SPLICE
- Special Features
- Features: The Types YSE And YSE-H INSULINKS Are High Quality Nylon Insulated Butt Splices Designed For Splicing Aircraft And Commercial Flexible Cables, Manufactured From Tin Plated, Seamless Electrolytic Copper Tubing With Integral Barrel/Insulation Grip: Provides Maximum Conductivity And Tensile Strength, Plus Excellent Cable Support And Strain Relief, Split Heavy Wall Insulation Grip: Provides Stronger Insulation Grip And Strain Relief, Smooth Funnel Entry: Provides Easy Wire Insertion, Transparent Nylon Insulation: Permits Easy Wire Inspection, Package: Box, Insulation Support: No, Installation Tool: Y10D Tool, Ratchet: MR8-33S-1 Tool, Color Code: Blue, Conductor Type: Commercial/Aircraft Stranded Copper, Wire Strip Length: 11/32 IN
- Standard
- UL486
- Standard Package Quantity
- 50
- Standards - Industry Standards Met
- UL486
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- N - Non-stock
- Sub Brand
- INSULUG
- Sub Class Code
- B57BL8F
- Temperature Rating
- 105
- Trade Name
- INSULINK™
- Type
- YSE-H
- UL Listed
- Yes
- Voltage - Maximum
- 600 V
- Width
- 0.15 in
