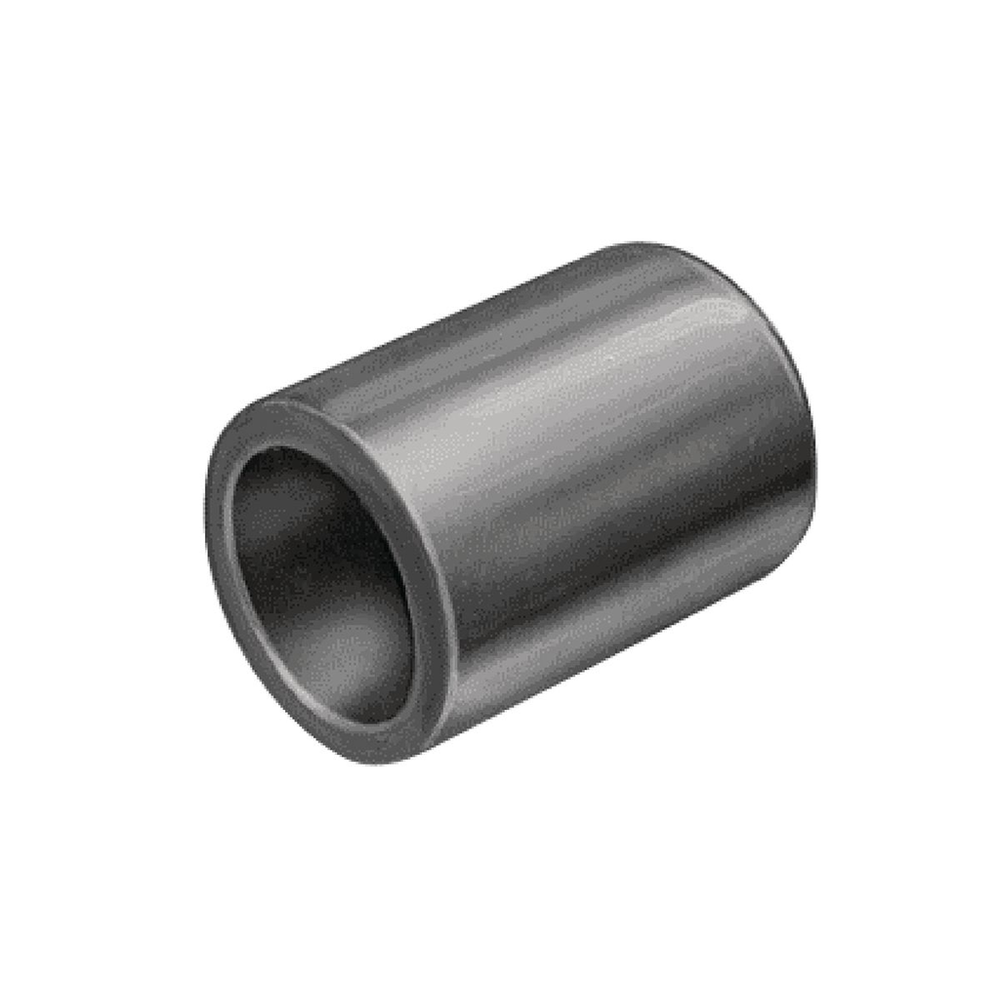

Burndy YSCM212
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
167,380 - 211,820 Circular Mils, CU, Internal Chamfer, Tin Plated, UL/CSA 90° Up to 35kV, Purple Color Code, 15 Die Index.167,380 - 211,820, Circular Mils, CU, SPLICE
Burndy YSCM212 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- Yes
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- Wire Splice
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 5.125x7.373x6.438 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 10.000 lb.
- Carton - Number of Sub Packs
- 200
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810358573
- Carton - Total Units
- 200
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810358574
- Certification Agency
- Proposition 65
- Class Code
- B55
- Color Code
- Purple
- Conductor - Copper Str Size
- 3/0 AWG;4/0 AWG
- Conductor - Copper Str Size Range
- 3/0 AWG-4/0 AWG
- Conductor - Material
- COPPER
- Conductor Size
- 167,380-211,820 CMILS
- Conductor Type
- CODE
- Connector Type
- Splice
- Country of Origin
- US
- Description - Invoice
- 211.8 KCM PARALLEL HYLNK
- Description - Slang
- SPLICE CODE PARALLEL
- Die Index
- 15
- Dimension - Length Overall inch
- 0.88 in
- Dimension - L Length Overall mm
- 22 mm
- Dimension - Outside Diameter inch
- 0.78 in
- Dimension - Strip Length inch
- 1-1/16
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.78 in
- Feature - Barrel Style
- Chamfered
- Feature - Barrel Type
- Standard
- Finish
- Tin-Plated
- Finish Type
- Tin-Plated
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL 486A-486B
- Lead Time
- 12 wk
- Lowest Level UOM
- Each
- Material
- COPPER
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 10 lb.
- Package - GTIN - Package
- 30781810358574
- Package Height
- 4.5 in
- Package Length
- 7.06 in
- Package - Number of Sub Packs
- 200
- Package - Pack Description
- Package
- Package Quantity
- 200 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810358573
- Package - Total Units
- 200 EA
- Package Weight
- 10 lb.
- Package Width
- 6.13 in
- Pallet - GTIN - Package
- 70781810358572
- Pallet Height
- 46.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1895.000 lb.
- Pallet Width
- 40.000 in
- Plated
- Y
- Plating Type
- Tin - Electro Plated
- Product Type
- PARALLEL SPLICE
- Special Features
- Features: Type YSCM HYLINK Seamless Parallel Splice Connectors Permit Stranded Wires To Be Laid Parallel Inside The Connector And Spliced Together With BURNDY Compression Tools, Each YSCM Connector Accommodates A Wide Range Of Conductors And Is Color-Coded To Ensure Proper Tool And Die Match, YSCM Connectors Are UL486A Listed For Applications Up To 600V And CSA Listed, Die Index: 15, Wire Strip Length: 1-1/16 IN, Tools, Die Set Catalog Number, And (number Of Crimps): OUR840, Y500CTHS, PAT60018V Tool, X28RT, W28RT Die, Y35, Y750, PAT750 Tool, U28RT Die, Color Code: Purple
- Standard
- UL 486A-486B
- Standard Package Quantity
- 200
- Standards - Industry Standards Met
- UL 486A-486B
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- N - Non-stock
- Sub Brand
- HYLINK
- Sub Class Code
- B55BHUF
- Trade Name
- HYLINK™
- Type
- YSCM
- UL Listed
- No
- Voltage - Maximum
- 600 V
- Voltage Rating
- 35 kV
- Width
- 0.78 in
- Wire Range
- 167,380 - 211,820 Circular Mils
