Burndy YS42A1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

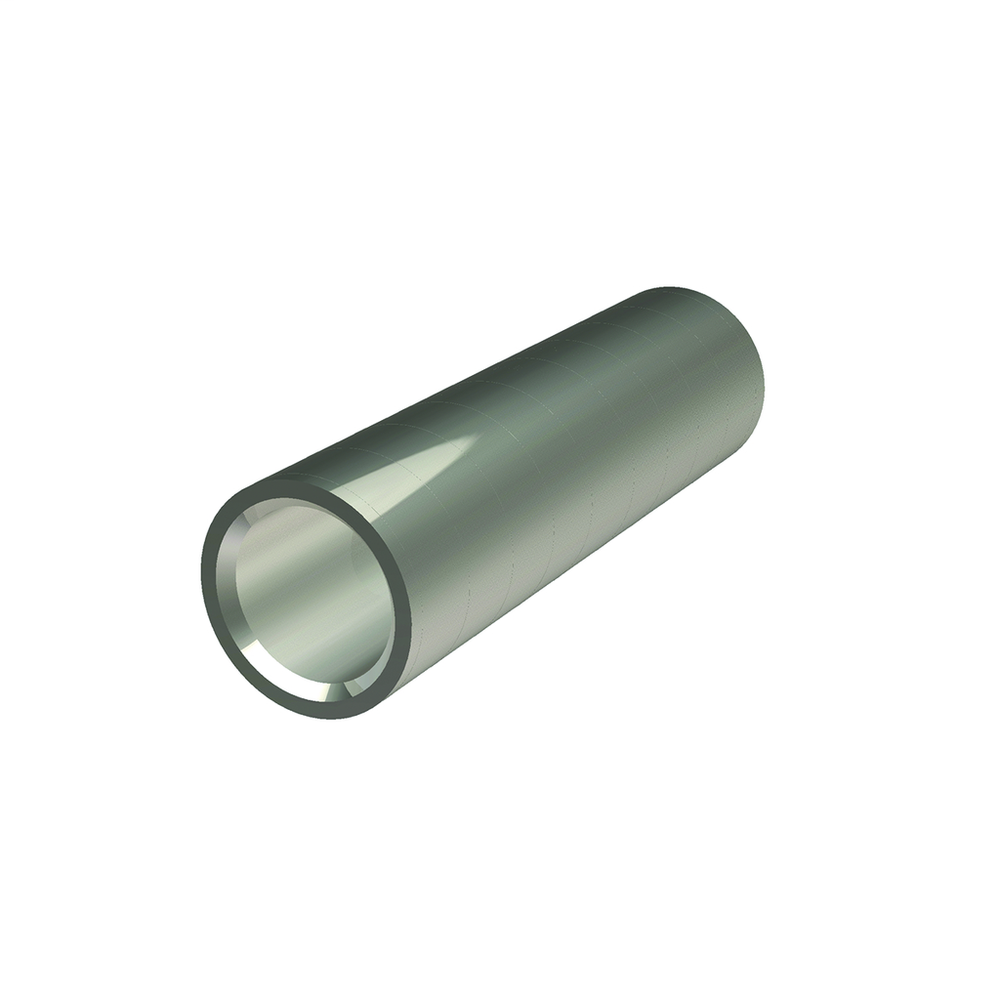

Aluminium Tube Hylink, 600 kcmil-900 kcmil, 5.26 IN L, 303 Index.YS42A1
Burndy YS42A1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications and Compliance
- Certification - CSA Approved
- No
- Certification - cULus
- No
- Certification - ETL
- No
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL468A-468B
- Standards - Industry Standards Met
- UL468A-468B
- Standards - RoHS Compliance Status
- CM
- UL Listed
- Yes
Conductor Related
- Conductor - AL Str Size
- 600 kcmil;636 kcmil;650 kcmil;700 kcmil;715 kcmil;750 kcmil;795 kcmil;800 kcmil;874 kcmil;900 kcmil
- Conductor - AL Str Size Range
- 600 kcmil-900 kcmil
- Conductor - Copper Str Size
- 600 kcmil
- Conductor - Copper Str Size Range
- 600 kcmil
Dimensions
- Dimension - B Length inch
- 2.50 in
- Dimension - Length Overall inch
- 5.26 in
- Dimension - L Length Overall mm
- 134 mm
- Dimension - Strip Length inch
- 2-7/8 in
- Length
- 5.29 in
- Outside Diameter
- 1.5 in
Electrical Ratings
- Rating - KVA
- 35 kV
- Rating - Minimum Voltage
- 600
- Voltage - Maximum
- 35000
General
- Application
- For use on all combinations of Aluminium to Aluminium, Aluminium to copper, and copper to copper M177 conductor combinations
- Color Code
- Gray
- Connector Type
- Splice
- Die Index
- 303
- Feature - Barrel Style
- Chamfered
- Feature - Barrel Type
- Long
- Item Type
- 3B
- Material
- Aluminum
- Plated
- Y
- Plating Type
- Tin - Electro Plated
- Sub Brand
- SPLICES, HYSPLICE
- Temperature Rating
- 194
- Trade Name
- HYLINK™
- Type
- YSA
- UPC
- 781810637135
- UPC 12 Digit
- 7818106371355
