Burndy YS27A1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

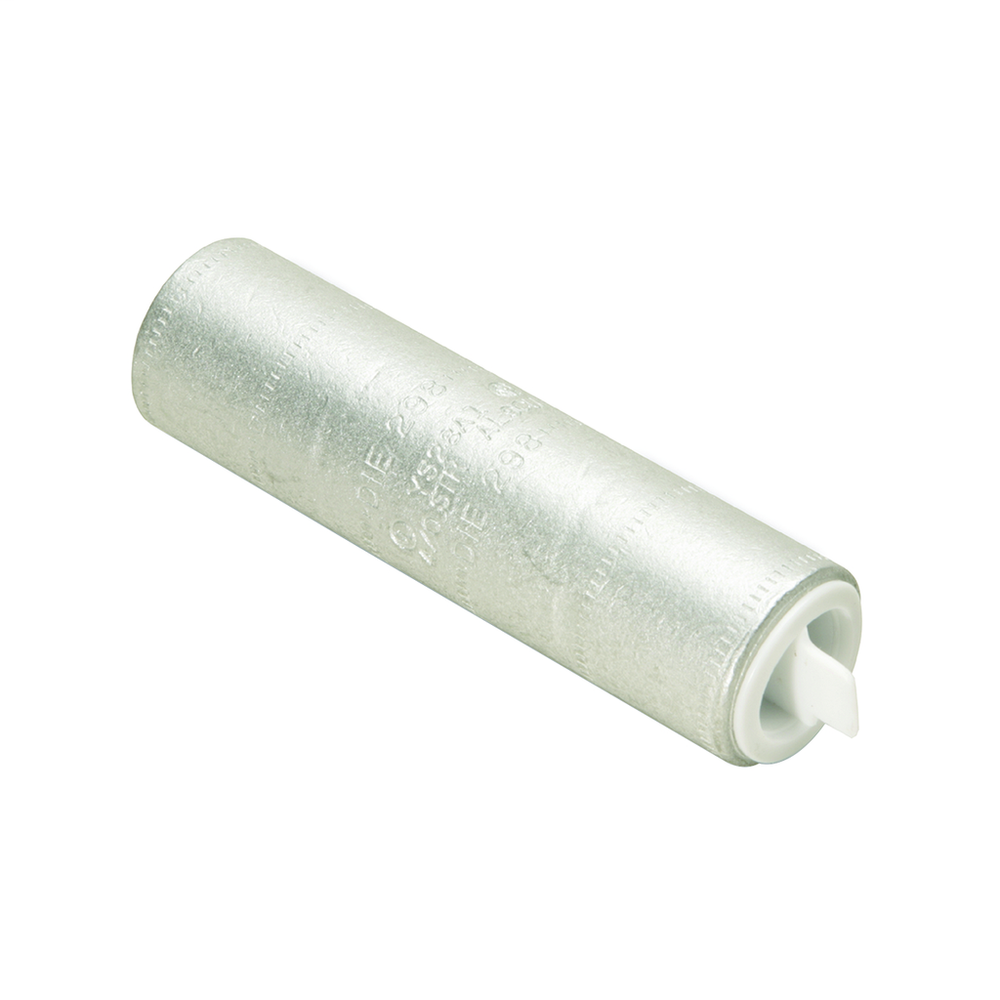

Aluminum Compression Splice, 3/0 AWG, 2.88" Splice Length, Long Barrel, Belled End, Tin Plated.YS27A1
Burndy YS27A1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications and Compliance
- Certification - CSA Approved
- No
- Certification - cULus
- No
- Certification - ETL
- No
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL468A-468B
- Standards - Industry Standards Met
- UL468A-468B
- Standards - RoHS Compliance Status
- CM
- UL Listed
- Yes
Conductor Related
- Conductor - AL Str Size
- 3/0 AWG
- Conductor - AL Str Size Range
- 3/0 AWG
- Conductor - Copper Str Compact Size
- 3/0
- Conductor - Copper Str Size
- 3/0 AWG
- Conductor - Copper Str Size Range
- 3/0 AWG
Dimensions
- Dimension - B Length fraction
- 1-5/16 in
- Dimension - B Length inch
- 1.31 in
- Dimension - Length Overall inch
- 2.88 in
- Dimension - L Length Overall mm
- 73 mm
- Dimension - Outside Diameter inch
- 0.76 in
- Dimension - Strip Length inch
- 1-1/2 in
- Length
- 2.88 in
- Outside Diameter
- 0.76 in
Electrical Ratings
- Rating - KVA
- 35 kV
- Rating - Minimum Voltage
- 600
- Voltage - Maximum
- 35000
General
- Application
- For Use On All Combinations Of Aluminum To Aluminum, Aluminum To Copper, And Copper To Copper Conductor Combinations
- Color Code
- Ruby
- Connector Type
- Splice
- Die Index
- 467
- Feature - Barrel Style
- Chamfered
- Feature - Barrel Type
- Long
- Item Type
- 3A
- Material
- Aluminum
- Plated
- Y
- Plating Type
- Tin - Electro Plated
- Sub Brand
- HYLINK
- Temperature Rating
- 194
- Trade Name
- HYLINK™
- Type
- YS-A, Standard Barrel
- UPC
- 781810757208
- UPC 12 Digit
- 7818107572088
