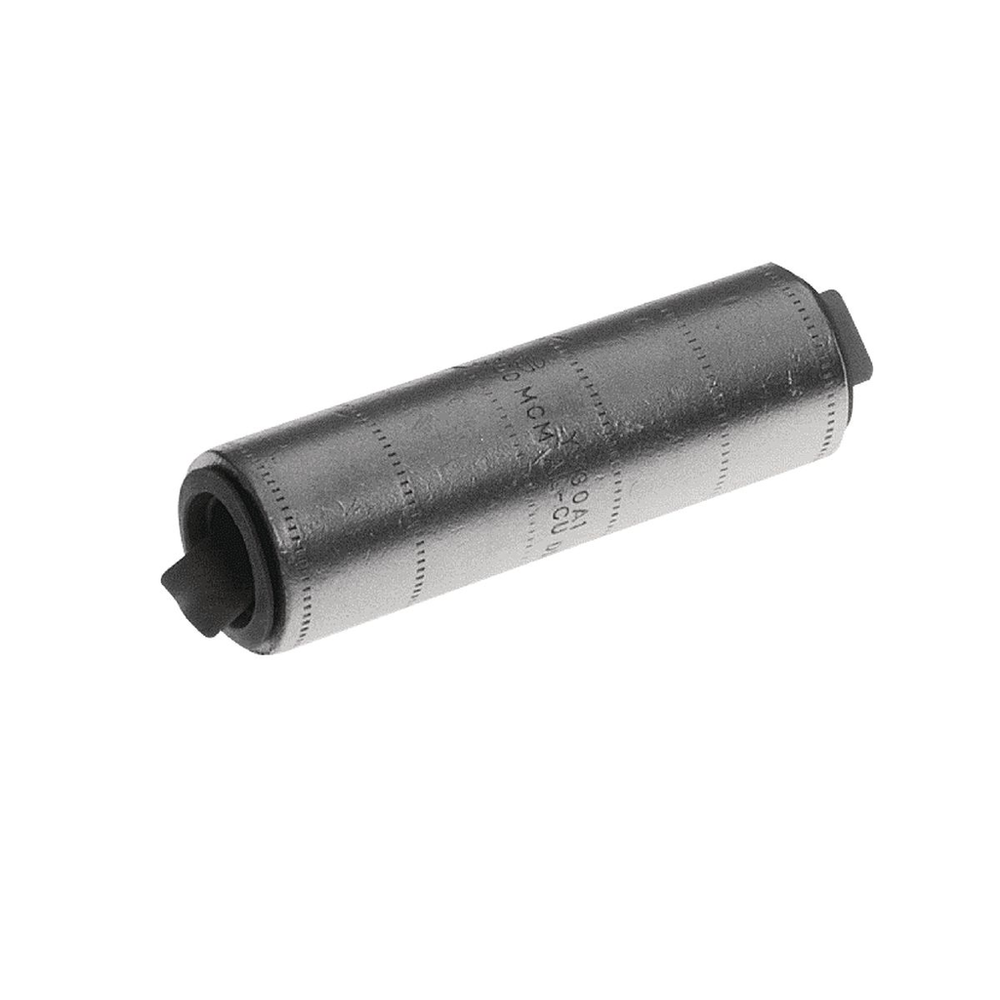

Burndy YS12AG1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
AL Splice, AL9CU, Internal Chamfer, Tin Plated, Prefilled PENETROX™ A13 oxide inhibitor, End Cap, UL/CSA, 90°C, Up to 35kV, Color Code, Die Index.12 AWG, AL, SPLICE, AL9CU
Burndy YS12AG1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- UL Recognized
- No
Specifications
- Application
- Wire Splice
- Base Unit of Measure
- EA
- BOX SIZE
- 2.492x2.996x3.236 (in)
- Carton - Gross Weight per Pack
- 0.140 lb.
- Carton - Number of Sub Packs
- 20
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810745007
- Carton - Total Units
- 20
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810745008
- Certification Agency
- Proposition 65
- Class Code
- B55
- Conductor - AL Str Size
- 12 AWG
- Conductor - AL Str Size Range
- 12 AWG
- Conductor - Copper Str Size
- 12 AWG
- Conductor - Copper Str Size Range
- 12 AWG
- Conductor - Material
- ALUMINUM / COPPER
- Conductor Size
- 12 AWG
- Conductor Type
- CODE
- Connector Type
- DUAL RATED
- Country of Origin
- US
- Description - Slang
- AL SPLICE UNINSULATED
- Dimension - B Length fraction
- 7/16 in
- Dimension - B Length inch
- 0.45 in
- Dimension - Length Overall inch
- 1.03 in
- Dimension - L Length Overall mm
- 26.16 mm
- Dimension - Outside Diameter inch
- 0.21 in
- Dimension - Strip Length inch
- 5/8
- Feature - Barrel Style
- Chamfered
- Feature - Barrel Type
- Long
- Finish Type
- Tin-Plated
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL 486A-486B
- Lead Time
- 12 wk
- Material
- ALUMINUM
- Package - GTIN - Package
- 30781810745008
- Package Quantity
- 20 EA
- Package - Total Units
- 20 EA
- Package Weight
- 0.000 lb.
- Plated
- N
- Plating Type
- Unplated
- Product Type
- SPLICE
- Standard Package Quantity
- 20
- Standards - Industry Standards Met
- UL 486A-486B
- Standards - RoHS Compliance Status
- CM
- Sub Class Code
- B55BI8F
- Temperature Rating
- 194
- Trade Name
- HYLINK™
- UL Listed
- Yes
- Voltage - Maximum
- 35000
- Voltage Rating
- 35 kV
- Wire Size
- 12 AWG
