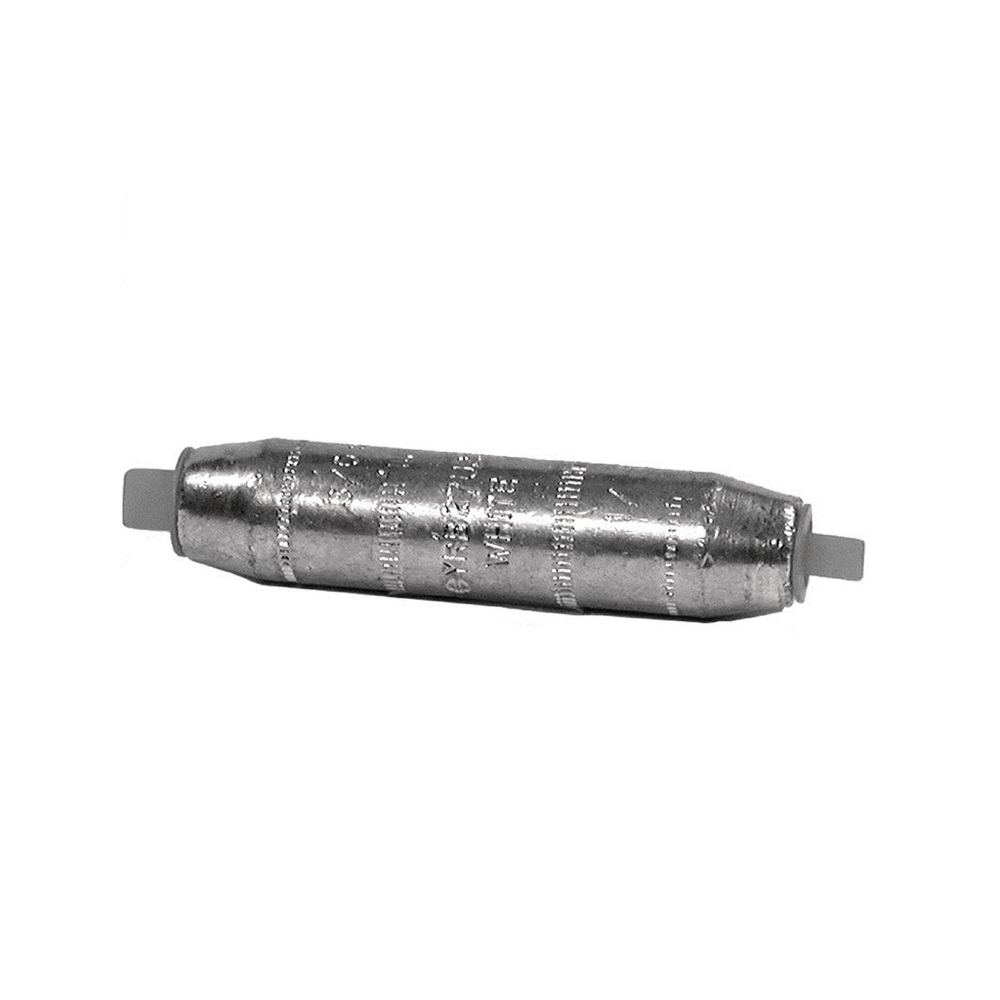

Burndy YRB34U25
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Splice reducer is rated to accommodate both alumium and copper wire, barrel is designed with an internal chamfer for smooth wire insertion, tin plated for corrosion resistance, prefilled PENETROX™ A13 oxide inhibitor, comes with color coded end caps, UL 486A-486B, CSA, rated up to 90°C and 35kV.Aluminum Tin Plated Splice Reducer, Barrel A 1/0 AWG, Barrel B 2 AWG, AL9CU
Burndy YRB34U25 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- UL Recognized
- No
Specifications
- Application
- Wire Reducing Splice
- Base Unit of Measure
- EA
- BOX SIZE
- 5.125x7.373x6.438 (in)
- Carton - Gross Weight per Pack
- 8.250 lb.
- Carton - Number of Sub Packs
- 25
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810224496
- Carton - Total Units
- 25
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810224497
- Certification Agency
- Proposition 65
- Class Code
- B55
- Color Code
- Pink
- Conductor - AL Str Run
- 500 KCMIL
- Conductor - AL Str Size A
- 500
- Conductor - AL Str Size A Range
- 500
- Conductor - AL Str Size B
- 1/0
- Conductor - AL Str Size B Range
- 1/0
- Conductor - AL Str Tap
- 1/0 AWG
- Conductor - Copper Str Run
- 500 KCMIL
- Conductor - Copper Str Size
- 500
- Conductor - Copper Str Size B
- 1/0
- Conductor - Copper Str Size B Range
- 1/0
- Conductor - Copper Str Tap
- 1/0 AWG
- Conductor - Material
- ALUMINUM / COPPER
- Conductor Type
- CODE
- Connector Type
- DUAL RATED
- Country of Origin
- US
- Description - Slang
- Aluminum Reducers
- Die Index
- 300
- Dimension - B Length fraction
- 1-3/16 in
- Dimension - B Length inch
- 1.17 in
- Dimension - Length Overall inch
- 3.06 in
- Dimension - L Length Overall mm
- 78 mm
- Dimension - Outside Diameter inch
- 1.31 in
- Dimension - Strip Length inch
- 1-1/4
- Feature - Barrel Style
- Chamfered
- Finish Type
- Tin-Plated
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL 486A-486B
- Lead Time
- 12 wk
- Material
- ALUMINUM
- Package - GTIN - Package
- 30781810224497
- Package Quantity
- 25 EA
- Package - Total Units
- 25 EA
- Package Weight
- 0.000 lb.
- Pallet - GTIN - Package
- 70781810224495
- Pallet Height
- 46.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 2487.000 lb.
- Pallet Width
- 40.000 in
- Plated
- Y
- Plating Type
- Tin - Electro Plated
- Product Type
- SPLICE REDUCER
- Standard Package Quantity
- 25
- Standards - Industry Standards Met
- UL 486A-486B
- Standards - RoHS Compliance Status
- CM
- Sub Class Code
- B55BIKF
- Temperature Rating
- 194
- Trade Name
- HYREDUCER™
- UL Listed
- Yes
- Voltage - Maximum
- 35000
