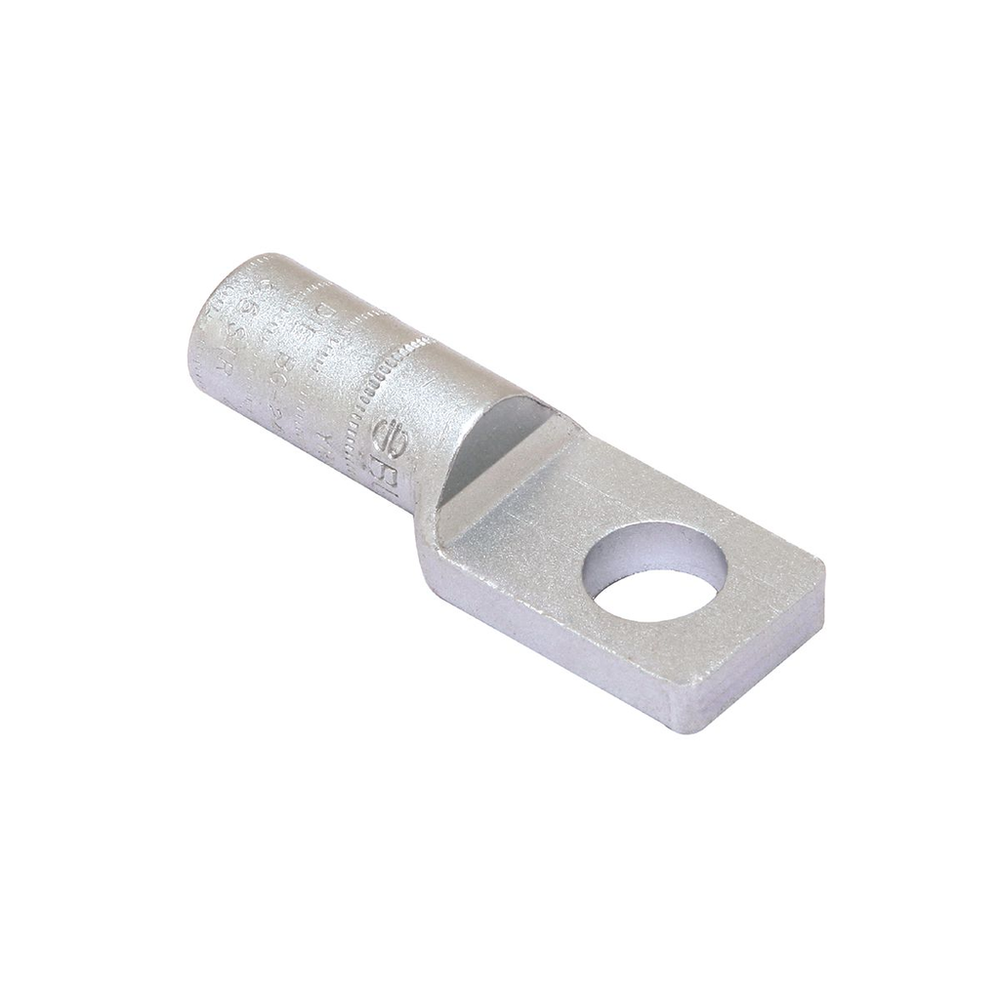

Burndy YRAL1CU
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
AL compression lug for joining AL and CU cable to transformer and equipment pads, Prefilled with PENETROXAL compression lug for joining AL and CU cable to transformer and equipment pads, Prefilled with PENETROX
Burndy YRAL1CU is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Joining Aluminum And Copper Cable To Transformer And Equipment Pads
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 5.125x7.373x6.438 (in)
- Buy American Compliant
- Contact Manufacturer
- Carton - Gross Weight per Pack
- 6.000 lb.
- Carton - Number of Sub Packs
- 50
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810810125
- Carton - Total Units
- 50
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810810126
- Class Code
- B30
- Conductor - ACSR Str Size
- 2 (6/1) Sparrow AWG;2 (7/1) Sparate AWG
- Conductor - ACSR Str Size Range
- 2 (6/1) Sparrow AWG-2 (7/1) Sparate AWG
- Conductor - AL Str Size
- 2 AWG;1 AWG
- Conductor - AL Str Size Range
- 2 AWG - 1 AWG
- Conductor - Copper Str Size
- 2 AWG;1 AWG
- Conductor - Copper Str Size Range
- 2 AWG - 1 AWG
- Construction Material - Main
- Aluminum
- Country of Origin
- US
- Description - Invoice
- 2 AL/CU/ACSR 1 HOLE LUG
- Die Index
- 249;K-840
- Dimension - B Length fraction
- 3-1/4 in
- Dimension - B Length inch
- 1.43 in
- Dimension - D inch
- 1.28 in
- Dimension - Length Overall inch
- 3.19 in
- Dimension - L Length Overall mm
- 81 mm
- Dimension - N inch
- 0.62 in
- Dimension - Outside Diameter inch
- 0.91 in
- Dimension - Pad Width inch
- 0.91 in
- Dimension - Strip Length inch
- 1 1/2 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.93 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Lead Time
- 12 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- MSDS Flag
- No
- Order Multiple
- 50 EA
- Package - Gross Weight per Pack
- 6 lb.
- Package - GTIN - Package
- 30781810810126
- Package Quantity
- 50 EA
- Package Weight
- 0.000 lb.
- Pallet - GTIN - Package
- 70781810810124
- Pallet Height
- 46.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1821.000 lb.
- Pallet Width
- 40.000 in
- Physical Attribute - Pad Configuration
- 1 Hole
- Physical Attribute - Tongue Angle
- Straight
- Physical Attribute - Tongue Type
- Standard
- Plated
- N
- Plating Type
- Unplated
- Prefilled Oxide Inhibitor
- Y
- Product Type
- Compression
- Special Features
- Features: Aluminum HYLUG For Joining Aluminum And Copper Cable To Transformer And Equipment Pads, HYLUG Is Pre-Filled With PENETROX Joint Compound And Capped, Installed With Standard Tooling, Five Die Sets Install Fourteen Terminal Size, Overlap Crimps, Tools, Die Set Catalog Number, And (number Of Crimps): MD6, MD7 Tool, W249, WK840 Die, Y35, Y750 Tool, U249, UK-840 Die, Y45 Tool, U249, UK-840 Die With PT-6515 Adapter, Y46 Tool, U249, UK-840 Die With PUADP-1 Adapter, Tongue Angle: Straight, Conductor Type: ACSR, Copper, Aluminum Concentric And Compact, Die Index: 249 Or K840
- Standard Package Quantity
- 50
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- HYLUG
- Sub Class Code
- B30B47F
- Thickness - Pad
- 0.25 in
- Trade Name
- HYLUG™
- Type
- YRA
- UL Listed
- No
- Width
- 0.93 in
