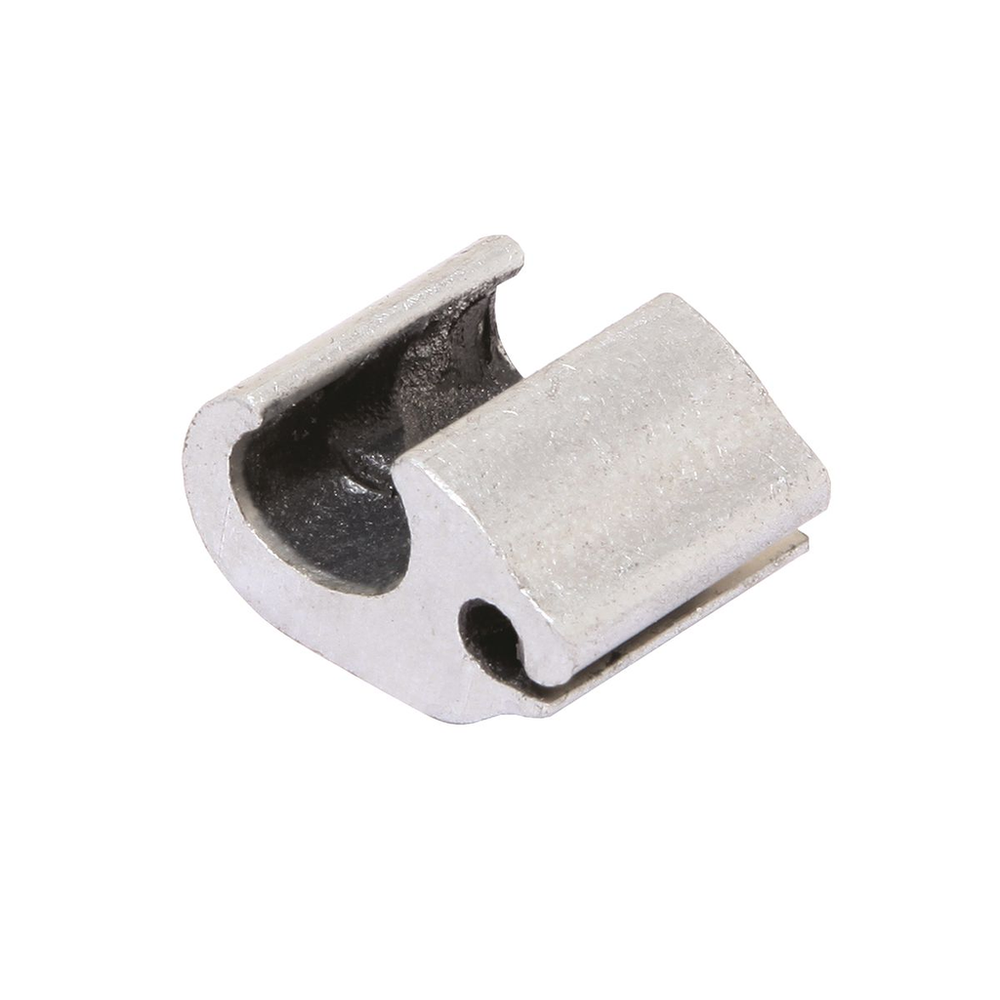

Burndy YPC28U26
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Figure 6 shape connector separates run and tap wires and minimizes galvanic corrosion of conductors,Run ACSR,5005:1/0-4/0.Figure 6 shape connector separates run and tap wires and minimizes galvanic corrosion of conductors, Run ACSR, 5005:1/0-4/0
Burndy YPC28U26 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Combinations Of Copper, Aluminum, ACSR, 6201, 5005 And Compressed And Compact Conductors
- ARRA Compliant
- No
- Base Unit of Measure
- EA
- Buy American Compliant
- No
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810136508
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810136509
- Class Code
- B30
- Conductor - ACSR Str Run
- 1/0 AWG, 2/0 AWG,3/0 AWG,4/0 AWG
- Conductor - ACSR Str Run Range
- 1/0 AWG-4/0 AWG
- Conductor - ACSR Str Tap
- 6 AWG, 1/0 AWG
- Conductor - ACSR Str Tap Range
- 6 AWG-1/0 AWG
- Conductor - AL Str Run
- 1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
- Conductor - AL Str Run Range
- 1/0 AWG-4/0 AWG
- Conductor - AL Str Tap
- 3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG
- Conductor - AL Str Tap Range
- 3 AWG-2/0 AWG
- Conductor - Copper Str Run
- 1/0 AWG, 2/0 AWG, 3/0 AWG, 4/0 AWG
- Conductor - Copper Str Run Range
- 1/0 AWG, 2/0 AWG, 3/0 AWG, 4/0 AWG
- Conductor - Copper Str Tap
- 6 AWG, 2/0 AWG
- Conductor - Copper Str Tap Range
- 6 AWG-2/0 AWG
- Conductor Type
- AL C Str-Run;CU C Str-Run;CU C Solid-Run;ACSR C Str-Run;AL C Str-Tap;CU C Str-Tap;CU C Solid-Tap;ACSR C Str-Tap
- Country of Origin
- MX
- Description - Invoice
- 4/0-3/0R 1/O-2/0T AL/CU/
- Die Index
- D3
- Dimension - Height inch
- 2.06 in
- Dimension - Length Overall inch
- 2.12 in
- Dimension - L Length Overall mm
- 54 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1.1 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908040
- Image Actual Or Representative
- A
- Lead Time
- 12 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 6.75 lb.
- Package - GTIN - Package
- 30781810136509
- Package Height
- 6.13 in
- Package Length
- 9.38 in
- Package - Number of Sub Packs
- 25
- Package - Pack Description
- Package
- Package Quantity
- 25 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810136508
- Package - Total Units
- 25 EA
- Package Weight
- 6.75 lb.
- Package Width
- 7.44 in
- Plated
- N
- Plating Type
- Unplated
- Product Type
- Compression
- Special Features
- Features: Extra Wide Range Universal Connector, Two Dies And 5 Connectors Take Run Sizes 1/0- 600 KCMIL, And Tap Sizes 6-400 KCMIL, Wide Range Made Possible By Long Ram Travel Of BURNDY HYPRESS Tools, Figure 6- Shape Separates Run And Tap Wires, And Minimizes Galvanic Corrosion Of Conductors, Connector Can Be Gripped In Tool And Slipped Over Line For Easy Installation, Pre-Filled With PENETROX Joint Compound And Stripsealed, Conductor Type: ACSR, 5005, Aluminum And Copper, Shape: 6, Die Index: D3 Element A, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y750 Tool, U-D3 Die, (2), Y45 Tool, U-D3 Die With PT-6515 Adapter, (2), Y46 Tool, U-D3 Die With PUADP-1 Adapter, (2)
- Standard Package Quantity
- 25
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- N - Non-stock
- Sub Brand
- CRIMPIT
- Sub Class Code
- B30B3PF
- Trade Name
- CRIMPIT™
- Type
- YPC-U
- UL Listed
- No
- Width
- 1.1 in
