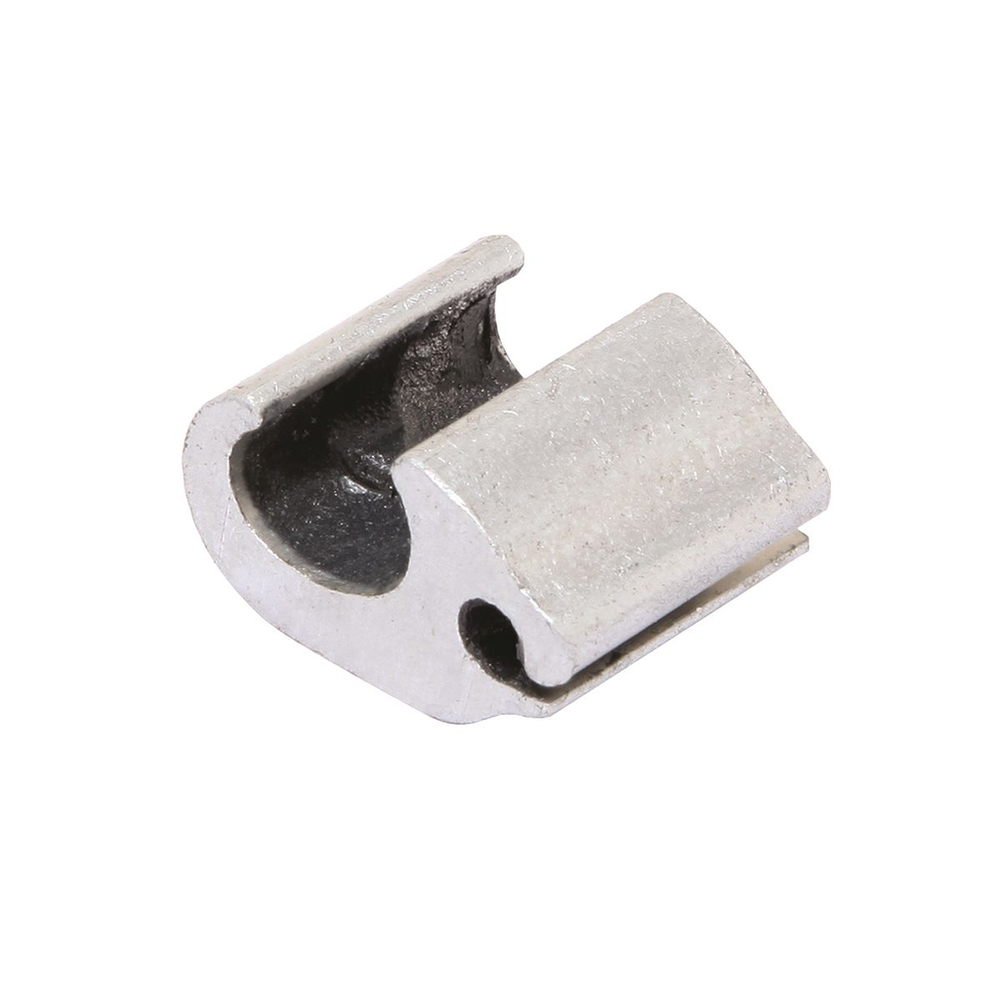

Burndy YPC26R8U
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Compact compression connector designed to tap small lighting wires from secondariesCompact compression connector designed to tap small lighting wires from secondaries. Figure 6-shape separates run and tap, and minimizes galvanic corrosion.
Burndy YPC26R8U is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Combinations Of Copper, Aluminum, ACSR, Compressed And Compact Conductors
- ARRA Compliant
- No
- Base Unit of Measure
- EA
- Buy American Compliant
- No
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810137376
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810137377
- Class Code
- B30
- Conductor - ACSR Str Run
- 2 (6/1) Sparrow AWG;2 (7/1) Sparate AWG;1 (6/1) Robin AWG;1/0 (6/1) Raven AWG;2/0 (6/1) Quail AWG;3/0 (6/1) Pigeon AWG
- Conductor - ACSR Str Run Range
- 2 (6/1) Sparrow AWG-3/0 (6/1) Pigeon AWG
- Conductor - AL Str Run
- 1 AWG;1/0 AWG;2/0 AWG;3/0 AWG
- Conductor - AL Str Run Range
- 1 AWG-3/0 AWG
- Conductor - AL Str Tap
- 8 AWG
- Conductor - Copper Solid Run
- 18 AWG
- Conductor - Copper Solid Tap
- 14 AWG
- Conductor - Copper Str Run
- 1 AWG;1/0 ;2/0 AWG;3/0 AWG
- Conductor - Copper Str Run Range
- 1 AWG-3/0 AWG
- Conductor - Copper Str Tap
- 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG
- Conductor - Copper Str Tap Range
- 14 AWG-8 AWG
- Conductor Type
- AL C Str-Run;CU C Str-Run;CU C Solid-Run;ACSR C Str-Run;AL C Str-Tap;CU C Str-Tap;CU C Solid-Tap
- Country of Origin
- MX
- Description - Invoice
- 2-3/0R 14-8T AL/CU/ACSR
- Die Index
- O
- Dimension - Height inch
- 1.30 in
- Dimension - Length Overall inch
- 0.75 in
- Dimension - L Length Overall mm
- 19 mm
- Dimension - Width inch
- 0.73 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.73 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908040
- Image Actual Or Representative
- A
- Lead Time
- 10 wk
- Lowest Level UOM
- Each
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 3 lb.
- Package - GTIN - Package
- 30781810137377
- Package Height
- 6.13 in
- Package Length
- 9.38 in
- Package - Number of Sub Packs
- 100
- Package - Pack Description
- Package
- Package Quantity
- 100 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810137376
- Package - Total Units
- 100 EA
- Package Weight
- 3 lb.
- Package Width
- 7.44 in
- Plated
- N
- Plating Type
- Unplated
- Product Type
- Compression
- Special Features
- Features: Compact Compression Connector Designed To Tap Small Lighting Wires From Secondaries, Figure 6 -Shape Separates Run And Tap, And Minimizes Galvanic Corrosion, Connector Can Be Gripped In Tool And Slipped Over Line For Easier Installation, Pre-Filled With PENETROX Joint Compound And Stripsealed, Conductor Type: ACSR, Compressed ACSR, Aluminum And Copper, Compressed Aluminum, Shape: 6, Tools, Die Set Catalog Number, And (number Of Crimps): MD6, MD7 Tool, W-O Die, (2), Y35, Y750 Tool, U-O Die, (1), Y45 Tool, U-O Die With PT-6515 Adapter, (1), Y46 Tool, U-O Die With PUADP-1 Adapter, (1), OUR840 Tool, W-O Die, Die Index: 0 Element A
- Standard Package Quantity
- 1
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- CRIMPIT
- Sub Class Code
- B30B3PF
- Trade Name
- CRIMPIT™
- Type
- YPC-R-U
- UL Listed
- No
- Width
- 0.73 in
