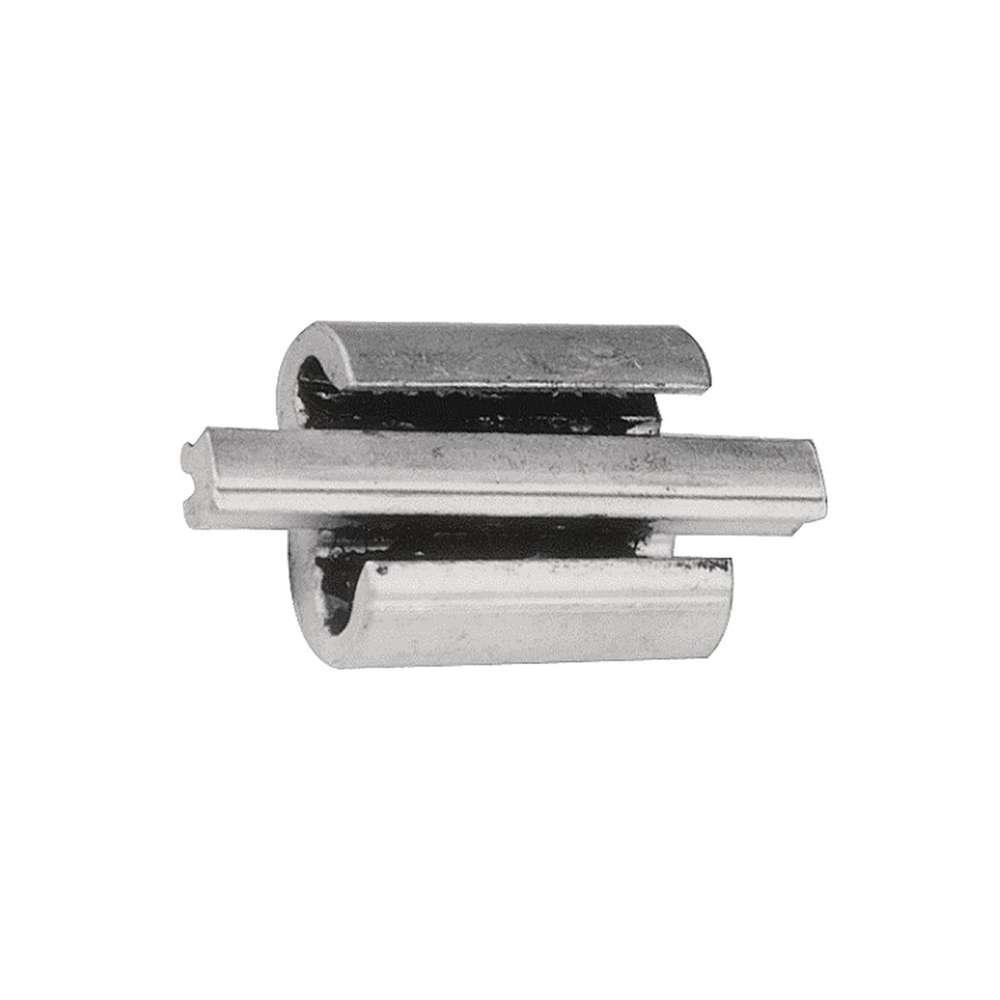

Burndy YP2U3

Certifications

• CSA Approved
  • No
• cULus
  • No
• ETL
  • No
• EU RoHS Indicator
  • Yes
• UL Recognized
  • No

Specifications

• Application
  • For Copper, Aluminum Or ACSR Conductors
• ARRA Compliant
  • No
• Base Unit of Measure
  • EA
• Buy American Compliant
  • No
• Carton - SCC-14 Next Lower Level Sub Pack
  • 00781810131732
• Case - SCC-14 Next Lower Level Sub Pack
  • 30781810131733
• Class Code
  • B30
• Conductor - ACSR Str Size A
  • 6 (6/1) Turkey AWG;5 (6/1) Thrush AWG;4 (6/1) Swan AWG;4 (7/1) Swanate AWG
• Conductor - ACSR Str Size A Range
  • 6 (6/1) Turkey AWG-4 (7/1) Swanate AWG
• Conductor - ACSR Str Size B
  • 6 (6/1) Turkey AWG;5 (6/1) Thrush AWG;4 (6/1) Swan AWG;4 (7/1) Swanate AWG
• Conductor - ACSR Str Size B Range
  • 6 (6/1) Turkey AWG-4 (7/1) Swanate AWG
• Conductor - AL Str Size A
  • 6 AWG;4 AWG
• Conductor - AL Str Size A Range
  • 6 AWG-4 AWG
• Conductor - AL Str Size B
  • 6 AWG;4 AWG
• Conductor - AL Str Size B Range
  • 6 AWG-4 AWG
• Conductor - Copper Solid Size A
  • 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
• Conductor - Copper Solid Size A Range
  • 6 AWG-2 AWG
• Conductor - Copper Solid Size B
  • 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
• Conductor - Copper Solid Size B Range
  • 6 AWG-2 AWG
• Conductor - Copper Str Size A
  • 6 AWG;5 AWG;4 AWG;3 AWG
• Conductor - Copper Str Size A Range
  • 6 AWG-3 AWG
• Conductor - Copper Str Size B
  • 6 AWG;5 AWG;4 AWG;3 AWG
• Conductor - Copper Str Size B Range
  • 6 AWG-3 AWG
• Country of Origin
  • MX
• Description - Invoice
  • 6-4R 6-4T AL/CU/ACSR
• Die Index
  • O
• Dimension - Height inch
  • 1.30 in
• Dimension - Length Overall inch
  • 1.50 in
• Dimension - L Length Overall mm
  • 38 mm
• Dimension - Width inch
  • 0.72 in
• Each - Number of Sub Packs
  • 1
• Each - Pack Description
  • Each
• Each - Width
  • 0.72 in
• Freight Class Code
  • 16027000
• Harmonization Code
  • 8535908040
• Image Actual Or Representative
  • A
• Lead Time
  • 11 wk
• Lowest Level UOM
  • Each
• Material
  • Aluminum
• MSDS Flag
  • No
• Order Multiple
  • 1 EA
• Package - Gross Weight per Pack
  • 4 lb.
• Package - GTIN - Package
  • 30781810131733
• Package Height
  • 4.25 in
• Package Length
  • 9 in
• Package - Number of Sub Packs
  • 50
• Package - Pack Description
  • Package
• Package Quantity
  • 50 EA
• Package - SCC-14 Next Lower Level Sub Pack
  • 00781810131732
• Package - Total Units
  • 50 EA
• Package Weight
  • 4 lb.
• Package Width
  • 6.13 in
• Plated
  • N
• Plating Type
  • Unplated
• Prefilled Oxide Inhibitor
  • Y
• Product Type
  • Compression
• Special Features
  • Features: Wide Range, Universal And Reversible, Figure 3 -Shaped Aluminum Connector With Adjustable Overhanging Spacer That Separates Conductors, Spacer Holds Run Or Tap In Place Permitting Lineman To Either Approach The Line Ready To Crimp, Or To Assemble Connector And Tap On Run And Then Crimp, Massive Aluminum Design Minimizes Conductor Corrosion Due To Galvanic Action, Pre-Filled With PENETROX Joint Compound And Stripsealed, Conductor Range And Tooling Information Clearly Printed On Connector And Package, Takes Up To 2 AWG ACSR Maximum In Either Groove If Other Wire Is 2 AWG Solid Or Smaller, Tools, Die Set Catalog Number, And (number Of Crimps): MD6, MD7 Tool, W-O Die, (4), Y35, Y750 Tool, U-O Die, (1), Y45 Tool, U-O Die With PT-6515 Adapter, (1), Y46 Tool, U-O Die With PUADP-1 Adapter, (1), Die Index: O Element A, Conductor Type: Run: ACSR, ACSR Compressed, Stranded Aluminum, Solid Aluminum, Solid Copper, Stranded Aluminum Compressed, Stranded Copper, Tap: ACSR, ACSR Compressed, Stranded Aluminum, Solid Aluminum, Solid Copper, Stranded Aluminum Compressed, Stranded Copper, Conductor Size (run - Range): 6 - 3/0 AWG, Conductor Size (tap Range): 6 - 3/0 AWG, Shape: 3
• Standard Package Quantity
  • 50
• Standards - RoHS Compliance Status
  • CM
• Stock Indicator
  • S - Shelf Stock
• Sub Brand
  • CABELOK CRIMPIT
• Sub Class Code
  • B30B3PF
• Trade Name
  • CABELOK™ CRIMPIT™
• Type
  • YP-U
• UL Listed
  • No
• Width
  • 0.72 in
