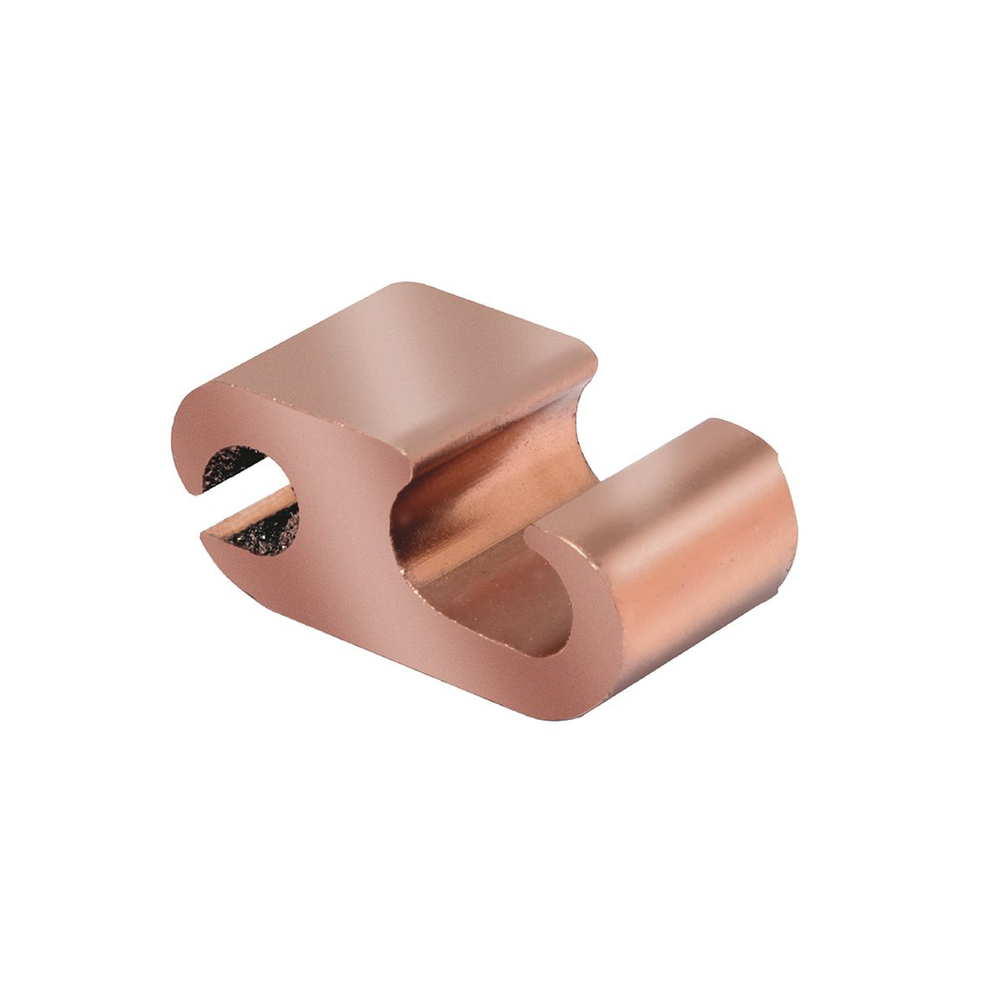

Burndy YP29C26
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Figure 6 - shaped, wide range-taking CU compression tap connector for primary service taps and secondary service drops, Width: .75 IN, Die Index: D.Figure 6 - shaped, wide range-taking CU compression tap connector for primary service taps and secondary service drops, Width: .75 IN, Die Index: D
Burndy YP29C26 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Extra Wide Range Of Copper And Primary Service Taps And Secondary Service Drops
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 5.125x6.438x4.875 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 10.000 lb.
- Carton - Number of Sub Packs
- 50
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810118009
- Carton - Total Units
- 50
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810118000
- Certification Agency
- Proposition 65
- Class Code
- B30
- Conductor - Copper Str Run
- 1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
- Conductor - Copper Str Run Range
- 1/0 -250 kcmil
- Conductor - Copper Str Tap
- 4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG
- Conductor - Copper Str Tap Range
- 4 AWG-2/0 AWG
- Connector Type
- Tap
- Country of Origin
- US
- Description - Invoice
- 1/0-250R 4-2/0T CU,0.75 IN L
- Die Index
- D
- Dimension - Height inch
- 2.00 in
- Dimension - Length Overall inch
- 1.00 in
- Dimension - L Length Overall mm
- 19 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.93 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908040
- Image Actual Or Representative
- A
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 10 lb.
- Package - GTIN - Package
- 30781810118000
- Package Height
- 4.5 in
- Package Length
- 6.13 in
- Package - Number of Sub Packs
- 50
- Package - Pack Description
- Package
- Package Quantity
- 50 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810118009
- Package - Total Units
- 50 EA
- Package Weight
- 10 lb.
- Package Width
- 4.56 in
- Pallet - GTIN - Package
- 70781810118008
- Pallet Height
- 46.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1785.000 lb.
- Pallet Width
- 40.000 in
- Plated
- Y
- Plating Type
- Unplated
- Product Type
- Compression
- Special Features
- Features: Compression Tap Connector For Primary Service Taps And Secondary Service Drops, Connector Can Be Gripped In Tool And Slipped Over The Line For Easy Installation, Conductor Type: Run And Tap: Copper, Conductor Size (run - Range): 1/0 AWG Stranded - 250 KCMIL, Conductor Size (tap Range): 4 AWG Solid - 2/0 AWG Stranded, Shape: 6, Die Index: D3 Element A, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y750, Y45, Y46 Tool, U-D3 Die, (1)
- Standard Package Quantity
- 50
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- CRIMPIT
- Sub Class Code
- B30B3BF
- Trade Name
- CRIMPIT™
- Type
- YP-C
- UL Listed
- No
- Width
- 0.93 in
