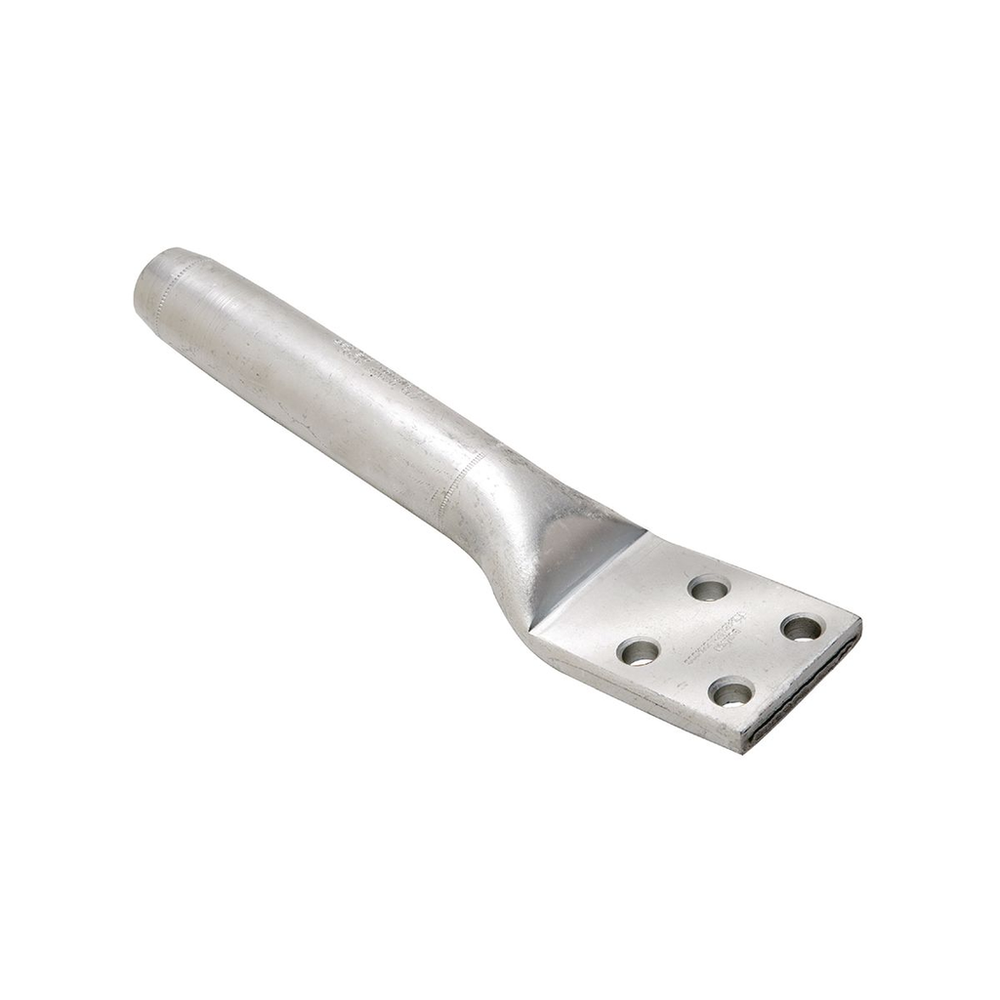

Burndy YNA451RT15
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
HYLUG™, Aluminum Compression Terminal for EHV Applications, Conductor: 715.5-874.5 Kcmil ACSR, 795-1000 Kcmil Alum., 840.2-927.2 Kcmil ACSR.HYLUG™, Aluminum Compression Terminal for EHV Applications, Conductor: 715.5-874.5 Kcmil ACSR, 795-1000 Kcmil Alum., 840.2-927.2 Kcmil ACSR
Burndy YNA451RT15 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- UL Recognized
- No
Specifications
- Base Unit of Measure
- EA
- BOX SIZE
- 6.625x14.563x8.313 (in)
- Carton - Gross Weight per Pack
- 9.960 lb.
- Carton - Number of Sub Packs
- 6
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810016459
- Carton - Total Units
- 6
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810016450
- Certification Agency
- Proposition 65
- Class Code
- B22
- Conductor - ACAR Str Size
- 840.2 KCMIL - 927.2 KCMIL
- Conductor - ACAR Str Size Range
- 840.2 KCMIL - 927.2 KCMIL
- Conductor - ACSR Str Size
- 715.5 (54/7) Crow;715.5 (26/7) Starling;715.5 (30/19) Redwing;795 (54/7) Condor;795 (26/7) Drake;795 (30/19) Mallard;874.5 (54/7) Crane
- Conductor - ACSR Str Size Range
- 715.5 (54/7) Crow-874.5 (54/7) Crane
- Conductor - AL Str Size
- 795.5;800;874.5;900;954;1000
- Conductor - AL Str Size Range
- 795.5-1000
- Connector Type
- Terminal
- Country of Origin
- US
- Die Index
- 725
- Dimension - Bolt Hole Size inch
- 0.56 in
- Dimension - E Spacing between Holes fraction
- 1-3/4 in
- Dimension - Length Overall inch
- 10.65 in
- Dimension - Length Side A inch
- 10.65 in
- Dimension - Length Side B inch
- 10.57 in
- Dimension - L Length Overall mm
- 271 mm
- Dimension - Outside Diameter inch
- 1.8 in
- Dimension - Pad Width inch
- 3.22 in
- Dimension - Width fraction
- 3.22 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Lead Time
- 199 wk
- Material
- Aluminum
- Package - GTIN - Package
- 30781810016450
- Package Quantity
- 6 EA
- Package - Total Units
- 6 EA
- Package Weight
- 0.000 lb.
- Pallet - GTIN - Package
- 70781810016458
- Pallet Height
- 45.500 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 941.400 lb.
- Pallet Width
- 40.000 in
- Physical Attribute - Pad Orientation
- 15 Degree
- Prefilled Oxide Inhibitor
- Y
- Product Type
- Compression
- Standard Package Quantity
- 6
- Standards - RoHS Compliance Status
- CM
- Sub Class Code
- B22B12F
- Trade Name
- HYLUG™
- UL Listed
- No
