Burndy YNA43R
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

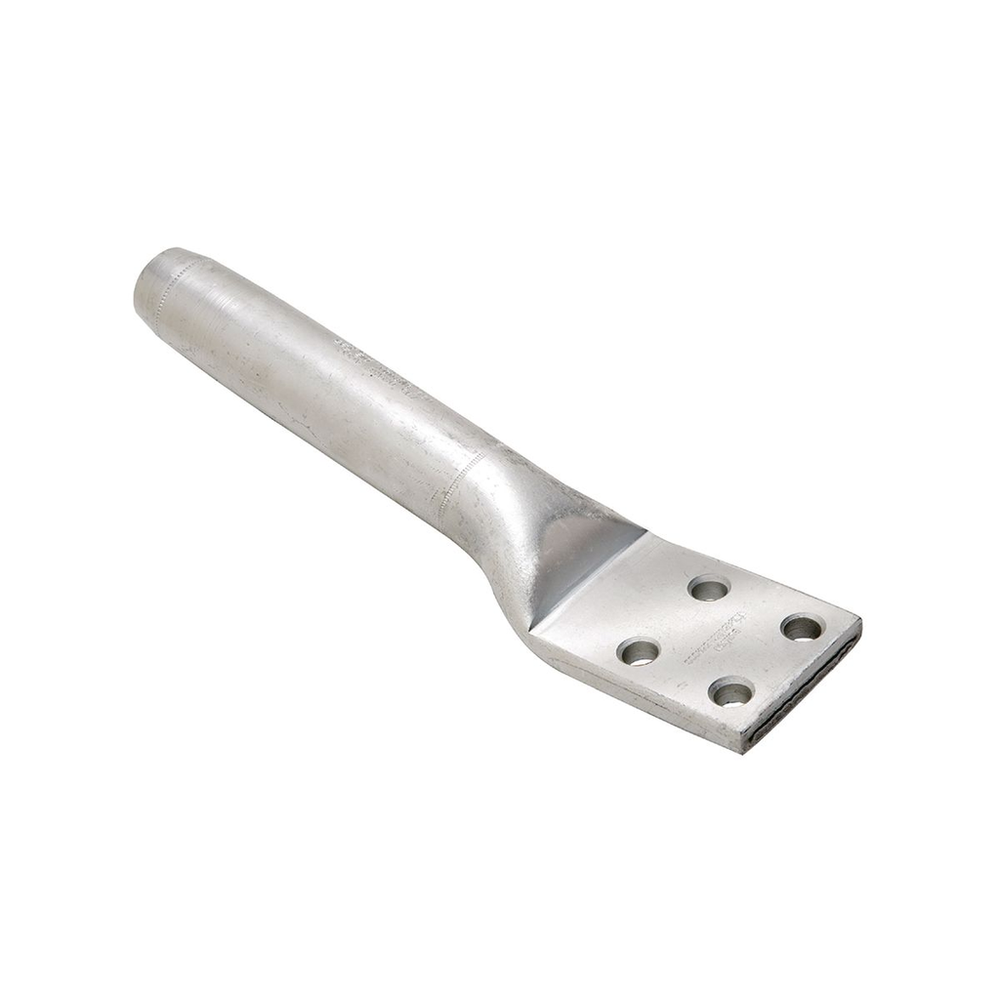

HYLUG™, Aluminum Compression terminal for ACSR and Stranded aluminum cable, 605-666.5 Kcmil ACSR, 700-800 Kcmil Aluminum cable, 230 kV, 1.75" Spacing.Four hole compression terminal
Burndy YNA43R is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- UL Recognized
- No
Specifications
- Base Unit of Measure
- EA
- BOX SIZE
- 6.375x12.313x9.313 (in)
- Carton - Gross Weight per Pack
- 13.600 lb.
- Carton - Number of Sub Packs
- 10
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810016350
- Carton - Total Units
- 10
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810016351
- Certification Agency
- Proposition 65
- Class Code
- B22
- Conductor - ACSR Str Size
- 605 (24/7) Peacock kcmil;605 (26/7) Squab kcmil;605 (30/19) Teal kcmil;636 (24/7) Rook kcmil;636 (26/7) Grosbeak kcmil;636 (30/19) Egret kcmil;666.6 (24/7) Flamingo kcmil
- Conductor - ACSR Str Size Range
- 605 (24/7) Peacock kcmil-666.6 (24/7) Flamingo kcmil
- Conductor - AL Str Size
- 700 kcmil;715 kcmil;750 kcmil;795 kcmil;800 kcmil
- Conductor - AL Str Size Range
- 700 kcmil-800 kcmil
- Connector Type
- Terminal
- Country of Origin
- US
- Die Index
- 724
- Dimension - Bolt Hole Size inch
- 0.56 in
- Dimension - E Spacing between Holes fraction
- 1-3/4 in
- Dimension - Length Overall inch
- 10.07 in
- Dimension - L Length Overall mm
- 256 mm
- Dimension - Outside Diameter inch
- 1.61 in
- Dimension - Pad Width inch
- 3.07 in
- Dimension - Width fraction
- 3.07 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Lead Time
- 12 wk
- Material
- Aluminum
- Package - GTIN - Package
- 30781810016351
- Package Quantity
- 10 EA
- Package - Total Units
- 10 EA
- Package Weight
- 0.000 lb.
- Pallet - GTIN - Package
- 70781810016359
- Pallet Height
- 44.000 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1269.000 lb.
- Pallet Width
- 40.000 in
- Physical Attribute - Number of Holes
- 4
- Physical Attribute - Pad Orientation
- Straight
- Prefilled Oxide Inhibitor
- Y
- Product Type
- Compression
- Standard Package Quantity
- 10
- Standards - RoHS Compliance Status
- CM
- Sub Class Code
- B22B12F
- Trade Name
- HYLUG™
- UL Listed
- No
