Burndy YKA33R2N
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

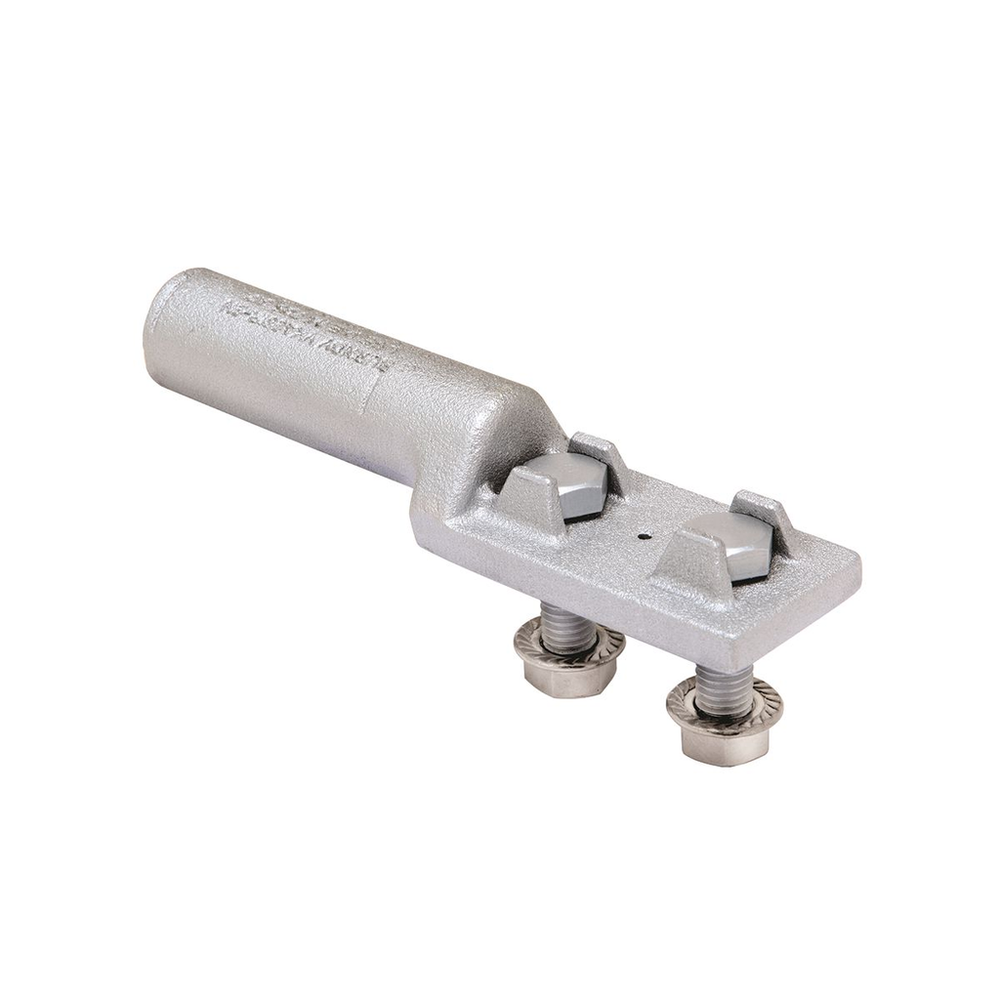

Al Compression terminal, 336.4(.721)(.741) kcmil 26-7 str 30-7 str 397.5(.748) 18-1 str, 7.22"L, 317 or 705 index.Al Compression terminal, 336.4(.721)(.741) kcmil 26-7 str 30-7 str 397.5(.748) 18-1 str, 7.22"L, 317 or 705 index
Burndy YKA33R2N is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Copper, Aluminum, ACSR, 6201, 5005, Compressed And Compact Conductors And Making Disconnectable Tap Or Jumper Connections
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- Buy American Compliant
- Yes
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810017029
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810017020
- Certification Agency
- Proposition 65
- Class Code
- B30
- Conductor - ACSR Str Size
- 336.4 (26/7) Linnet kcmil;336.4 (30/7) Oriole kcmil;397.5 (18/1) Chickadee kcmil
- Conductor - AL Str Size
- 397 kcmil;400 kcmil
- Connector Type
- Terminal
- Country of Origin
- US
- Description - Invoice
- 336 AL/CU DISCON 2 HOLE,7.22 IN L
- Die Index
- M;317
- Dimension - Bolt Size fraction
- 1/2
- Dimension - E Spacing between Holes fraction
- 1-3/4 in
- Dimension - Length Overall inch
- 7.25 in
- Dimension - L Length Overall mm
- 184 mm
- Dimension - Outside Diameter inch
- 1.24 in
- Dimension - Pad Width inch
- 1.90 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1.9 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Lead Time
- 12 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 8.14 lb.
- Package - GTIN - Package
- 30781810017020
- Package Height
- 6.13 in
- Package Length
- 9.38 in
- Package - Number of Sub Packs
- 11
- Package - Pack Description
- Package
- Package Quantity
- 11 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810017029
- Package - Total Units
- 11 EA
- Package Weight
- 8.14 lb.
- Package Width
- 7.44 in
- Physical Attribute - Pad Configuration
- Straight
- Plated
- N
- Plating Type
- Unplated
- Prefilled Oxide Inhibitor
- Y
- Product Type
- Compression
- Special Features
- Features: Aluminum Compression Terminal With Fixed Hardware And Positioning Pin For Making Disconnectable Tap Or Jumper Connections, Used With Slotted YTA-R-2N T-Tap Or YSA-R-2N Terminal, Supplied With Aluminum Bolts And Washer-Face, Self Locking Nuts, Prefilled With PENETROX Joint Compound And Capped, Pad Configuration: Straight, Size: 7-1/4 IN Overall Length X 3/8 IN Pad Thickness X 1-7/8 IN Pad Width X 3 IN Pad Length, Die Index: 317 Or M, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y750 Tool, U-M Die, (3), U317 Die, (4), Wire Type: ACSR 6201 5005 (Compressed / Compact), Aluminum, Copper
- Standard Package Quantity
- 11
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- HYLUG
- Sub Class Code
- B30B46F
- Type
- YKA-R-2N, Disconnectable
- UL Listed
- No
- Width
- 1.9 in
