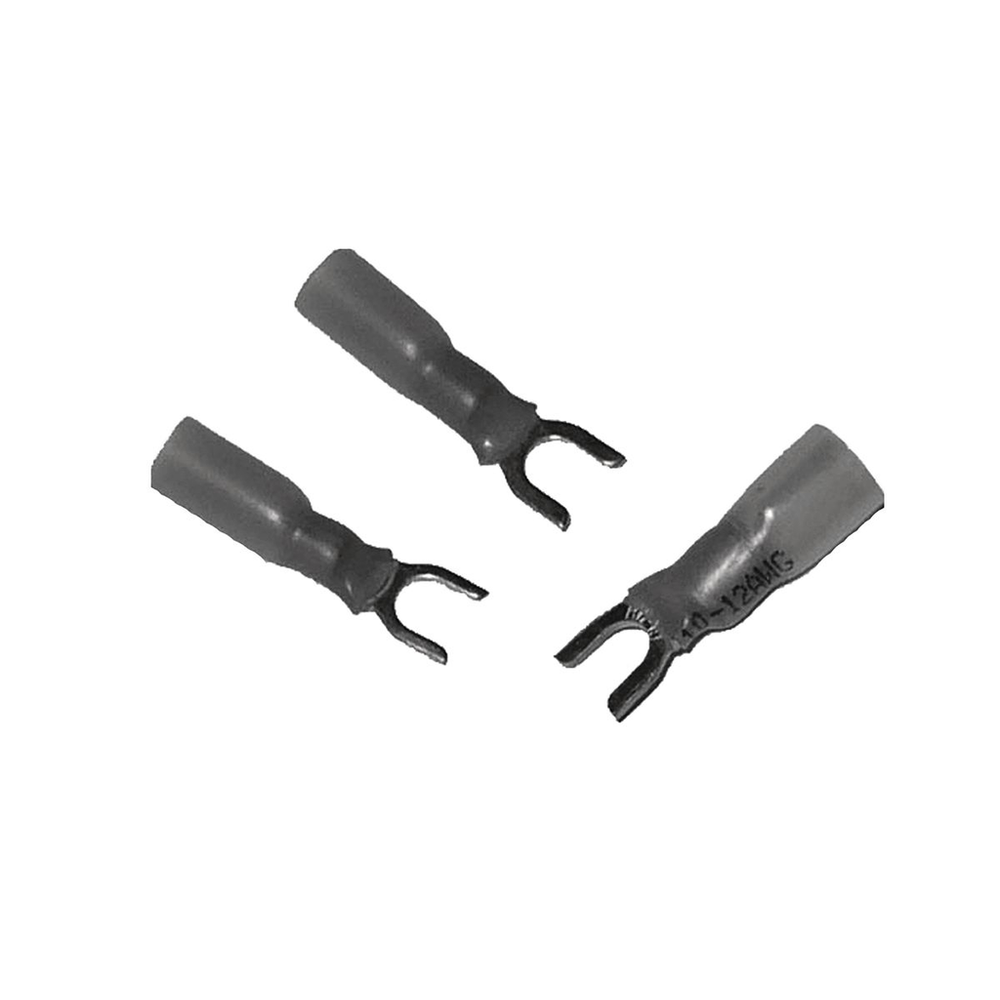

Burndy YHSA10K6BF
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Heat Shrink Block Fork Terminal For 12 - 10 AWG.Heat Shrink Block Fork Terminal For 12 - 10 AWG
Burndy YHSA10K6BF is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Use On Copper Conductor
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 0.000x0.000x0.000 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 0.000 lb.
- Carton - Number of Sub Packs
- 100
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810524671
- Carton - Total Units
- 100 EA
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810524672
- Class Code
- B57
- Conductor - Copper Str Size Range
- 12 AWG - 10 AWG
- Conductor Size
- 12 - 10 AWG
- Conductor Type
- CU C Str-Size
- Connector Type
- Block Fork Terminal
- Country of Origin
- US
- Description - Invoice
- 12-10 H/S6 Block Spade
- Dimension - Bolt Size fraction
- #4 - #6
- Dimension - Length Overall inch
- 1.27 in
- Dimension - L Length Overall mm
- 32 mm
- Dimension - Pad Width inch
- 0.30 in
- Dimension - Strip Length inch
- 11/32 in
- Dimension - Stud Size inch
- #4 - #6
- Dimension - Z inch
- 0.29 in
- Each - Number of Sub Packs
- 1 EA
- Each - Pack Description
- Each
- Each - Width
- 0.3 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8536904000
- Image Actual Or Representative
- A
- Insulation
- Y
- Insulation Type
- Heat Shrink
- Lead Time
- 12 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 0.2 lb.
- Package - GTIN - Package
- 30781810524672
- Package Height
- 4 in
- Package Length
- 3 in
- Package - Number of Sub Packs
- 50 EA
- Package - Pack Description
- Package
- Package Quantity
- 50 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810524671
- Package - Total Units
- 50 EA
- Package Weight
- 0.2 lb.
- Package Width
- 3 in
- Physical Attribute - Tongue Type
- Block Fork
- Plated
- Y
- Plating Type
- Tin
- Product Type
- TERMINAL
- Special Features
- Features: Made From Pure Copper, Annealed For Maximum Strength, Color-Coded, Imprinted With Wire Size, Serrated Barrels Offer Maximum Wire Contact And Tensile Strength, Electro Tin Plated For Corrosion Resistance, Wire Strip Length 5/16 IN, Finish: Electro-Tin Plated, Wire Strip Length: 5/16 IN
- Standard Package Quantity
- 50
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- N - Non-stock
- Sub Brand
- HYDENT
- Sub Class Code
- B57BLTF
- Trade Name
- HYDENT™
- Type
- YHS, Heat Shrink
- UL Listed
- No
- Width
- 0.3 in
