Burndy YHR900
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

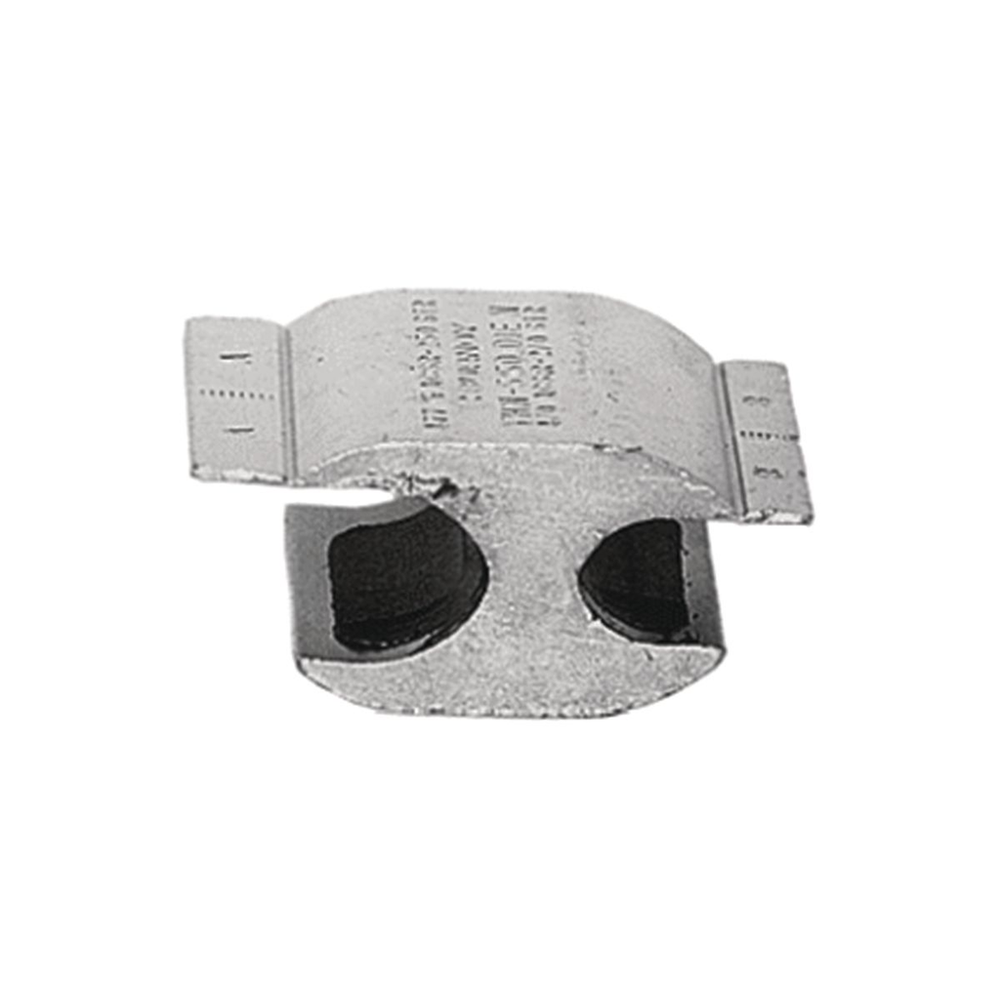

Compression Line Tap for Copper, AL or ACSR and Compact Conductors,groove A(Run) ACSR:556.5 (18/1) - 795 (26/7).Compression Line Tap for Copper, AL or ACSR and Compact Conductors, groove A(Run) ACSR:556.5 (18/1) - 795 (26/7)
Burndy YHR900 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Copper, Aluminum Or ACSR And Compact Conductors
- ARRA Compliant
- No
- Base Unit of Measure
- EA
- Buy American Compliant
- No
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810139851
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810139852
- Class Code
- B30
- Conductor - ACSR Cmpt Run
- 795 - 954
- Conductor - ACSR Cmpt Run Range
- 795 - 954
- Conductor - ACSR Cmpt Tap
- 795 - 954
- Conductor - ACSR Cmpt Tap Range
- 795 - 954
- Conductor - ACSR Str Run
- 556.5 (24/7) Parakeet kcmil;556.5 (26/7) Dove kcmil;556.5 (30/7) Eagle kcmil;605 (24/7) Peacock kcmil;605 (26/7) Squab kcmil;605 (30/19) Teal kcmil;636 (24/7) Rook kcmil;636 (26/7) Grosbeak kcmil;636 (30/19) Egret kcmil;666.6 (24/7) Flamingo kcmil;715.5 (54/7) Crow kcmil;715.5 (24/7) Stilt kcmil;715.5 (26/7) Starling kcmil;715.5 (30/19) Redwing kcmil;795 (54/7) Condor kcmil;795 (26/7) Drake kcmil
- Conductor - ACSR Str Run Range
- 556.5 (24/7) Parakeet kcmil-795 (26/7) Drake kcmil
- Conductor - ACSR Str Tap
- 556.5 (24/7) Parakeet kcmil;556.5 (26/7) Dove kcmil;556.5 (30/7) Eagle kcmil;605 (24/7) Peacock kcmil;605 (26/7) Squab kcmil;605 (30/19) Teal kcmil;636 (24/7) Rook kcmil;636 (26/7) Grosbeak kcmil;636 (30/19) Egret kcmil;666.6 (24/7) Flamingo kcmil;715.5 (54/7) Crow kcmil;715.5 (24/7) Stilt kcmil;715.5 (26/7) Starling kcmil;715.5 (30/19) Redwing kcmil;795 (54/7) Condor kcmil;795 (26/7) Drake kcmil
- Conductor - ACSR Str Tap Range
- 556.5 (24/7) Parakeet kcmil-795 (26/7) Drake kcmil
- Conductor - AL Str Run
- 600 kcmil;636 kcmil;650 kcmil;700 kcmil;715 kcmil;750 kcmil;795 kcmil;800 kcmil;874 kcmil;900 kcmil
- Conductor - AL Str Run Range
- 600 kcmil-900 kcmil
- Conductor - AL Str Tap
- 600 kcmil;636 kcmil;650 kcmil;700 kcmil;715 kcmil;750 kcmil;795 kcmil;800 kcmil;874 kcmil;900 kcmil
- Conductor - AL Str Tap Range
- 600 kcmil-900 kcmil
- Conductor - Copper Str Run
- 600 kcmil;700 kcmil;750 kcmil;800 kcmil;850 kcmil;900 kcmil
- Conductor - Copper Str Run Range
- 600 kcmil-900 kcmil
- Conductor - Copper Str Tap
- 600 kcmil;700 kcmil;750 kcmil;800 kcmil;850 kcmil;900 kcmil
- Conductor - Copper Str Tap Range
- 600 kcmil-900 kcmil
- Country of Origin
- MX
- Description - Invoice
- 556-795R 556-795T AL H T
- Die Index
- KR
- Dimension - Height fraction
- 2-97/100 in
- Dimension - Height inch
- 2.97 in
- Dimension - Length Overall inch
- 4.62 in
- Dimension - L Length Overall mm
- 117 mm
- Dimension - Width fraction
- 1-37/50 in
- Dimension - Width inch
- 1.74 in
- Dimension - Width mm
- 44 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1.74 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908040
- Image Actual Or Representative
- A
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- MSDS Flag
- No
- Order Multiple
- 10 EA
- Package - Gross Weight per Pack
- 12.3 lb.
- Package - GTIN - Package
- 30781810139852
- Package Height
- 9.88 in
- Package Length
- 10 in
- Package - Number of Sub Packs
- 10
- Package - Pack Description
- Package
- Package Quantity
- 10 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810139851
- Package - Total Units
- 10 EA
- Package Weight
- 12.3 lb.
- Package Width
- 5 in
- Plated
- N
- Plating Type
- Unplated
- Prefilled Oxide Inhibitor
- Y
- Product Type
- Compression
- Special Features
- Features: Wide Range, Universal And Reversible Figure H Shaped Aluminum Connector, Conductors Are Separated By The Shape Of The Connector, Bendable Tabs Secure Both Run And Tap Conductors Freeing The Linemans Hands To Work With The Installation Tool, Massive Aluminum Design Minimizes Corrosion Due To Galvanic Corrosion, Prefilled With PENETROX Joint Compound And Individually Packaged, Conductor Ranges And Tooling Clearly Printed On Connector And Package, Cable Diameter Range (tap): 0.879 - 1.108 IN, Cable Diameter Range (run): 0.879 - 1.108 IN, Conductor Type: Stranded AWG, ACSR, Shape: H, Die Index: KR Element A, Tools, Die Set Catalog Number, And (number Of Crimps): Y45 Tool, S-KR Die, (4), Y46 Tool, P-KR Die, (4)
- Standard Package Quantity
- 10
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- HYCRIMP
- Sub Class Code
- B30B3RF
- Trade Name
- HYCRIMP™
- Type
- YHR
- UL Listed
- No
- Width
- 1.74 in
