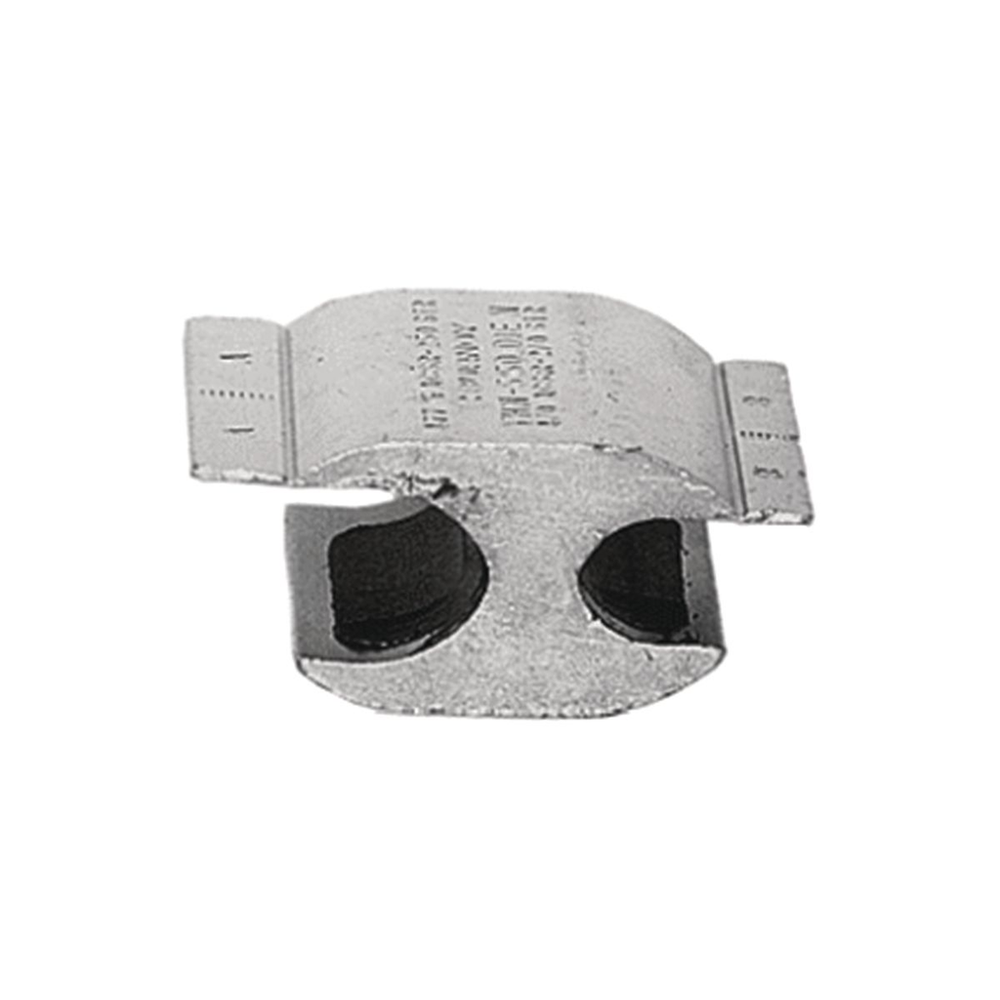

Burndy YHR700
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Compression Line Tap for Copper, AL or ACSR and Compact Conductors,wire diameter range,groove A(Run):0.666-0.893.Compression Line Tap for Copper, AL or ACSR and Compact Conductors, wire diameter range, groove A(Run):0.666-0.893
Burndy YHR700 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Copper, Aluminum Or ACSR And Compact Conductors
- ARRA Compliant
- No
- Base Unit of Measure
- EA
- Buy American Compliant
- No
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810139653
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810139654
- Class Code
- B30
- Conductor - ACSR Cmpt Run
- 397 - 636 kcmil
- Conductor - ACSR Cmpt Run Range
- 397 - 636 kcmil
- Conductor - ACSR Cmpt Tap
- 2/0 AWG;3/0 AWG;4/0 AWG;266.8 kcmil;336.4 kcmil;397 (18/1)
- Conductor - ACSR Cmpt Tap Range
- 2/0 AWG-397 (18/1)
- Conductor - ACSR Str Run
- 300.0 (26/7) Ostrich kcmil;336.4 (18/1) Merlin kcmil;336.4 (26/7) Linnet kcmil;336.4 (30/7) Oriole kcmil;397.5 (18/1) Chickadee kcmil;397.5 (24/7) Brant kcmil;397.5 (26/7) Ibis kcmil;397.5 (30/7) Larkspur kcmil;477.0 (18/1) Pelican kcmil;477.0 (24/7) Flicker kcmil;477.0 (26/7) Hawk kcmil;477. (30/7) Hen kcmil;500.0 (30/7) Heron kcmil;556.5 (18/1) kcmil
- Conductor - ACSR Str Run Range
- 300.0 (26/7) Ostrich kcmil-556.5 (18/1) kcmil
- Conductor - ACSR Str Tap
- 1/0 (6/1) Raven AWG;2/0 (6/1) Quail AWG;3/0 (6/1) Pigeon AWG;4/0 (6/1) Penquin AWG;80 (8/1) Grouse kcmil;101.8 (12/7) Petrel kcmil;110.8 (12/7) Minorca kcmil;134.6 (12/7) Leghorn kcmil;159 (12/7) Guinea kcmil;176.9 (12/7) Dotterel kcmil;190.8 (12/7) Dorking kcmil;211.3 (12/7) Cochin kcmil;203.2 (16/9) Brahma kcmil;266.8 (18/1) Waxwing kcmil;266.8 (26/7) Owl kcmil;266.8 (26/7) Partridge kcmil;300.0 (26/7) Ostrich kcmil;336.4 (18/1) Merlin kcmil
- Conductor - ACSR Str Tap Range
- 1/0 (6/1) Raven AWG-336.4 (18/1) Merlin kcmil
- Conductor - AL Str Run
- 336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil;550 kcmil;556 kcmil;600 kcmil
- Conductor - AL Str Run Range
- 336 kcmil-600 kcmil
- Conductor - AL Str Tap
- 2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil
- Conductor - AL Str Tap Range
- 2/0 AWG-350 kcmil
- Conductor - Copper Solid Tap
- 3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;350 kcmil
- Conductor - Copper Solid Tap Range
- 3/0 AWG-350 kcmil
- Conductor - Copper Str Run
- 350 kcmil;400 kcmil;450 kcmil;500 kcmil;550 kcmil;600 kcmil
- Conductor - Copper Str Run Range
- 350 kcmil-600 kcmil
- Conductor - Copper Str Tap
- 2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil
- Conductor - Copper Str Tap Range
- 2/0 AWG-350 kcmil
- Country of Origin
- MX
- Description - Invoice
- 300-556R 1/0-336T AL H T
- Die Index
- KR
- Dimension - Height fraction
- 3-1/25 in
- Dimension - Height inch
- 3.04 in
- Dimension - Length Overall inch
- 3.50 in
- Dimension - L Length Overall mm
- 89 mm
- Dimension - Width fraction
- 1-37/50 in
- Dimension - Width inch
- 1.74 in
- Dimension - Width mm
- 44 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1.74 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908040
- Image Actual Or Representative
- A
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 11.9 lb.
- Package - GTIN - Package
- 30781810139654
- Package Height
- 7.75 in
- Package Length
- 10 in
- Package - Number of Sub Packs
- 10
- Package - Pack Description
- Package
- Package Quantity
- 10 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810139653
- Package - Total Units
- 10 EA
- Package Weight
- 11.9 lb.
- Package Width
- 5 in
- Plated
- N
- Plating Type
- Unplated
- Prefilled Oxide Inhibitor
- Y
- Product Type
- Compression
- Special Features
- Features: Wide Range, Universal And Reversible Figure H Shaped Aluminum Connector, Conductors Are Separated By The Shape Of The Connector, Bendable Tabs Secure Both Run And Tap Conductors Freeing The Linemans Hands To Work With The Installation Tool, Massive Aluminum Design Minimizes Corrosion Due To Galvanic Corrosion, Prefilled With PENETROX Joint Compound And Individually Packaged, Conductor Ranges And Tooling Clearly Printed On Connector And Package, Cable Diameter Range (tap): 0.398 - 0.684 IN, Cable Diameter Range (run): 0.666 - 0.893 IN, Conductor Type: Stranded AWG, ACSR, Shape: H, Die Index: KR Element A, Tools, Die Set Catalog Number, And (number Of Crimps): Y45 Tool, S-KR Die, (3), Y46 Tool, P-KR Die, (3)
- Standard Package Quantity
- 10
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- HYCRIMP
- Sub Class Code
- B30B3RF
- Trade Name
- HYCRIMP™
- Type
- YHR
- UL Listed
- No
- Width
- 1.74 in
