Burndy YHO2
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

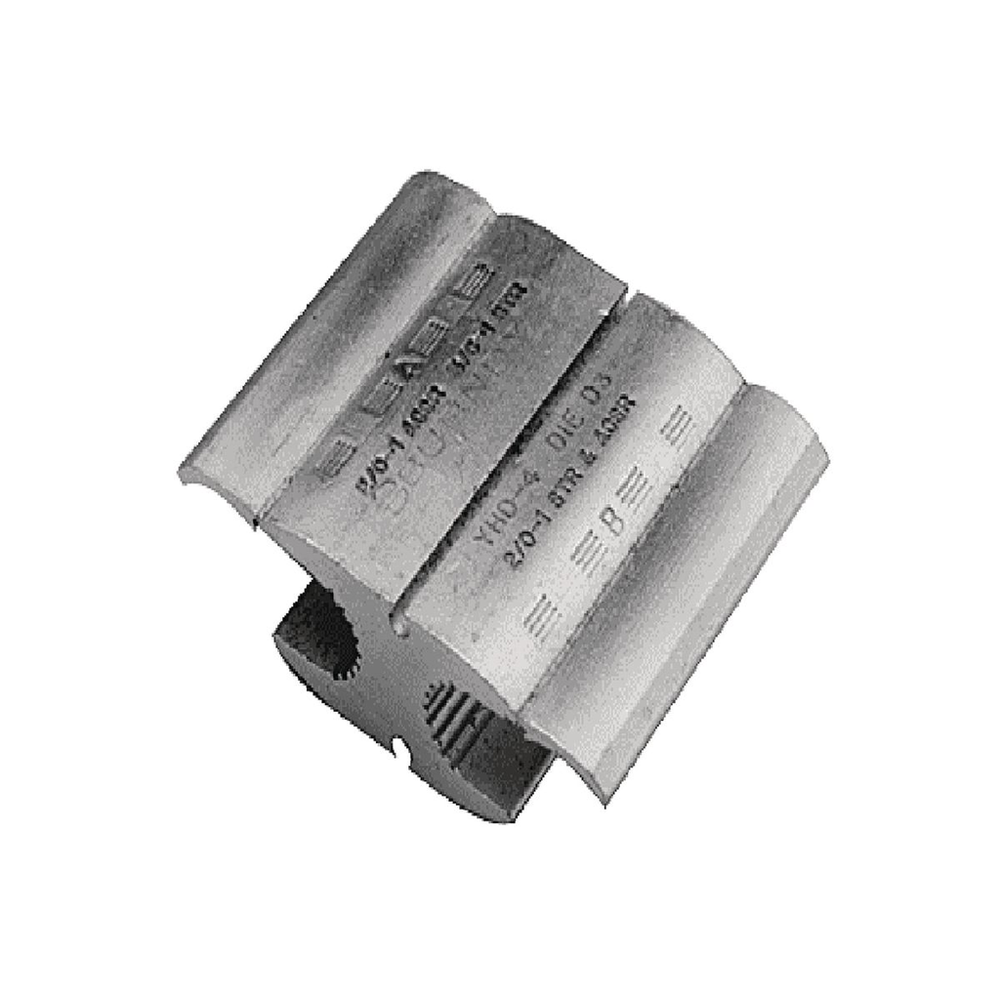

Wide Range, universal figure H shaped aluminum connector. Massive aluminum design minimizes effects of galvanic corrosion. Pre-filled with PENETROX and strip sealed to limit oxide growth and increase the life of the connection,1.12 H,1.50 L,.64 W.Wide range taking H-style AL connector; prefilled with PENETROX™
Burndy YHO2 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Copper, Aluminum Or ACSR And Compact Conductors
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 0.000x0.000x0.000 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 0.000 lb.
- Carton - Number of Sub Packs
- 350
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810139035
- Carton - Total Units
- 350 EA
- Case - Number of Sub Packs
- 14
- Case - Pack Description
- Case (ISO code = 'CA' for HEP)
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810139036
- Case - Total Units
- 350 EA
- Certification Agency
- Proposition 65
- Class Code
- B30
- Conductor - ACSR Cmpt Run
- 2 AWG;1 AWG;1/0 AWG
- Conductor - ACSR Cmpt Run Range
- 2 AWG-1/0 AWG
- Conductor - ACSR Cmpt Tap
- 6 AWG;4 AWG;3 AWG;2 AWG;1 AWG
- Conductor - ACSR Cmpt Tap Range
- 6 AWG-1 AWG
- Conductor - ACSR Str Run
- 3 (6/1) Swallow AWG;2 (6/1) Sparrow AWG;2 (7/1) Sparate AWG;1 (6/1) Robin AWG;1/0 (6/1) Raven AWG
- Conductor - ACSR Str Run Range
- 3 (6/1) Swallow AWG-1/0 (6/1) Raven AWG
- Conductor - ACSR Str Tap
- 6 (6/1) Turkey AWG;5 (6/1) Thrush AWG;4 (6/1) Swan AWG;4 (7/1) Swanate AWG;3 (6/1) Swallow AWG;2 (6/1) Sparrow AWG;2 (7/1) Sparate AWG
- Conductor - ACSR Str Tap Range
- 6 (6/1) Turkey AWG-2 (7/1) Sparate AWG
- Conductor - AL Str Run
- 3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG
- Conductor - AL Str Run Range
- 3 AWG-2/0 AWG
- Conductor - AL Str Tap
- 6 AWG;4 AWG;3 AWG;2 AWG
- Conductor - AL Str Tap Range
- 6 AWG-2 AWG
- Conductor - Copper Solid Run
- 1 AWG;1/0 AWG;2/0 AWG
- Conductor - Copper Solid Run Range
- 1 AWG-2/0 AWG
- Conductor - Copper Solid Tap
- #6;5 AWG;4 AWG;3 AWG;2 AWG;1/0
- Conductor - Copper Solid Tap Range
- #6-1/0
- Conductor - Copper Str Run
- 3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG
- Conductor - Copper Str Run Range
- 3 AWG-2/0 AWG
- Conductor - Copper Str Tap
- 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
- Conductor - Copper Str Tap Range
- 6 AWG-2 AWG
- Country of Origin
- US
- Description - Invoice
- 3-1/0R 6-2T AL H TAP
- Die Index
- O
- Dimension - Height fraction
- 1-3/25 in
- Dimension - Height inch
- 1.12 in
- Dimension - Length Overall inch
- 1.50 in
- Dimension - L Length Overall mm
- 38 mm
- Dimension - Width fraction
- 16/25 in
- Dimension - Width inch
- 0.64 in
- Dimension - Width mm
- 16 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.64 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908040
- Image Actual Or Representative
- A
- Lead Time
- 10 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- MSDS Flag
- No
- Order Multiple
- 25 EA
- Package - Gross Weight per Pack
- 2 lb.
- Package - GTIN - Package
- 30781810139036
- Package Height
- 11.75 in
- Package Length
- 13.25 in
- Package - Number of Sub Packs
- 25
- Package - Pack Description
- Package
- Package Quantity
- 25 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810139035
- Package - Total Units
- 25 EA
- Package Weight
- 2 lb.
- Package Width
- 11.00 in
- Pallet - GTIN - Package
- 70781810139034
- Pallet Height
- 41.375 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 969.000 lb.
- Pallet Width
- 40.000 in
- Plated
- N
- Plating Type
- Unplated
- Prefilled Oxide Inhibitor
- Y
- Product Type
- Compression
- Special Features
- Features: LOKTAP Compression Connectors Are High Quality, Range-Taking Devices Which Accommodate Combinations Of Aluminum To Copper, And Aluminum To Aluminum Conductors, BURNDY Seven Connector Program Accommodates A Conductor Range From 6 AWG Solid To 4/0 AWG ACSR, In Addition, LOKTAP Products Feature A C Groove On Both Sides Of The Connector For Use In Street Lighting Applications From 14 AWG Solid To 10 AWG Solid LOKTAP Connectors Are Designed To Be Installed With BURNDY Mechanical Or Hydraulic Tools And Matching O And D3 Die Set, Cable Diameter Range (tap): 0.162 - 0.26 IN, Cable Diameter Range (run): 0.26 - 0.419 IN, Tools, Die Set Catalog Number, And (number Of Crimps): MD6, MD7 Tool, (5), Y35, Y750 Tool, U-O Die, (2), Y45 Tool, U-O Die With PT-6515 Adapter, (2), Y46 Tool, U-O Die With PUADP-1 Adapter, (2), Die Index: O Element A, Conductor Size (run - Range): 3.3 - 2/0 AWG, Conductor Type: Run: ACSR, ACSR Compact, Aluminum Compact, Copper Compact, Aluminum Solid, Copper Solid, Aluminum Stranded, Copper Stranded, Tap: ACSR Compact, ACSR, Aluminum Compact, Copper Compact, Aluminum Solid, Copper Solid, Aluminum Stranded, Copper Stranded, Shape: H, Conductor Size (tap Range): 6 - 1/0 AWG
- Standard Package Quantity
- 25
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- LOKTAP
- Sub Class Code
- B30B3SF
- Trade Name
- LOKTAP™
- Type
- YHO
- UL Listed
- No
- Width
- 0.64 in
