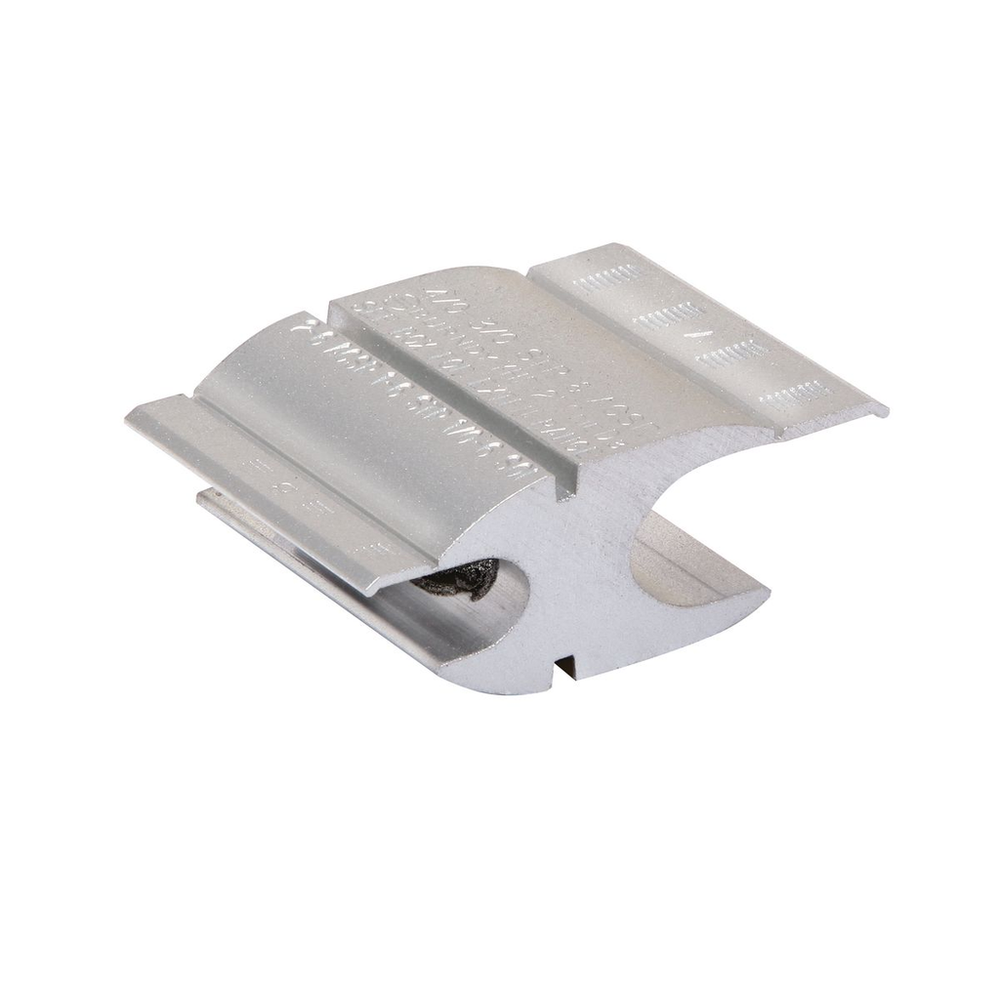

Burndy YHN525
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Compression Line Tap for Copper, AL or ACSR and Compact Conductors,groove A(Run) ACSR:4/0 (6/1) - 477.0 (18/1).Compression Line Tap for Copper, AL or ACSR and Compact Conductors, groove A(Run) ACSR:4/0 (6/1) - 477.0 (18/1)
Burndy YHN525 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Copper, Aluminum Or ACSR And Compact Conductors
- ARRA Compliant
- No
- Base Unit of Measure
- EA
- Buy American Compliant
- No
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810139509
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810139500
- Class Code
- B30
- Conductor - ACSR Cmpt Run
- 266.8 kcmil;556.5 kcmil
- Conductor - ACSR Cmpt Run Range
- 266.8 kcmil-556.5 kcmil
- Conductor - ACSR Cmpt Tap
- 266.8 kcmil;336.4 kcmil;477 kcmil;556.5 kcmil
- Conductor - ACSR Cmpt Tap Range
- 266.8 kcmil-556.5 kcmil
- Conductor - ACSR Str Run
- 266.8 (26/7) Owl kcmil;266.8 (18/1) Waxwing kcmil;266.8 (26/7) Partridge kcmil;300.0 (26/7) Ostrich kcmil;336.4 (18/1) Merlin kcmil;336.4 (26/7) Linnet kcmil;336.4 (30/7) Oriole kcmil;397.5 (18/1) Chickadee kcmil;397.5 (24/7) Brant kcmil;397.5 (26/7) Ibis kcmil;397.5 (30/7) Larkspur kcmil;477.0 (18/1) Pelican kcmil
- Conductor - ACSR Str Run Range
- 266.8 (26/7) Owl kcmil-477.0 (18/1) Pelican kcmil
- Conductor - ACSR Str Tap
- 4/0 (6/1);266.8 (26/7) Owl kcmil;266.8 (18/1) Waxwing kcmil;266.8 (26/7) Partridge kcmil;300.0 (26/7) Ostrich kcmil;336.4 (18/1) Merlin kcmil;336.4 (26/7) Linnet kcmil;336.4 (30/7) Oriole kcmil;397.5 (18/1) Chickadee kcmil;397.5 (24/7) Brant kcmil;397.5 (26/7) Ibis kcmil;397.5 (30/7) Larkspur kcmil;477.0 (18/1) Pelican kcmil
- Conductor - ACSR Str Tap Range
- 4/0 (6/1)-477.0 (18/1) Pelican kcmil
- Conductor - AL Str Run
- 4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil
- Conductor - AL Str Run Range
- 4/0 AWG-500 kcmil
- Conductor - AL Str Tap
- 4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil
- Conductor - AL Str Tap Range
- 4/0 AWG-500 kcmil
- Conductor - Copper Str Run
- 4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil
- Conductor - Copper Str Run Range
- 4/0 AWG-500 kcmil
- Conductor - Copper Str Tap
- 4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil
- Conductor - Copper Str Tap Range
- 4/0 AWG-500 kcmil
- Country of Origin
- MX
- Description - Invoice
- 4/0-477R 4/0-477T AL H T
- Die Index
- N
- Dimension - Height fraction
- 1-103/125 in
- Dimension - Height inch
- 1.824 in
- Dimension - Length Overall inch
- 4.50 in
- Dimension - L Length Overall mm
- 114 mm
- Dimension - Width fraction
- 1-23/100 in
- Dimension - Width inch
- 1.23 in
- Dimension - Width mm
- 31 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1.23 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908040
- Image Actual Or Representative
- A
- Lead Time
- 10 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- MSDS Flag
- No
- Order Multiple
- 10 EA
- Package - Gross Weight per Pack
- 5.5 lb.
- Package - GTIN - Package
- 30781810139500
- Package Height
- 5.5 in
- Package Length
- 11.25 in
- Package - Number of Sub Packs
- 10
- Package - Pack Description
- Package
- Package Quantity
- 10 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810139509
- Package - Total Units
- 10 EA
- Package Weight
- 5.5 lb.
- Package Width
- 5.62 in
- Plated
- N
- Plating Type
- Unplated
- Prefilled Oxide Inhibitor
- Y
- Product Type
- Compression
- Special Features
- Features: Wide Range, Universal And Reversible Figure H Shaped Aluminum Connector, Conductors Are Separated By The Shape Of The Connector, Bendable Tabs Secure Both Run And Tap Conductors Freeing The Linemans Hands To Work With The Installation Tool, Massive Aluminum Design Minimizes Corrosion Due To Galvanic Corrosion, Prefilled With PENETROX Joint Compound And Individually Packaged, Conductor Ranges And Tooling Clearly Printed On Connector And Package, Die Index: N Element A, Cable Diameter Range (run): 0.522 - 0.815 IN, Cable Diameter Range (tap): 0.522 - 0.814 IN, Installation Tool: Mechanical Or Hydraulic Installation Tooling, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y750 Tool, U-N Die, (3), Y45 Tool, S-N Die, (3), Y46 Tool, P-N Die, (3), Conductor Type: Run: Aluminum Stranded, Copper Stranded, Tap: Aluminum Stranded, Copper Stranded, Conductor Size (run - Range): 4/0 AWG - 500 KCMIL, Shape: H, Conductor Size (tap Range): 4/0 AWG - 500 KCMIL
- Standard Package Quantity
- 10
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- HYCRIMP
- Sub Class Code
- B30B3RF
- Trade Name
- HYCRIMP™
- Type
- YHN
- UL Listed
- No
- Width
- 1.23 in
