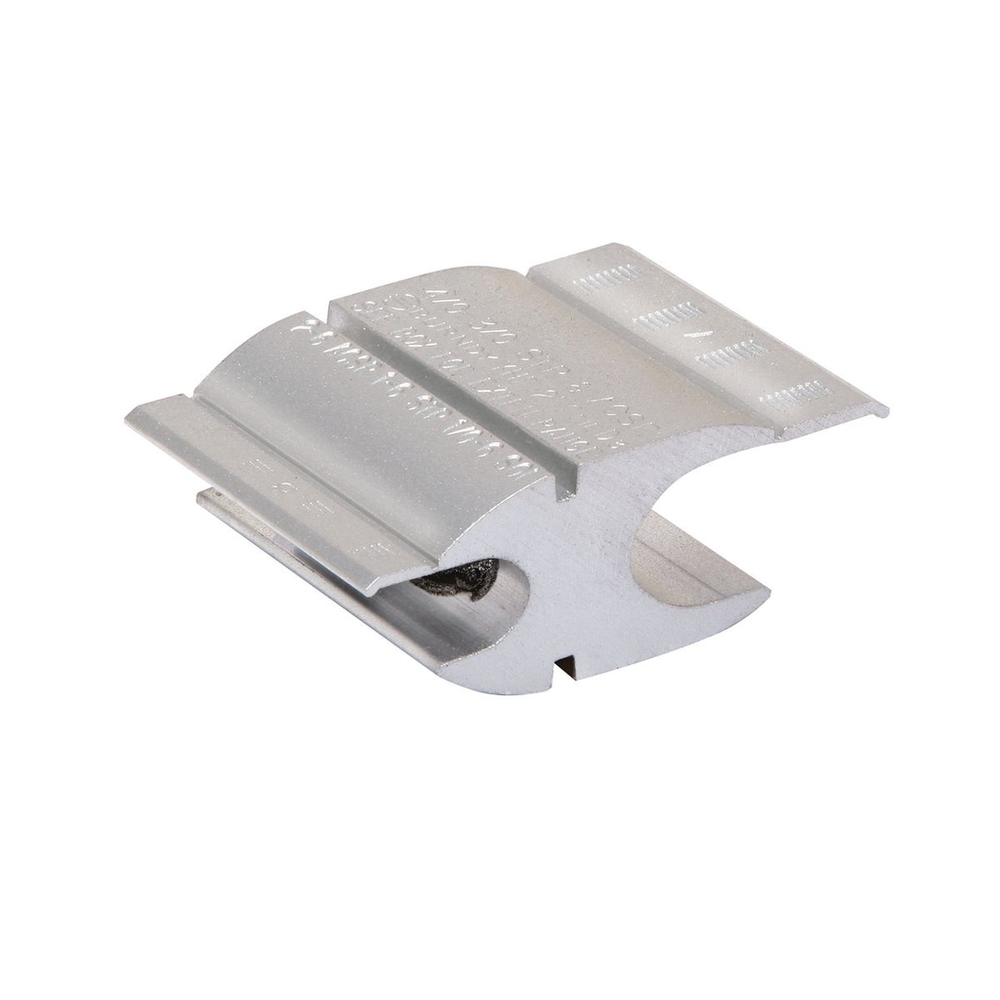

Burndy YHD200

Certifications

• CSA Approved
  • No
• cULus
  • No
• ETL
  • No
• EU RoHS Indicator
  • Yes
• UL Recognized
  • No

Specifications

• Application
  • For Copper, Aluminum Or ACSR And Compact Conductors
• ARRA Compliant
  • Yes
• Base Unit of Measure
  • EA
• BOX SIZE
  • 0.000x0.000x0.000 (in)
• Buy American Compliant
  • Yes
• Carton - Gross Weight per Pack
  • 0.000 lb.
• Carton - Number of Sub Packs
  • 250
• Carton - Pack Description
  • Carton
• Carton - SCC-14 Next Lower Level Sub Pack
  • 00781810139158
• Carton - Total Units
  • 250 EA
• Case - Number of Sub Packs
  • 10
• Case - Pack Description
  • Case (ISO code = 'CA' for HEP)
• Case - SCC-14 Next Lower Level Sub Pack
  • 30781810139159
• Case - Total Units
  • 250 EA
• Certification Agency
  • Proposition 65
• Class Code
  • B30
• Conductor - ACSR Cmpt Run
  • 2/0 AWG;3/0 AWG
• Conductor - ACSR Cmpt Run Range
  • 2/0 AWG-3/0 AWG
• Conductor - ACSR Cmpt Tap
  • 6 AWG;4 AWG;3 AWG;2 AWG;1 AWG
• Conductor - ACSR Cmpt Tap Range
  • 6 AWG-1 AWG
• Conductor - ACSR Str Run
  • 1/0 (6/1) Raven AWG;2/0 (6/1) Quail AWG
• Conductor - ACSR Str Run Range
  • 1/0 (6/1) Raven AWG-2/0 (6/1) Quail AWG
• Conductor - ACSR Str Tap
  • 6 (6/1) Turkey AWG;5 (6/1) Thrush AWG;4 (6/1) Swan AWG;4 (7/1) Swanate AWG;3 (6/1) Swallow AWG;2 (6/1) Sparrow AWG;2 (7/1) Sparate AWG
• Conductor - ACSR Str Tap Range
  • 6 (6/1) Turkey AWG-2 (7/1) Sparate AWG
• Conductor - AL Str Run
  • 3/0 - 4/0
• Conductor - AL Str Run Range
  • 3/0 - 4/0
• Conductor - AL Str Tap
  • 6 AWG;4 AWG;3 AWG;2 AWG;1 AWG
• Conductor - AL Str Tap Range
  • 6 AWG-1 AWG
• Conductor - Copper Solid Run
  • 3/0 AWG;4/0 AWG
• Conductor - Copper Solid Run Range
  • 3/0 AWG-4/0 AWG
• Conductor - Copper Solid Tap
  • 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG
• Conductor - Copper Solid Tap Range
  • 6 AWG-1/0 AWG
• Conductor - Copper Str Run
  • 2/0 AWG;3/0 AWG
• Conductor - Copper Str Run Range
  • 2/0 AWG-3/0 AWG
• Conductor - Copper Str Tap
  • 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG
• Conductor - Copper Str Tap Range
  • 6 AWG-1 AWG
• Country of Origin
  • US
• Description - Invoice
  • 1/0-2/0R 6-3T AL H TAP
• Die Index
  • D3
• Dimension - Height fraction
  • 1-11/25 in
• Dimension - Height inch
  • 1.45 in
• Dimension - Length Overall inch
  • 1.62 in
• Dimension - L Length Overall mm
  • 41 mm
• Dimension - Width inch
  • 0.89 in
• Dimension - Width mm
  • 23 mm
• Each - Number of Sub Packs
  • 1
• Each - Pack Description
  • Each
• Each - Width
  • 2.19 in
• Freight Class Code
  • 16027000
• Harmonization Code
  • 8535908040
• Image Actual Or Representative
  • A
• Lead Time
  • 10 wk
• Lowest Level UOM
  • Each
• Material
  • Aluminum
• MSDS Flag
  • No
• Order Multiple
  • 25 EA
• Package - Gross Weight per Pack
  • 4.25 lb.
• Package - GTIN - Package
  • 30781810139159
• Package Height
  • 2.69 in
• Package Length
  • 4.7 in
• Package - Number of Sub Packs
  • 25
• Package - Pack Description
  • Package
• Package Quantity
  • 25 EA
• Package - SCC-14 Next Lower Level Sub Pack
  • 00781810139158
• Package - Total Units
  • 25 EA
• Package Weight
  • 4.25 lb.
• Package Width
  • 10.95 in
• Pallet - GTIN - Package
  • 70781810139157
• Pallet Height
  • 41.375 in
• Pallet Length
  • 48.000 in
• Pallet Weight
  • 1447.500 lb.
• Pallet Width
  • 40.000 in
• Plated
  • N
• Plating Type
  • Unplated
• Prefilled Oxide Inhibitor
  • Y
• Product Type
  • Compression
• Special Features
  • Features: Wide Range, Universal And Reversible Figure H Shaped Aluminum Connector, Conductors Are Separated By The Shape Of The Connector, Bendable Tabs Secure Both Run And Tap Conductors Freeing The Linemans Hands To Work With The Installation Tool, Massive Aluminum Design Minimizes Corrosion Due To Galvanic Corrosion, Prefilled With PENETROX Joint Compound And Individually Packaged, Conductor Ranges And Tooling Clearly Printed On Connector And Package, Cable Diameter Range (tap): 0.162 - 0.332 IN, Die Index: D3 Element A, Cable Diameter Range (run): 0.398 - 0.47 IN, Tools, Die Set Catalog Number, And (number Of Crimps): MD6-8, MD7-8 Tool, (5), Y35, Y750 Tool, UD3 Die, (2), Y45 Tool, UD3 Die With PT-6515 Adapter, (2), Y46 Tool, UD3 Die With PUADP-1 Adapter, (2), Installation Tool: Mechanical Or Hydraulic Installation Tooling, Conductor Size (run - Range): 1/0 - 4/0 AWG, Conductor Type: Run: ACSR, Aluminum Solid, Copper Solid, Aluminum Stranded, Copper Stranded, Tap: ACSR, Aluminum Solid, Copper Solid, Aluminum Stranded, Copper Stranded, Conductor Size (tap Range): 6 - 1/0 AWG, Shape: H
• Standard Package Quantity
  • 25
• Standards - RoHS Compliance Status
  • CM
• Stock Indicator
  • S - Shelf Stock
• Sub Brand
  • HYCRIMP
• Sub Class Code
  • B30B3RF
• Trade Name
  • HYCRIMP™
• Type
  • YHD
• UL Listed
  • No
• Width
  • 2.19 in
