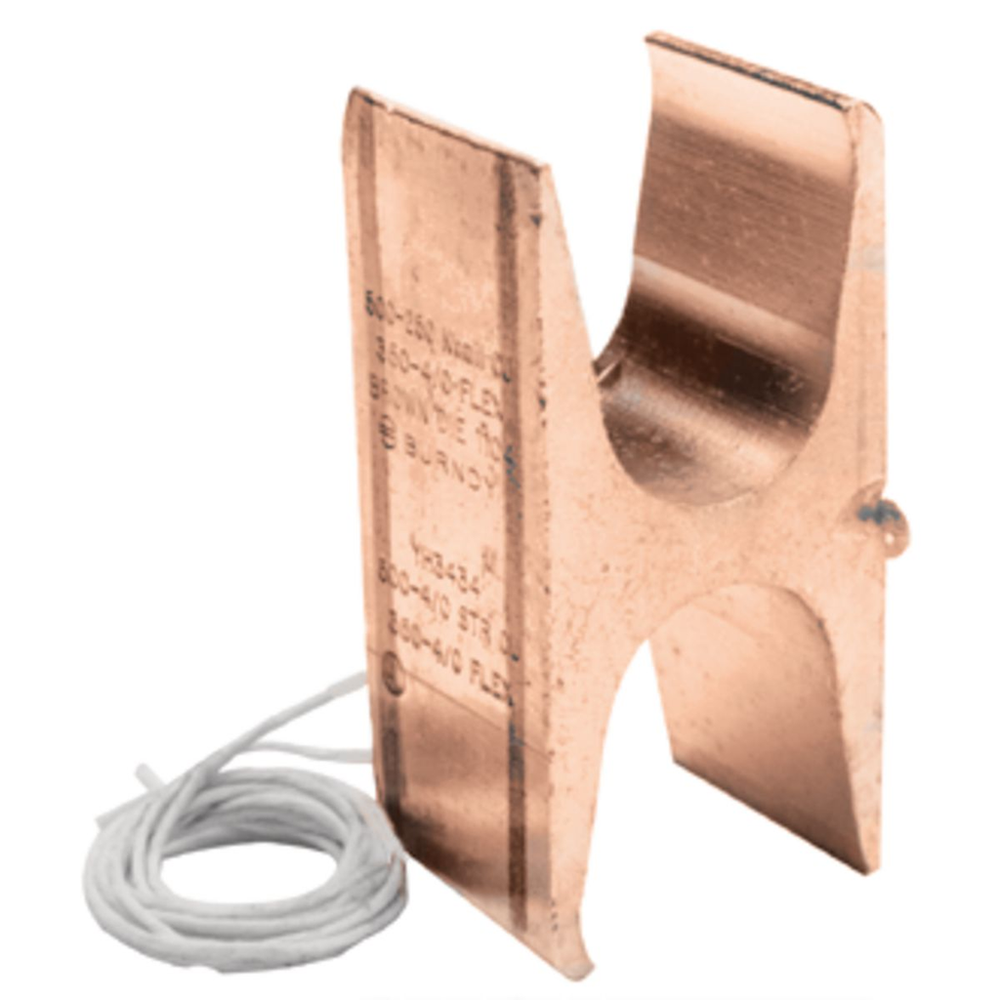

Burndy YH6C6C

Certifications

• CSA Approved
  • Yes
• cULus
  • No
• ETL
  • No
• EU RoHS Indicator
  • Yes
• UL Recognized
  • No

Specifications

• Application
  • Wire Tap
• ARRA Compliant
  • Yes
• Base Unit of Measure
  • EA
• BOX SIZE
  • 6.375x12.313x9.313 (in)
• Buy American Compliant
  • Yes
• Carton - Gross Weight per Pack
  • 6.000 lb.
• Carton - Number of Sub Packs
  • 150
• Carton - Pack Description
  • Carton
• Carton - SCC-14 Next Lower Level Sub Pack
  • 00781810042373
• Carton - Total Units
  • 150
• Case - SCC-14 Next Lower Level Sub Pack
  • 30781810042374
• Certification Agency
  • Proposition 65
• Class Code
  • B55
• Color Code
  • Orange
• Conductor - Copper Flex G Run
  • 8;7;6
• Conductor - Copper Flex G Run Range
  • 8-6
• Conductor - Copper Flex G Tap
  • 14;8;7;6
• Conductor - Copper Flex G Tap Range
  • 14-6
• Conductor - Copper Flex H Run
  • 6 AWG
• Conductor - Copper Flex H Run Range
  • 6 AWG
• Conductor - Copper Flex H Tap
  • 14;8;7;6
• Conductor - Copper Flex H Tap Range
  • 14-6
• Conductor - Copper Flex I Run
  • 6 AWG-10 AWG
• Conductor - Copper Flex I Tap
  • 14;8;7;6
• Conductor - Copper Flex I Tap Range
  • 6 AWG-14 AWG
• Conductor - Copper Flex K Run
  • 8;7;6
• Conductor - Copper Flex K Tap
  • 14;8;7;6
• Conductor - Copper Flex M Run
  • 8;7;6
• Conductor - Copper Flex M Tap
  • 14;8;7;6
• Conductor - Copper Str Run
  • 10;9;8;7;6
• Conductor - Copper Str Run Range
  • 6 AWG-10 AWG
• Conductor - Copper Str Tap
  • 14;12;10;9;8;7;6
• Conductor - Copper Str Tap Range
  • 6 AWG-14 AWG
• Conductor - Material
  • COPPER
• Conductor Type
  • CODE/FLEX
• Connector Type
  • H-TAP
• Country of Origin
  • US
• Description - Invoice
  • H-STYLE TIN PLATD COPPER
• Description - Slang
  • H TAP TIN PLATE
• Die Index
  • BG
• Dimension - Height inch
  • 0.81 in
• Dimension - Length Overall inch
  • 0.60 in
• Dimension - L Length Overall mm
  • 15 mm
• Dimension - Strip Length inch
  • 3/4
• Dimension - Width fraction
  • .39 in
• Dimension - Width inch
  • 0.81 in
• Each - Number of Sub Packs
  • 1
• Each - Pack Description
  • Each
• Each - Width
  • 0.30 in
• Finish
  • Tin-Plated
• Finish Type
  • Tin-Plated
• Freight Class Code
  • 16027000
• Harmonization Code
  • 8535908040
• Image Actual Or Representative
  • A
• Industry Standard(s)
  • UL 486A-486B
• Lead Time
  • 11 wk
• Lowest Level UOM
  • Each
• Material
  • COPPER
• MSDS Flag
  • No
• Order Multiple
  • 1 EA
• Package - Gross Weight per Pack
  • 6 lb.
• Package - GTIN - Package
  • 30781810042374
• Package Height
  • 6.13 in
• Package Length
  • 9.38 in
• Package - Number of Sub Packs
  • 150
• Package - Pack Description
  • Package
• Package Quantity
  • 150 EA
• Package - SCC-14 Next Lower Level Sub Pack
  • 00781810042373
• Package - Total Units
  • 150 EA
• Package Weight
  • 6 lb.
• Package Width
  • 7.44 in
• Pallet - GTIN - Package
  • 70781810042372
• Pallet Height
  • 44.000 in
• Pallet Length
  • 48.000 in
• Pallet Weight
  • 585.000 lb.
• Pallet Width
  • 40.000 in
• Plated
  • Y
• Plating Type
  • Tin - Electro Plated
• Product Type
  • RUN/TAP
• Special Features
  • Features: Accommodates A Wide Range Of Run/Tap Copper Cable Combinations Including Both Flexible And Code Combinations, All (B/B, B/I, I/B, I/I) Combinations Acceptable: Each Connector Has Many Copper Cable Combination Applications Allowing Maximum Flexibility For The Design And Installation Of A System, Tap Grooves Function Independently Of Each Other, Use Of One Tap Is Required, Balance May Be Used Or Left Empty: Provides Maximum Design And Installation Flexibility, Color Code On The Connector Matches Installation Die: Provides Matched System For Fast And Easy Installation, Die Index Embossed On Connector After Completion Of Crimp: Permanent Inspectability Of Installed Connectors To Insure Consistently Reliable And Dependable Connections, Recommended Flame Retardant Type CFFR Insulating Covers Meet Oxygen Index 28 And UL94 V-O Requirements: A Complete Insulated UL Listed Installation Is Provided, Third Hand Constrains Conductors While Installer Completes Crimp, Included With Each Connector, Simplifies Installation, Reducing Installed Cost, Use PUADP-1 Adaptor With U Dies In Y46, Flame Retardant Cover: CFBG-FR, Cover Packaged With Connector: No, Wire Strip Length: 3/4 IN, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y750 Tool, UBGRT Die, (1), Y46 Tool, UBGRT Die With PUADP-1 Adapter, (1), Die Index: GRT Element A, Color Code: Orange, Conductor Size (run - Range): 10 - 6 AWG, Conductor Type: Run: Commercial Stranded Copper, Flexible Copper, Tap: Commercial Stranded Copper, Flexible Copper, Conductor Size (tap Range): 14 - 6 AWG, Shape: H
• Standard
  • UL 486A-486B
• Standard Package Quantity
  • 150
• Standards - Industry Standards Met
  • UL467
• Standards - RoHS Compliance Status
  • CM
• Stock Indicator
  • S - Shelf Stock
• Sub Brand
  • CRIMPIT
• Sub Class Code
  • B55BI1F
• Temperature Rating
  • 194
• Trade Name
  • CRIMPIT™
• Type
  • Compression Taps
• UL Listed
  • Yes
• Voltage - Maximum
  • 35000
• Voltage Rating
  • 35 kV
• Width
  • 0.30 in
