Burndy YH4444
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

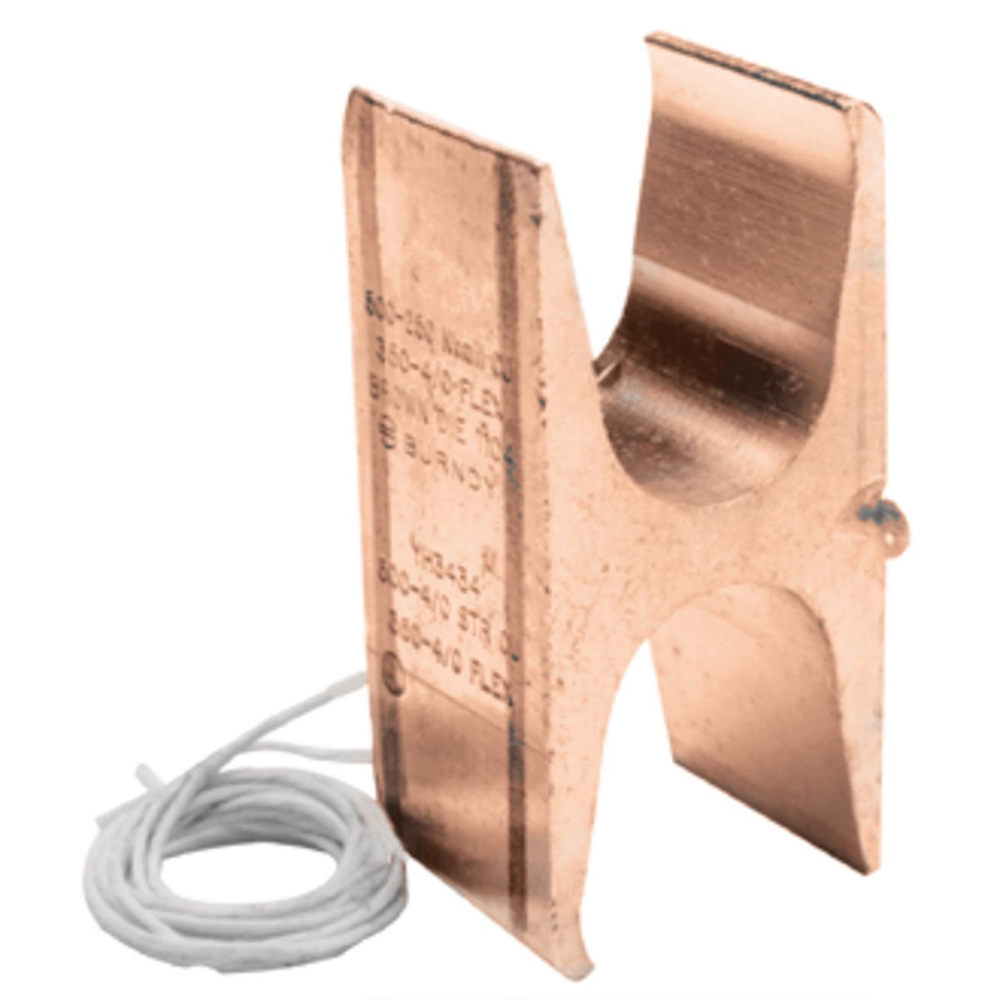

Copper Compression H Tap, Tin Plated, Accommoding the following wire sizes - Run (Main): 1000 KCMIL-750 KCMIL Class B,C, 777 KCMIL-535 KCMIL DLO, 750-500 KCMIL Class I, Tap 1: 777 KCMIL-535 KCMIL DLO, 750 KCMIL-350 KCMIL Class I. See sale drawing for metric wire size accommodatesCopper Compression H Tap, 1000 KCMIL-750 KCMIL (Main), 1000 KCMIL-750 KCMIL (Tap), Tin Plated
Burndy YH4444 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- UL Recognized
- No
Specifications
- Application
- Wire Tap
- Base Unit of Measure
- EA
- BOX SIZE
- 6.375x12.313x9.313 (in)
- Carton - Gross Weight per Pack
- 33.500 lb.
- Carton - Number of Sub Packs
- 50
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810013854
- Carton - Total Units
- 50
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810013855
- Certification Agency
- Proposition 65
- Class Code
- B55
- Color Code
- White
- Conductor - Copper Flex G Run
- 500 kcmil;600 kcmil;700 kcmil
- Conductor - Copper Flex G Run Range
- 500 kcmil-700 kcmil
- Conductor - Copper Flex G Tap
- 500 kcmil;600 kcmil;700 kcmil
- Conductor - Copper Flex G Tap Range
- 500 kcmil-700 kcmil
- Conductor - Copper Flex H Run
- 700 kcmil
- Conductor - Copper Flex H Run Range
- 700 kcmil
- Conductor - Copper Flex H Tap
- 500 kcmil;600 kcmil;700 kcmil
- Conductor - Copper Flex H Tap Range
- 500 kcmil-700 kcmil
- Conductor - Copper Flex I Run
- 750 KCMIL-500 KCMIL
- Conductor - Copper Flex I Run Range
- 500 kcmil-700 kcmil
- Conductor - Copper Flex I Tap
- 500 kcmil;550 kcmil;600 kcmil;700 kcmil
- Conductor - Copper Flex I Tap Range
- 750 KCMIL-350 KCMIL
- Conductor - Copper Flex K Run
- 500 kcmil;600 kcmil;700 kcmil
- Conductor - Copper Flex K Run Range
- 500 kcmil-700 kcmil
- Conductor - Copper Flex K Tap
- 500 kcmil;600 kcmil;700 kcmil
- Conductor - Copper Flex K Tap Range
- 500 kcmil-700 kcmil
- Conductor - Copper Flex M Run
- 500 kcmil;600 kcmil;700 kcmil
- Conductor - Copper Flex M Run Range
- 500 kcmil-700 kcmil
- Conductor - Copper Flex M Tap
- 500 kcmil;600 kcmil;700 kcmil
- Conductor - Copper Flex M Tap Range
- 500 kcmil-700 kcmil
- Conductor - Copper Str Run
- 700 kcmil;750 kcmil;800 kcmil;850 kcmil;900 kcmil;1000 kcmil
- Conductor - Copper Str Run Range
- 1000 KCMIL-750 KCMIL
- Conductor - Copper Str Tap
- 750 kcmil;800 kcmil;850 kcmil;900 kcmil;1000 kcmil
- Conductor - Copper Str Tap Range
- 1000 KCMIL-750 KCMIL
- Conductor - Material
- COPPER
- Conductor Type
- CODE/FLEX
- Connector Type
- H-TAP
- Country of Origin
- US
- Description - Slang
- H TAP TIN PLATE
- Die Index
- 1102
- Dimension - Height inch
- 3.38 in
- Dimension - Length Overall inch
- 1 in
- Dimension - L Length Overall mm
- 610 mm
- Dimension - Strip Length inch
- 1-1/8
- Dimension - Width fraction
- 1.70 in
- Dimension - Width inch
- 3.38 in
- Finish Type
- Tin-Plated
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908040
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL 486A-486B
- Lead Time
- 12 wk
- Material
- COPPER
- Package - GTIN - Package
- 30781810013855
- Package Quantity
- 50 EA
- Package - Total Units
- 50 EA
- Package Weight
- 0.000 lb.
- Pallet - GTIN - Package
- 70781810013853
- Pallet Height
- 44.000 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1552.500 lb.
- Pallet Width
- 40.000 in
- Plated
- Y
- Plating Type
- Tin - Electro Plated
- Product Type
- RUN/TAP
- Standard Package Quantity
- 50
- Standards - Industry Standards Met
- UL467
- Standards - RoHS Compliance Status
- CM
- Sub Class Code
- B55BI1F
- Temperature Rating
- 194
- Trade Name
- CRIMPIT™
- Type
- Compression Taps
- UL Listed
- Yes
- Voltage - Maximum
- 35000
- Voltage Rating
- 35 kV
