Burndy YH4429WC
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

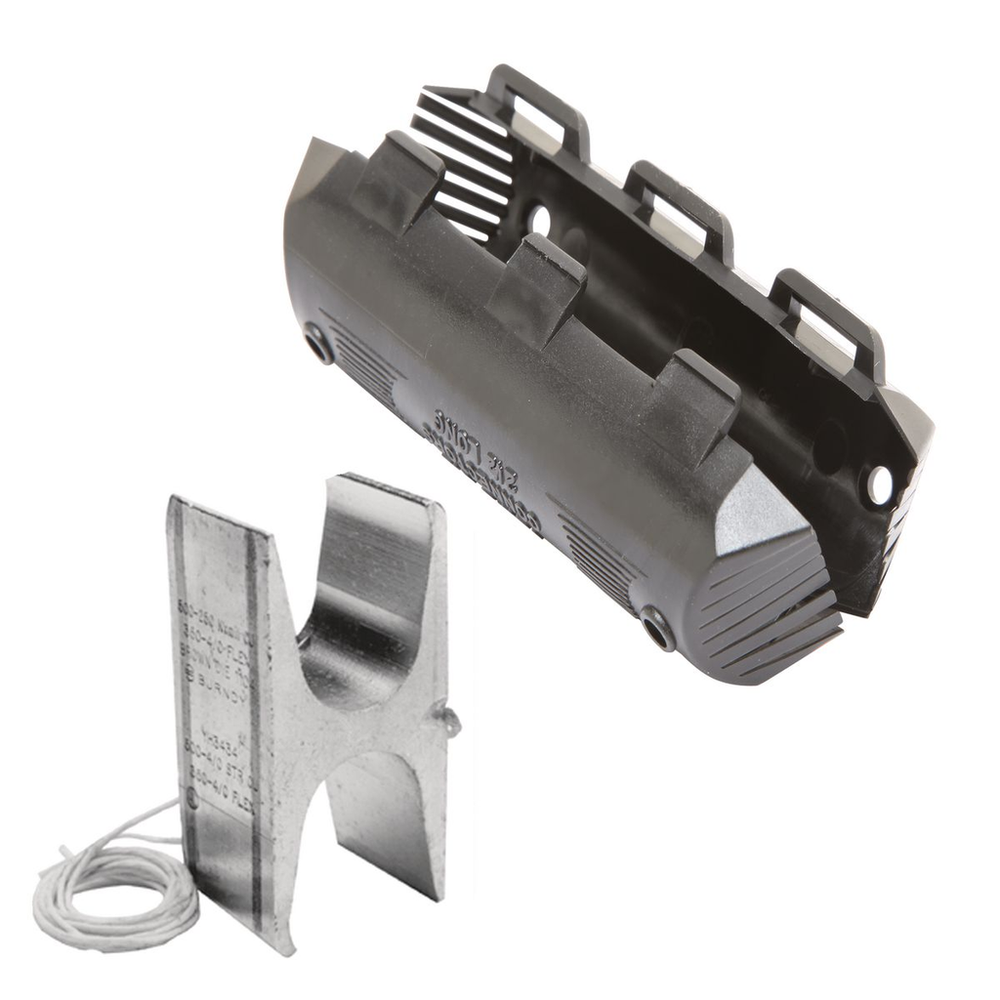

Copper Compression H Tap, Tin Plated, Accommoding the following wire sizes - Run (Main): 1000 KCMIL-750 KCMIL Class B,C, 777 KCMIL-535 KCMIL DLO, 750-500 KCMIL Class I, Tap 1: 250 KCMIL-2 AWG Class B,C, 4/0 AWG-2 AWG Class I, DLO, kitted with black cover. See sale drawing for metric wire size accommodatesCopper Compression H Tap, 1000 KCMIL-750 KCMIL (Main), 250 KCMIL-2 AWG (Tap), Tin Plated
Burndy YH4429WC is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- UL Recognized
- No
Specifications
- Application
- Wire Tap
- Base Unit of Measure
- EA
- BOX SIZE
- 6.750x9.688x7.753 (in)
- Carton - Gross Weight per Pack
- 4.750 lb.
- Carton - Number of Sub Packs
- 5
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810051054
- Carton - Total Units
- 5
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810051055
- Certification Agency
- Proposition 65
- Class Code
- B55
- Color Code
- Yellow
- Conductor - Copper Flex G Run
- 500;600;700
- Conductor - Copper Flex G Tap
- 2;1;1/0;2/0;3/0;4/0
- Conductor - Copper Flex H Tap
- 2;1;1/0;2/0;3/0;4/0
- Conductor - Copper Flex I Run
- 750 KCMIL-500 KCMIL
- Conductor - Copper Flex I Tap
- 2;1;1/0;2/0;3/0;4/0
- Conductor - Copper Flex I Tap Range
- 4/0 AWG-2 AWG
- Conductor - Copper Flex K Run
- 500;600;700
- Conductor - Copper Flex K Tap
- 2;1;1/0;2/0;3/0;4/0
- Conductor - Copper Flex M Run
- 500;600;700
- Conductor - Copper Flex M Tap
- 2;1;1/0;2/0;3/0;4/0
- Conductor - Copper Str Run
- 700;750;800;850;900;1000
- Conductor - Copper Str Run Range
- 1000 KCMIL-750 KCMIL
- Conductor - Copper Str Tap
- 2;1;1/0;2/0;3/0;4/0;250
- Conductor - Copper Str Tap Range
- 250 KCMIL-2 AWG
- Conductor - Material
- COPPER
- Conductor Type
- CODE/FLEX
- Connector Type
- H-TAP W/BLK COVER
- Country of Origin
- US
- Description - Slang
- H TAP WITH CF-FR COVER
- Die Index
- KR
- Dimension - Length Overall inch
- 1.00 in
- Dimension - L Length Overall mm
- 25 mm
- Dimension - Strip Length inch
- 1-3/8
- Dimension - Width inch
- 3.32 in
- Finish Type
- Tin-Plated
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908040
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL 486A-486B
- Lead Time
- 12 wk
- Material
- COPPER
- Package - GTIN - Package
- 30781810051055
- Package Quantity
- 5 EA
- Package - Total Units
- 5 EA
- Package Weight
- 0.000 lb.
- Pallet - GTIN - Package
- 70781810051053
- Pallet Height
- 46.250 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 729.000 lb.
- Pallet Width
- 40.000 in
- Plated
- Y
- Plating Type
- Tin - Electro Plated
- Product Type
- RUN/TAP
- Standard Package Quantity
- 5
- Standards - RoHS Compliance Status
- CM
- Sub Class Code
- B55BI2F
- Temperature Rating
- 194
- Trade Name
- CRIMPIT™
- Type
- Compression Taps
- UL Listed
- Yes
- Voltage - Maximum
- 35000
- Voltage Rating
- 35 kV
