Description

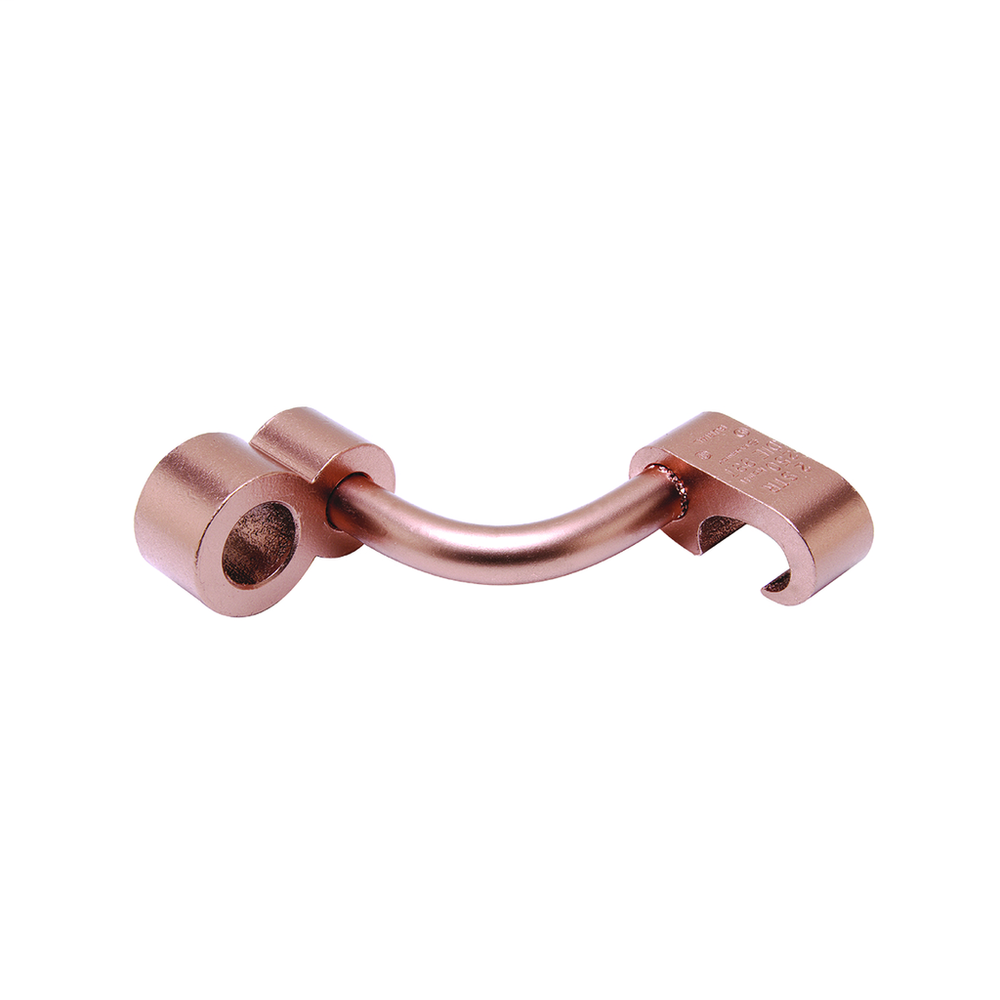

Copper Compression Connector, Ground Rod to Grid, 2 AWG (Str) to 250 kcmil, 3/4" Ground Rod.Compression YGLR29C34
Burndy YGLR29C34 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - cULus
- No
- Certification - ETL
- No
- Certification - UL Listed Direct Burial
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
- UL Listed
- Yes
Conductor Related
- Conductor - Copper Str Size A
- 2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
- Conductor - Copper Str Size A Range
- 2 AWG-250 kcmil
- Conductor - Rebar Tap
- 5;6
- Conductor - Rod Size B
- 3/4 in
- Conductor - Rod Size B Range
- 3/4 in
Dimensions
- Dimension - B Length fraction
- 3/4 in
- Dimension - B Length inch
- 0.75 in
- Dimension - D inch
- 0.50 in
- Dimension - Ground Rod Size
- 3/4
- Dimension - Length BB inch
- 0.88 in
- Dimension - Length Overall inch
- 2.63 in
- Dimension - L Length Overall mm
- 67 mm
General
- Application
- For Direct Burial In Earth And Concrete
- Connector Type
- Tap
- Die Index
- 997
- Die Index - Element A
- 997
- Die Index - Element B
- 1011
- Material
- Copper
- Oxide Inhibitor Type
- Penetrox E
- Physical Attribute - Number of Crimps Required
- 1
- Plated
- N
- Plating Type
- Unplated
- Precrimp Die
- UPRECRIMP34
- Prefilled Oxide Inhibitor
- Y
- Sub Brand
- GRIDLOK
- Trade Name
- GRIDLOK™
- Type
- Taps
- UPC
- 781810220825
- UPC 12 Digit
- 7818102208255
Logistics
- Minimum Pack Quantity
- 1
