Description

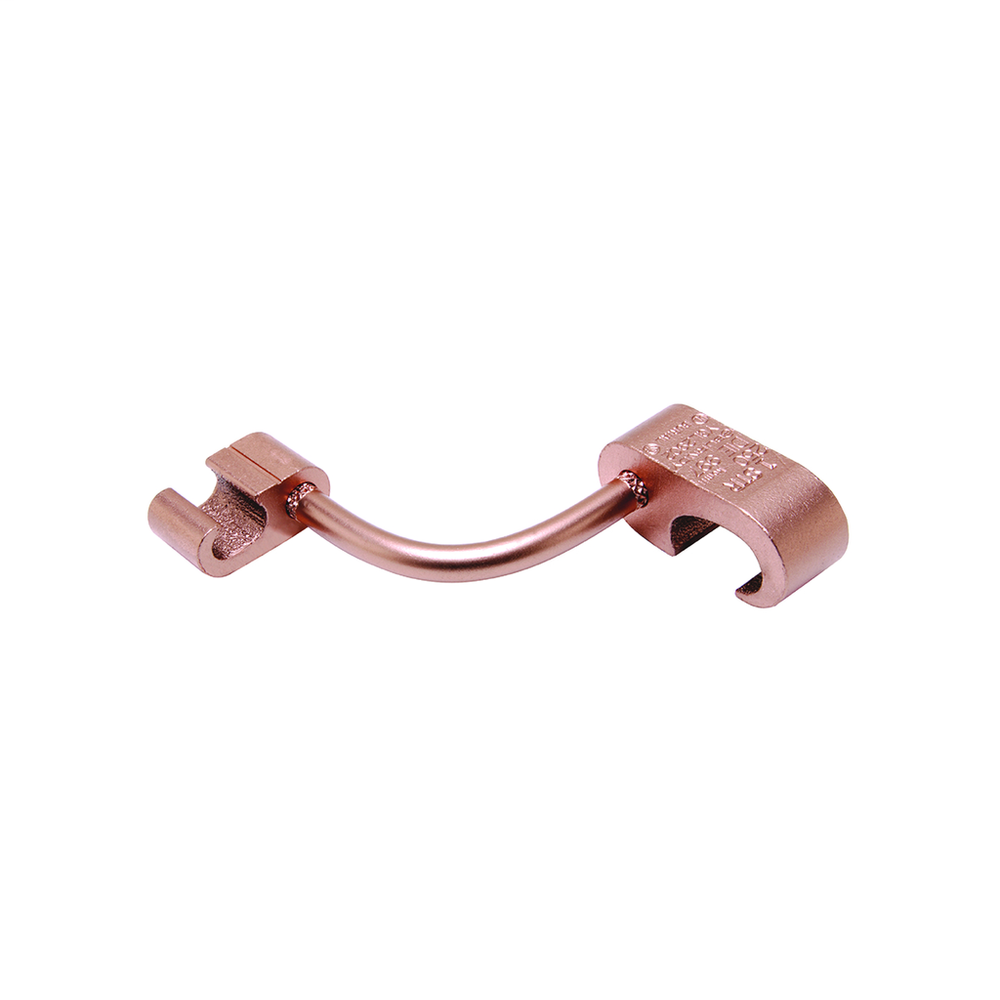

Copper Compression Cross Grid Connector, 1 AWG (Str.) - 250 kcmil or 1/2" - 5/8" Ground Rod or # 3 - 4 Rebar, 6 AWG (Sol) - 2 AWG (Str.).Compression YGL29C2
Burndy YGL29C2 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - cULus
- No
- Certification - ETL
- No
- Certification - UL Listed Direct Burial
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
- UL Listed
- Yes
Conductor Related
- Conductor - Copper Solid Size A
- 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
- Conductor - Copper Solid Size A Range
- 6 AWG-2 AWG
- Conductor - Copper Solid Size B
- 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
- Conductor - Copper Solid Size B Range
- 6 AWG-2 AWG
- Conductor - Copper Str Size A
- 1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
- Conductor - Copper Str Size A Range
- 1 AWG-250 kcmil
- Conductor - Copper Str Size B
- 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
- Conductor - Copper Str Size B Range
- 6 AWG-2 AWG
- Conductor - Rebar Size A
- 3 ;4
- Conductor - Rebar Size A Range
- 3 -4
- Conductor - Rod Size A
- 1/2 in;5/8 in
- Conductor - Rod Size A Range
- 1/2 in-5/8 in
Dimensions
- Dimension - B Length fraction
- 3/4 in
- Dimension - B Length inch
- 0.75 in
- Dimension - D inch
- 0.31 in
- Dimension - Length BB inch
- 0.75 in
- Dimension - Length Overall inch
- 2.50 in
- Dimension - L Length Overall mm
- 64 mm
- Dimension - Pad Width inch
- 1.66 in
General
- Application
- For Direct Burial In Earth And Concrete
- Connector Type
- Tap
- Die Index
- 997
- Material
- Copper
- Oxide Inhibitor Type
- Penetrox E
- Plated
- N
- Plating Type
- Unplated
- Prefilled Oxide Inhibitor
- Y
- Sub Brand
- HYGRID
- Trade Name
- HYGRID™
- Type
- Taps
- UPC
- 781810220016
- UPC 12 Digit
- 7818102200166
Logistics
- Minimum Pack Quantity
- 1
