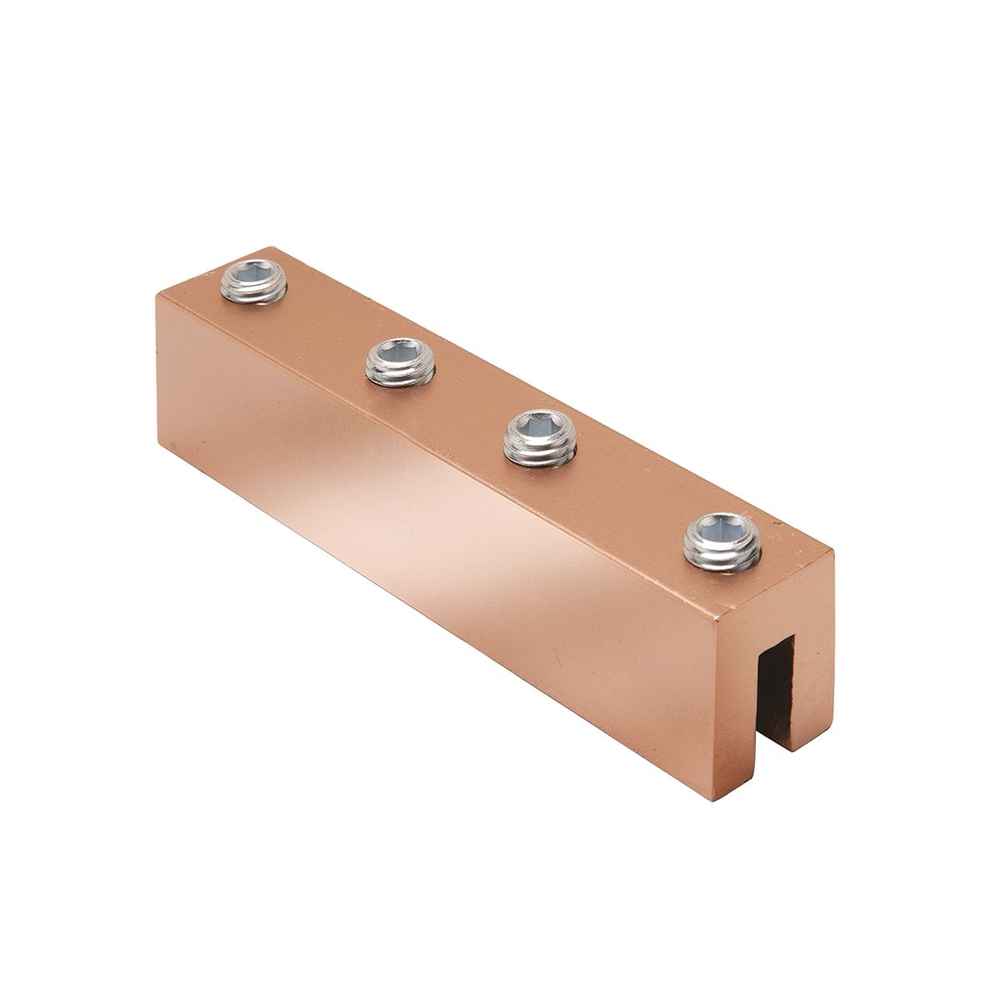

Burndy YGIBW286132N
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
GROUNDLINK™ Connector for Structural Steel Angled (Type YGIBS) or Parallel Beam (Type YGIBW); Accommodates: #2 - 4/0 AWG; 3" Length; I-Beam Flange Thickness: 0.550" - 0.613".GROUNDLINK™ Connector for Structural Steel Angled (Type YGIBS) or Parallel Beam (Type YGIBW)
Burndy YGIBW286132N is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Listed Direct Burial
- Yes
- UL Recognized
- No
Specifications
- Application
- For Direct Burial Cables
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 4.625x4.313x4.313 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 6.060 lb.
- Carton - Number of Sub Packs
- 6
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810039403
- Carton - Total Units
- 6
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810039404
- Certification Agency
- Proposition 65
- Class Code
- B42
- Conductor - Copper Str Size
- 2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG
- Conductor - Copper Str Size Range
- 2 AWG-4/0 AWG
- Conductor Type
- CU C Str-Size
- Connector Type
- Tap
- Country of Origin
- US
- Description - Invoice
- .613 WIDE FLNG, 2-4/0
- Dimension - B Length fraction
- 3 in
- Dimension - B Length inch
- 3.00 in
- Dimension - I Beam Thickness inch
- 0.550" - 0.613"
- Dimension - I Beam Thickness Range inch
- 0.501;0.525;0.550;0.562
- Dimension - Length Overall inch
- 3.00 in
- Dimension - L Length Overall mm
- 76 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1.13 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908040
- I Beam Style
- Wide Flange Beam (Flange Parallel)
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL467;IEEE 837
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 6.06 lb.
- Package - GTIN - Package
- 30781810039404
- Package Height
- 4 in
- Package Length
- 4 in
- Package - Number of Sub Packs
- 6
- Package - Pack Description
- Package
- Package Quantity
- 6 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810039403
- Package - Total Units
- 6 EA
- Package Weight
- 6.06 lb.
- Package Width
- 4 in
- Pallet - GTIN - Package
- 70781810039402
- Pallet Height
- 47.375 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1844.820 lb.
- Pallet Width
- 40.000 in
- Physical Attribute - Number of Tapped Holes
- 2
- Plated
- N
- Plating Type
- Unplated
- Product Type
- Compression
- Special Features
- Features: An Irreversible Compression Ground Connection Which Allows Attachment To A Structural Steel Standard (Angled) Or Wide Flange (Parallel) Beam, Installed With A Required 5-Piece Die Set, Catalog PIBEAMKIT Or UIBEAMKIT, Die Index 1105, GROUNDLINK Connectors Are Made Of High-Conductivity Wrought Copper And Come Pre-Filled With PENETROX E Compound And Strip Sealed, Order Terminal Mounting Hardware Separately, Mounting Hardware Order Separately: TMHG-42, Suggested Compression Terminal: YGHA2C-2N, I Beam Thickness Range: 0.501 - 0.562 IN, Length: 3 IN, Terminal Pad Thickness: 0.26 - 0.3 IN, I Beam Style: Wide Flange Beam (Flange Parallel), Die Index: 1105 Element A
- Standard
- UL467;IEEE 837
- Standard Package Quantity
- 6
- Standards - Industry Standards Met
- UL467;IEEE 837
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- N - Non-stock
- Sub Brand
- HYGROUND, GROUNDLINK
- Sub Class Code
- B42BE8F
- Trade Name
- GROUNDLINK™
- Type
- Taps
- UL Listed
- Yes
- Width
- 1.13 in
