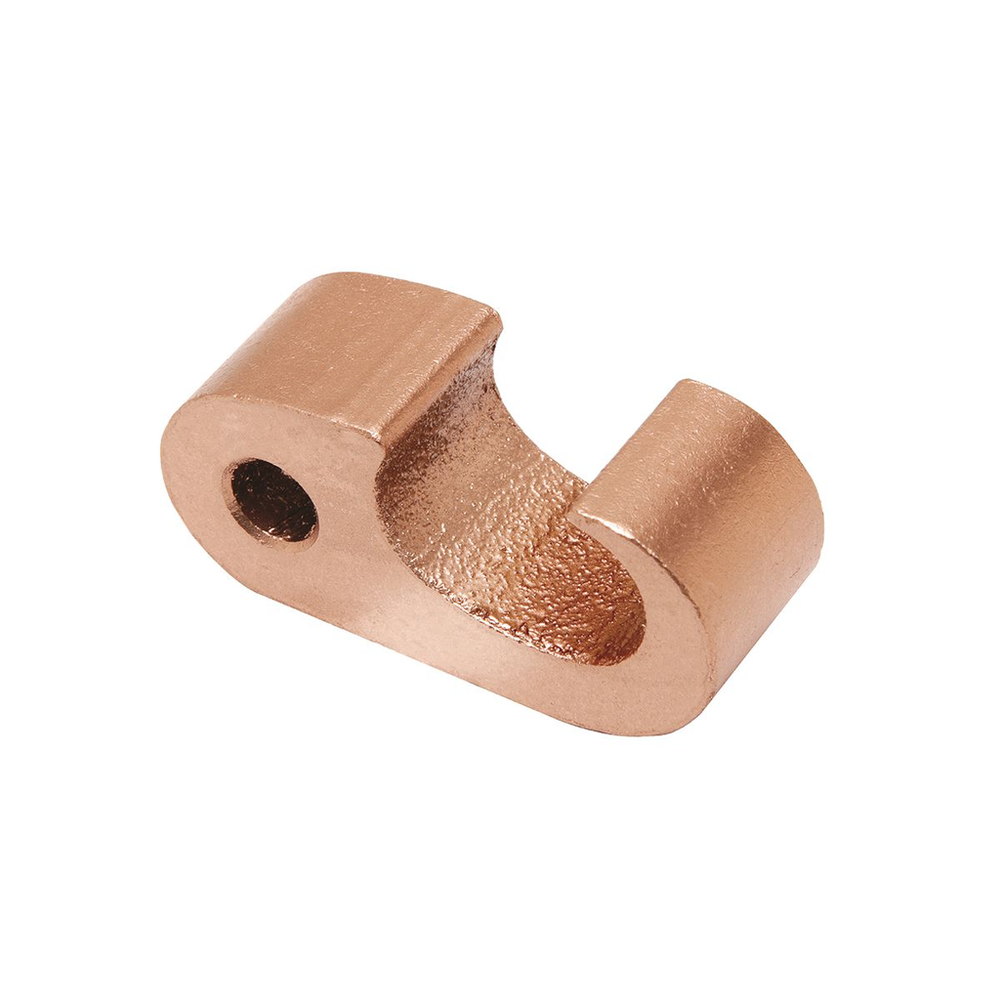

Burndy YGHP58C2W2

Certifications

• CSA Approved
  • Yes
• cULus
  • No
• ETL
  • No
• EU RoHS Indicator
  • Yes
• UL Listed Direct Burial
  • Yes
• UL Recognized
  • No

Specifications

• Application
  • For Ground Rod, Direct Burial In Earth And Concrete
• ARRA Compliant
  • Yes
• Base Unit of Measure
  • EA
• BOX SIZE
  • 5.125x6.438x4.875 (in)
• Buy American Compliant
  • Yes
• Carton - Gross Weight per Pack
  • 6.000 lb.
• Carton - Number of Sub Packs
  • 25
• Carton - Pack Description
  • Carton
• Carton - SCC-14 Next Lower Level Sub Pack
  • 00781810002186
• Carton - Total Units
  • 25
• Case - SCC-14 Next Lower Level Sub Pack
  • 30781810002187
• Certification Agency
  • Proposition 65
• Class Code
  • B42
• Conductor - Copper Solid Run
  • 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
• Conductor - Copper Solid Run Range
  • 6 AWG-2 AWG
• Conductor - Copper Solid Tap
  • 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
• Conductor - Copper Solid Tap Range
  • 6 AWG-2 AWG
• Conductor - Rod Tap
  • 1/2 in;5/8 in
• Conductor - Rod Tap Range
  • 1/2 in-5/8 in
• Connector Type
  • Tap
• Country of Origin
  • US
• Description - Invoice
  • 1/2-5/8 COMP GRND ROD CO
• Die Index
  • 997
• Dimension - B Length fraction
  • 1-9/10 in
• Dimension - B Length inch
  • 1.90 in
• Dimension - Height inch
  • 1.90 in
• Dimension - Pad Width inch
  • 0.75 in
• Dimension - Width inch
  • 0.94 in
• Dimension - Width mm
  • 24 mm
• Each - Number of Sub Packs
  • 1
• Each - Pack Description
  • Each
• Each - Width
  • 0.94 in
• Freight Class Code
  • 16027000
• Harmonization Code
  • 8535908040
• Image Actual Or Representative
  • A
• Industry Standard(s)
  • Direct Burial
• Lead Time
  • 11 wk
• Lowest Level UOM
  • Each
• Material
  • Copper
• MSDS Flag
  • No
• Order Multiple
  • 1 EA
• Oxide Inhibitor Type
  • Penetrox E
• Package - Gross Weight per Pack
  • 6 lb.
• Package - GTIN - Package
  • 30781810002187
• Package Height
  • 4.50 in
• Package Length
  • 6.13 in
• Package - Number of Sub Packs
  • 25
• Package - Pack Description
  • Package
• Package Quantity
  • 25 EA
• Package - SCC-14 Next Lower Level Sub Pack
  • 00781810002186
• Package - Total Units
  • 25 EA
• Package Weight
  • 6 lb.
• Package Width
  • 4.56 in
• Pallet - GTIN - Package
  • 70781810002185
• Pallet Height
  • 46.750 in
• Pallet Length
  • 48.000 in
• Pallet Weight
  • 2133.000 lb.
• Pallet Width
  • 40.000 in
• Physical Attribute - Number of Crimps Required
  • 1
• Plated
  • N
• Plating Type
  • Unplated
• Prefilled Oxide Inhibitor
  • Y
• Product Type
  • Compression
• Special Features
  • Features: Tap (A) Accepts A Continuous Run On Tap Conductor, Tap (B) Accepts A Tap Conductor Only: One Connector Style Can Be Used For Many Applications, Reducing Number Of Connectors In Inventory, Material Is High Conductivity Wrought Copper Extrusion, Identical Material To The Conductor: High-Conductivity Copper Minimizes Resistance And Voltage Drop, Eliminates The Possibility Of Corrosion Due To Dissimiliar Metals, System Engineered Tooling: The Tooling Recommendation Has Been Designed To Ensure A Reliable, Dependable Connection Every Time, The Die Index Number Is Embossed On Conductor After Completion Of Crimp: Faciliates Speedy Inspection Of Installed Connectors To Insure Consistently Reliable And Dependable Connections, Prefilled With PENETROX E And Individually Sealed In Clear Polyethylene Sheet: Ensures The Electrical Integrity Of The Finished Connection By Inhibiting Moisture And Contaminates From Entering The Contact Area, Maintains Long-Term High-Conductivity, UL467 Listed: May Be Used In Direct Burial Or Concrete Embedded Grounding Applications, Provides Quality Assurance To Recognized Industry NEC Standards From An Independent Party, Third Hand Constrains Conductors While Installer Completes Crimp, Included With Each Connector: Simplifies Installation, Reducing Installed Cost, Shape: 6, Die Index: 997 Element A, Ground Rod Size: 1/2 - 5/8 IN, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y750, PAT750 Tool, U997 Die, (1), Y46 Tool, U997 Die With PUADP-1 Adapter, (1)
• Standard
  • Direct Burial
• Standard Package Quantity
  • 25
• Standards - RoHS Compliance Status
  • CM
• Stock Indicator
  • S - Shelf Stock
• Sub Brand
  • HYTAP
• Sub Class Code
  • B42BE5F
• Trade Name
  • HYTAP™
• Type
  • Taps
• UL Listed
  • Yes
• Width
  • 0.94 in
