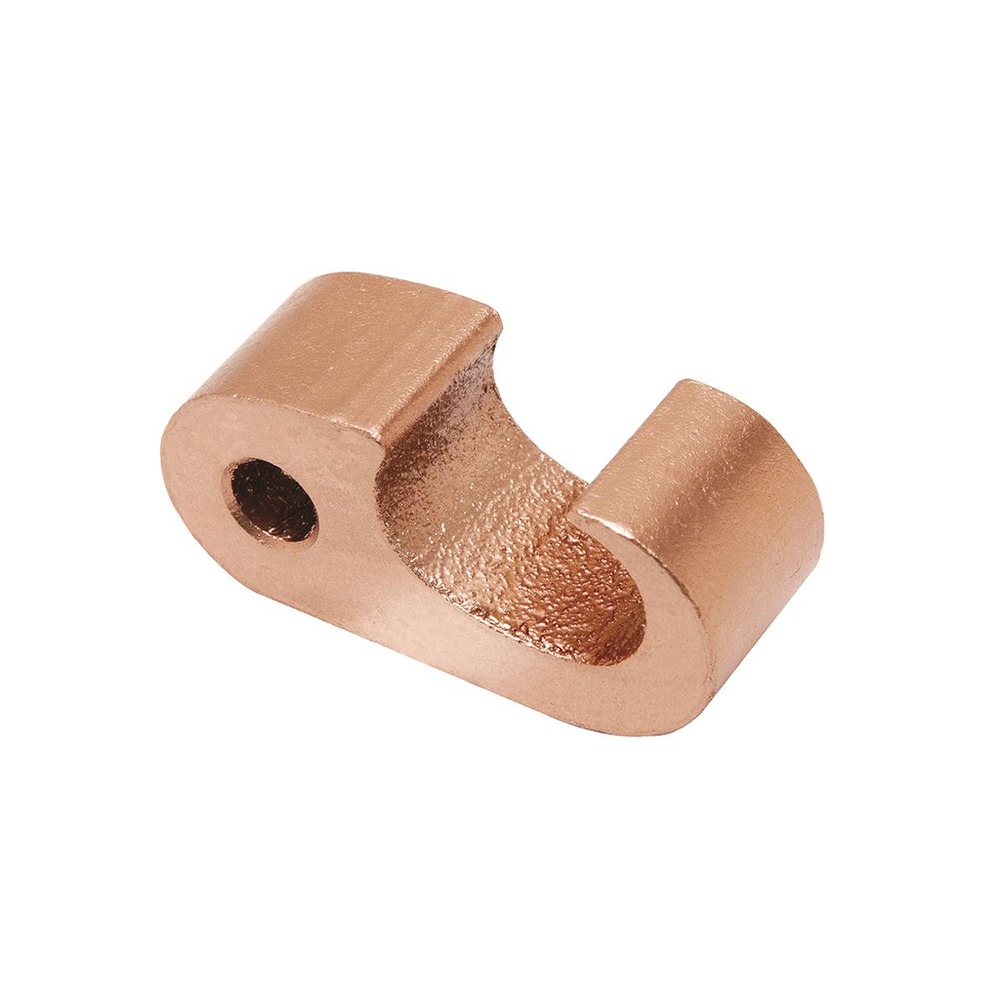

Burndy YGHP29C6W6W
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Cu Compression Ground Rod Connector, #8 Sol - #6 Str, 1/2" - 5/8" Rod Dia.High Strength Copper Irreversible Compression- Cable to cable, Cable to ground rod, Cable to rebar
Burndy YGHP29C6W6W is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Listed Direct Burial
- Yes
- UL Recognized
- No
Specifications
- Application
- For Direct Burial In Earth And Concrete
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 5.125x6.438x4.875 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 6.750 lb.
- Carton - Number of Sub Packs
- 25
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810085295
- Carton - Total Units
- 25
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810085296
- Certification Agency
- Proposition 65
- Class Code
- B42
- Conductor - Copper Solid Tap
- 8 AWG;7 AWG;6 AWG;5 AWG
- Conductor - Copper Solid Tap Range
- 8 AWG-5 AWG
- Conductor - Copper Str Run
- 1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
- Conductor - Copper Str Run Range
- 1/0 -250 kcmil
- Conductor - Copper Str Tap
- 8 AWG;7 AWG;6 AWG;5 AWG
- Conductor - Copper Str Tap Range
- 8 AWG-5 AWG
- Conductor - Rebar Run
- 3 ;4
- Conductor - Rebar Run Range
- 3 -4
- Conductor - Rod Size
- 1/2 in;5/8 in
- Conductor - Rod Size Range
- 1/2 in-5/8 in
- Connector Type
- Tap
- Country of Origin
- US
- Description - Invoice
- TAP CONNECTOR
- Die Index
- 997
- Dimension - B Length fraction
- 3/4 in
- Dimension - B Length inch
- 0.75 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.93 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908060
- Image Actual Or Representative
- A
- Industry Standard(s)
- Direct Burial
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Oxide Inhibitor Type
- Penetrox E
- Package - Gross Weight per Pack
- 6.75 lb.
- Package - GTIN - Package
- 30781810085296
- Package Height
- 4.5 in
- Package Length
- 6.13 in
- Package - Number of Sub Packs
- 25
- Package - Pack Description
- Package
- Package Quantity
- 25 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810085295
- Package - Total Units
- 25 EA
- Package Weight
- 6.75 lb.
- Package Width
- 4.56 in
- Pallet - GTIN - Package
- 70781810085294
- Pallet Height
- 46.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 2002.500 lb.
- Pallet Width
- 40.000 in
- Physical Attribute - Number of Crimps Required
- 1
- Plated
- N
- Plating Type
- Unplated
- Prefilled Oxide Inhibitor
- Y
- Product Type
- Compression
- Special Features
- Features: Irreversible Compression Ground Tap Figure 6 Can Be Used As A Tap Connector Or As A Tap Splice Connector, Four Die Sets And Eight Connectors Can Accommodate A Conductor Range From #8 AWG Solid Through 500 KCMIL Plus 1/2 , 5/8 And 3/4 IN Copper Bonded Ground Rods, UL467 Listed, Acceptable For Direct Burial In Earth And Concrete, Prefilled With PENETROX Compound And Strip Sealed, Ground Rod Size: 1/2 - 5/8 IN, Die Index: 997 Element A, Tools, Die Set Catalog Number, And (number Of Crimps): HYPRESS: Y35, Y39, Y750 Tool, U997 Die, (1), Y45 Tool, U997 Die With PT6515 Adapter, (1), Y46 Tool, U997 Die With PUADP-1 Adapter, (1), PAT750-18V Tool, U997P Polarized Die, (1), Rebar Size: #3 - #4, Conductor Type: Run: Commercial Stranded Copper, Rebar, Ground Rod, Tap: Commercial Stranded Copper, Conductor Size (run - Range): 1/0 AWG - 250 KCMIL, Conductor Size (tap Range): 8 - 6 AWG, Shape: 6
- Standard
- Direct Burial
- Standard Package Quantity
- 25
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- HYTAP
- Sub Class Code
- B42BE5F
- Trade Name
- HYTAP™
- Type
- Taps
- UL Listed
- Yes
- Width
- 0.93 in
