Description

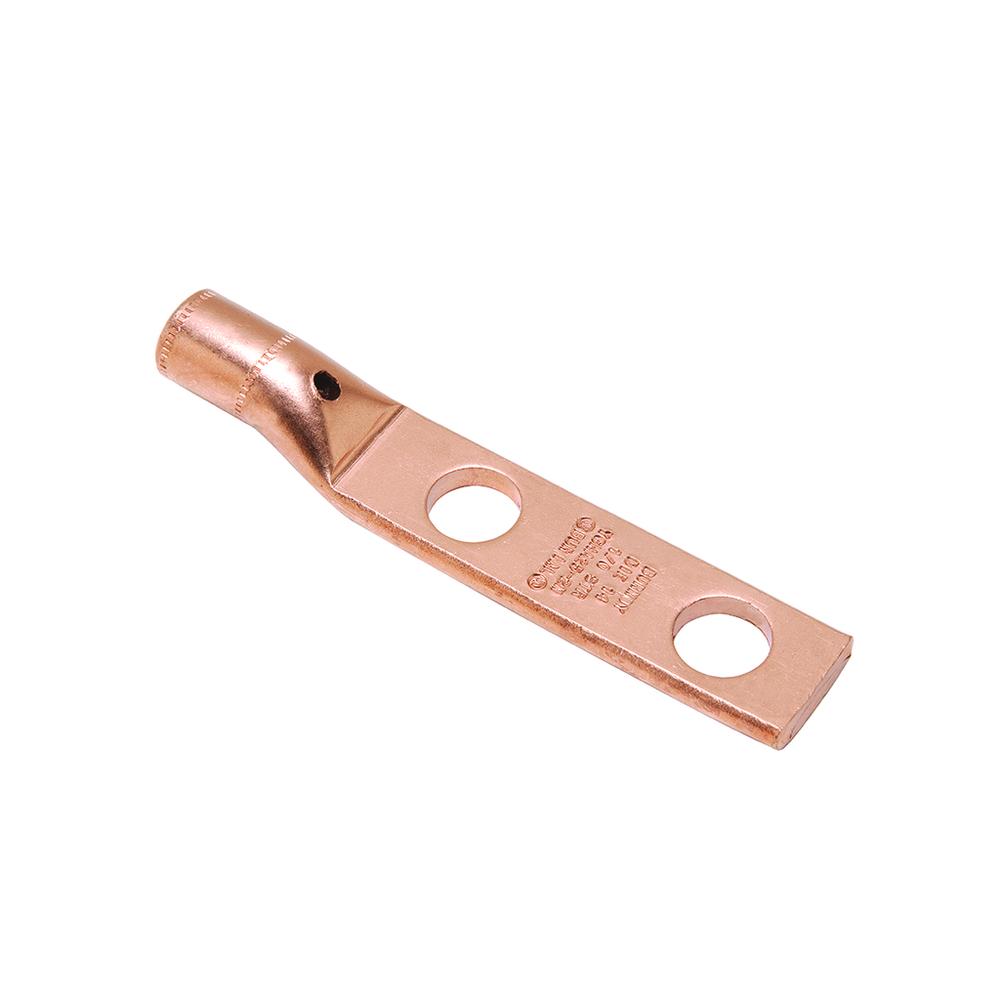

Copper Compression Lug, Heavy Duty, 2 Hole w/ Inspection Probe Hole, 500 kcmil, 1/2" Stud, 1-3/4" Stud Hole Spacing, Short Barrel.Terminals YGHA342N
Burndy YGHA342N is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - cULus
- No
- Certification - ETL
- No
- Certification - UL Listed Direct Burial
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
- UL Listed
- Yes
Conductor Related
- Conductor - Copper Str Size
- 500 kcmil
- Conductor - Copper Str Size Range
- 500 kcmil
Dimensions
- Dimension - B Length fraction
- 1-12/25 in
- Dimension - B Length inch
- 1.48 in
- Dimension - D inch
- 3.00 in
- Dimension - Hole Size inch
- 0.56 in
- Dimension - Hole Size mm
- 14 mm
- Dimension - Length Overall inch
- 5.42 in
- Dimension - L Length Overall mm
- 138 mm
- Dimension - N inch
- 0.63 in
- Dimension - Outside Diameter inch
- 1.24 in
- Dimension - Pad Width inch
- 1.72 in
- Dimension - Stud Size fraction
- 1/2
- Dimension - Stud Size inch
- 1/2
- Dimension - Z inch
- 0.62 in
- Physical Attribute - Tongue Angle
- Straight
General
- Application
- For Direct Burial In Earth Or Concrete, Grounding Applications
- Connector Type
- Terminal
- Die Index
- 22
- Material
- Copper
- Physical Attribute - Number of Crimps Required
- 3
- Plated
- N
- Plating Type
- Unplated
- Sub Brand
- HYLUG
- Trade Name
- HYLUG™
- Type
- Terminals
- UPC
- 781810220399
- UPC 12 Digit
- 7818102203999
Logistics
- Minimum Pack Quantity
- 1
